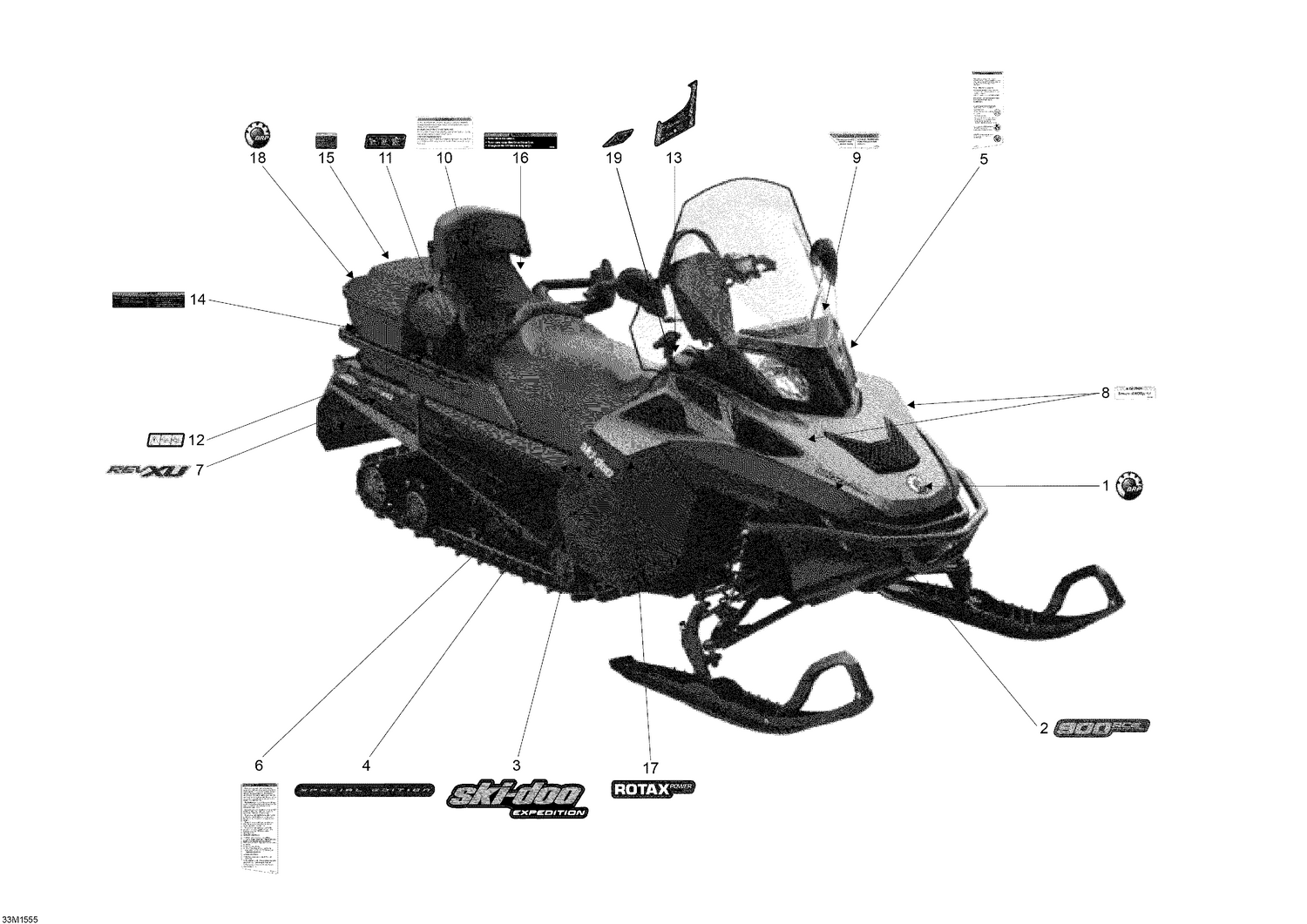

09- Decals _33M1555
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | BRP Logo 68mm This part replaces 219903609. |
| 2 | 516006454 | Hood Decal "900 Ace" |
| 3 | 516005038 | Side Panel Decal, RH |
| 3 | 516005039 | Side Panel Decal, LH |
| 4 | 516005040 | Side Panel Decal |
| 5 | 516004652 | Warning Decal |
| 6 | 516004653 | Warning Decal |
| 7 | 516005891 | DECAL REV XU - Call your local BRP dealership |
| 8 | 516004651 | Caution Label, Air Intake |
| 9 | 516005683 | Security label, drive pulley cover |
| 10 | 516005682 | DECAL WARNING - Call your local BRP dealership |
| 11 | 516006873 | Backseat Handle Decal |
| 12 | 516005111 | Instruction Decal, Back Seat Locking |
| 13 | 516004305 | Instruction Label, Transmission |
| 14 | 516004960 | Rear Security Decal, English |
| 15 | 516004650 | WARNING DECAL - Call your local BRP dealership |
| 16 | 516004961 | Security Decal |
| 17 | 516006331 | Decal ROTAX POWER |
| 18 | 219903947 | BRP Logo 48 mm |
