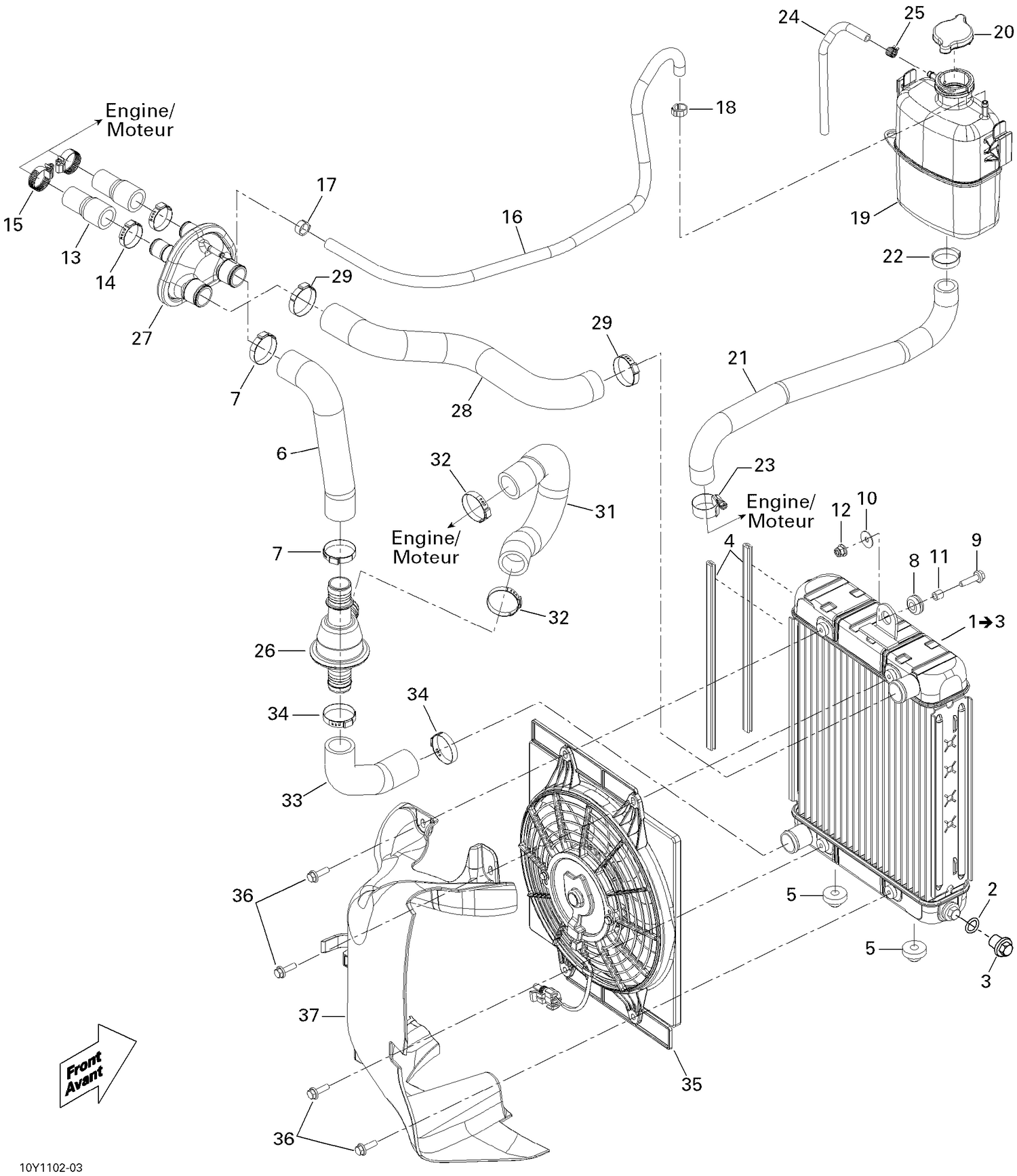

01- Cooling System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 709200217 | O-RING - Call your local BRP dealership |
| 3 | 709200218 | DRAIN PLUG - Call your local BRP dealership |
| 4 | 219704354 | Trim 1000Mm Long |
| 5 | 709200285 | Grommet |
| 6 | 709200215 | HOSE - Call your local BRP dealership |
| 7 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 8 | 709000582 | Grommet This part replaces 293720053. |
| 9 | 207662544 | Hex. Flange Screw M6 X 25 |
| 10 | 224060201 | Flat Washer |
| 11 | 293900105 | Bushing This part replaces 293900045. |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 709200144 | HOSE_WATER PUMP UP FORMED - Call your local BRP dealership |
| 14 | 293650099 | Crimp Clamp |
| 15 | 293650173 | Tridon Gear Clamp |
| 16 | 709200415 | FORMED HOSE - Call your local BRP dealership This part replaces 709200186. |
| 17 | 293650025 | Oetiker Gear Clamp |
| 18 | 293650025 | Oetiker Gear Clamp |
| 19 | 709201323 | Coolant Tank This part replaces 709200163. |
| 20 | 509000187 | Pressure Cap |
| 21 | 709200139 | HOSE - Call your local BRP dealership |
| 22 | 293650141 | Oetiker Clamp |
| 23 | 293650051 | Tridon Gear Clamp |
| 24 | 219704410 | Polyurethane Hose 10000Mm Long |
| 25 | 414554800 | Spring Clamp |
| 26 | 709200384 | Thermostat Housing |
| 27 | 709200151 | Connector |
| 28 | 709200272 | COOLANT FORMED HOSE - Call your local BRP dealership |
| 29 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 31 | 709200259 | HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership |
| 32 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 33 | 709200185 | HOSE - Call your local BRP dealership |
| 34 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 35 | 509000692 | Fan Ass'y |
| 36 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
