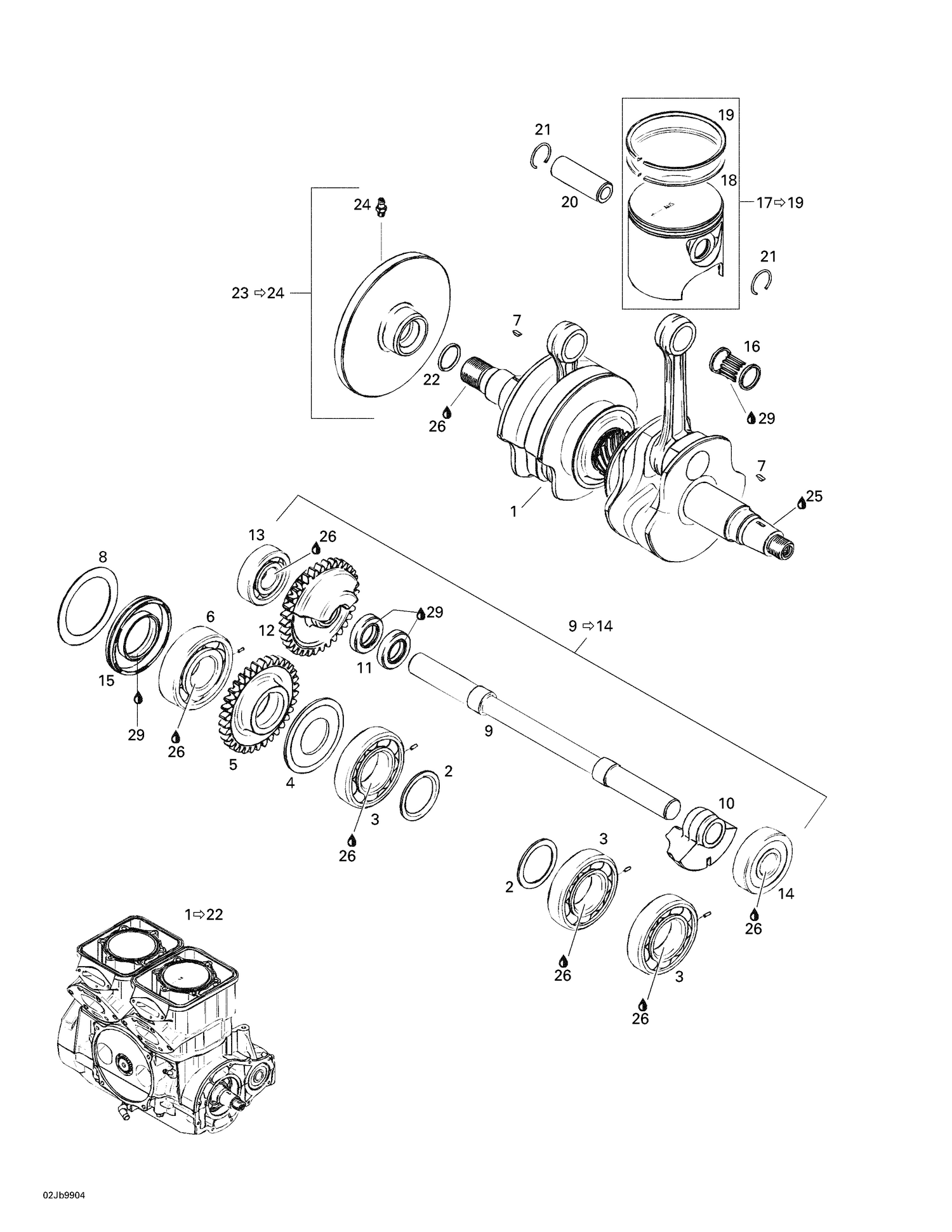

| Ref | Part Number | Description |
|---|
| 1 |
421000100 |
REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership |
| 2 |
290827760 |
Distance Ring |
| 3 |
420832573 |
Ball Bearing This part replaces 290832573. |
| 4 |
290926140 |
Labyrinth Washer |
| 5 |
290834315 |
GEAR 43 TEETH - Call your local BRP dealership |
| 6 |
290932579 |
Ball Bearing <<6306>> |
| 7 |
420246055 |
Woodruff Key |
| 8 |
290926060 |
RETAINING SHIM - Call your local BRP dealership |
| 9 |
Not |
Available As Spare Part - Shaft Balance |
| 10 |
Not |
Available As Spare Part - Mass Balance |
| 11 |
Not |
Available As Spare Part - Seal Oil |
| 12 |
Not |
Available As Spare Part - Gear Balance, 43 Teeth |
| 13 |
290932095 |
Ball Bearing 6304E |
| 14 |
290932098 |
BALL BEARING <<6304>> - Call your local BRP dealership |
| 15 |
290830638 |
OIL SEAL - Call your local BRP dealership |
| 16 |
420832421 |
NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420. |
| 18 |
290815080 |
Rectangular Ring 82.00 mm |
| 19 |
290815100 |
Semi-Trapez Ring 82.00 mm |
| 20 |
420916404 |
Piston Pin This part replaces 290916401. |
| 21 |
420845100 |
CIRCLIP - Call your local BRP dealership |
| 22 |
420430782 |
O-Ring |
| 24 |
290499113 |
GREASE FITTING - Call your local BRP dealership |
| 25 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 26 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 27 |
290886390 |
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 28 |
290886396 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 290815081 |
Rectangular |
Ring 82.25 mm 290815081 |
| 290815101 |
Semi-Trapez |
Ring 82.25 mm 290815101 |
