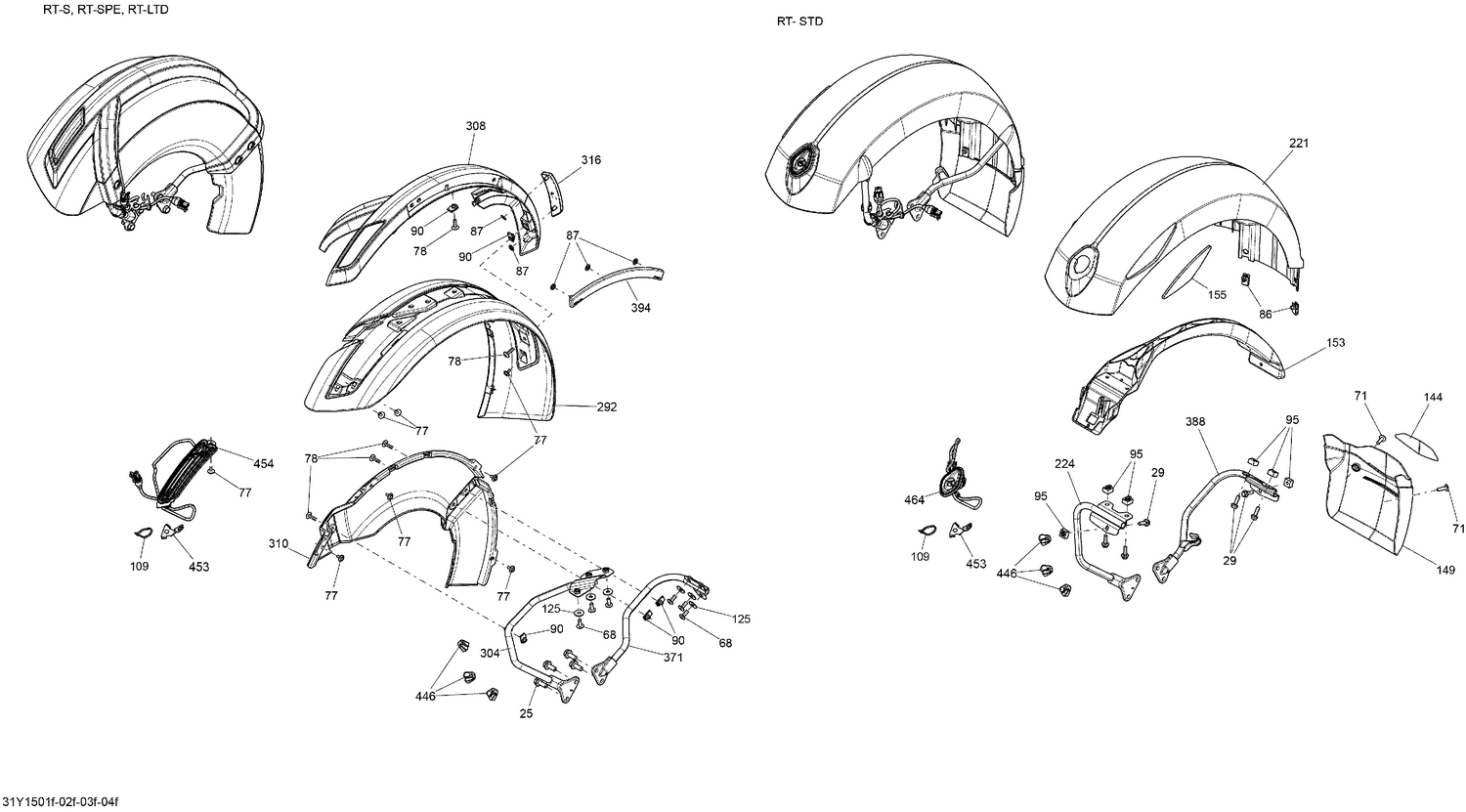

| Ref | Part Number | Description |
|---|
| 25 |
207582034 |
Hex. Flange Screw, Scotch Grip |
| 29 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 68 |
XXX |
Not Available As Spare Parts |
| 71 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 77 |
XXX |
Not Available As Spare Parts |
| 78 |
XXX |
Not Available As Spare Parts |
| 86 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 87 |
XXX |
Not Available As Spare Parts |
| 90 |
XXX |
Not Available As Spare Parts |
| 95 |
269500725 |
M6 Nut Housing Ass'y |
| 109 |
293750001 |
Tie Wrap 94 mm |
| 125 |
XXX |
Not Available As Spare Parts |
| 144 |
704901160 |
Reflective Stripe |
| 149 |
705001767 |
LH Mudguard |
| 149 |
705001768 |
RH Mudguard |
| 153 |
705002389 |
Central Front Fender Support |
| 155 |
705002423 |
Amber, Lateral Reflector |
| 224 |
705010102 |
LH Painted Fender Front Support This part replaces 705003456. |
| 224 |
705010103 |
RH Painted Fender Front Support This part replaces 705003457. |
| 292 |
XXX |
Not Available As Spare Parts |
| 304 |
XXX |
Not Available As Spare Parts |
| 308 |
XXX |
Not Available As Spare Parts |
| 310 |
XXX |
Not Available As Spare Parts |
| 316 |
XXX |
Not Available As Spare Parts |
| 371 |
XXX |
Not Available As Spare Parts |
| 388 |
705010740 |
LH Rear Fender Support This part replaces 705008122. |
| 388 |
705010741 |
Right Fender Rear Support This part replaces 705008123. |
| 394 |
XXX |
Not Available As Spare Parts |
| 446 |
710001452 |
WIRE BRACKET - Call your local BRP dealership |
| 453 |
710002018 |
RH WIRE SUPPORT - Call your local BRP dealership |
| 453 |
710002019 |
LH WIRE SUPPORT - Call your local BRP dealership |
| 454 |
XXX |
Not Available As Spare Parts |
