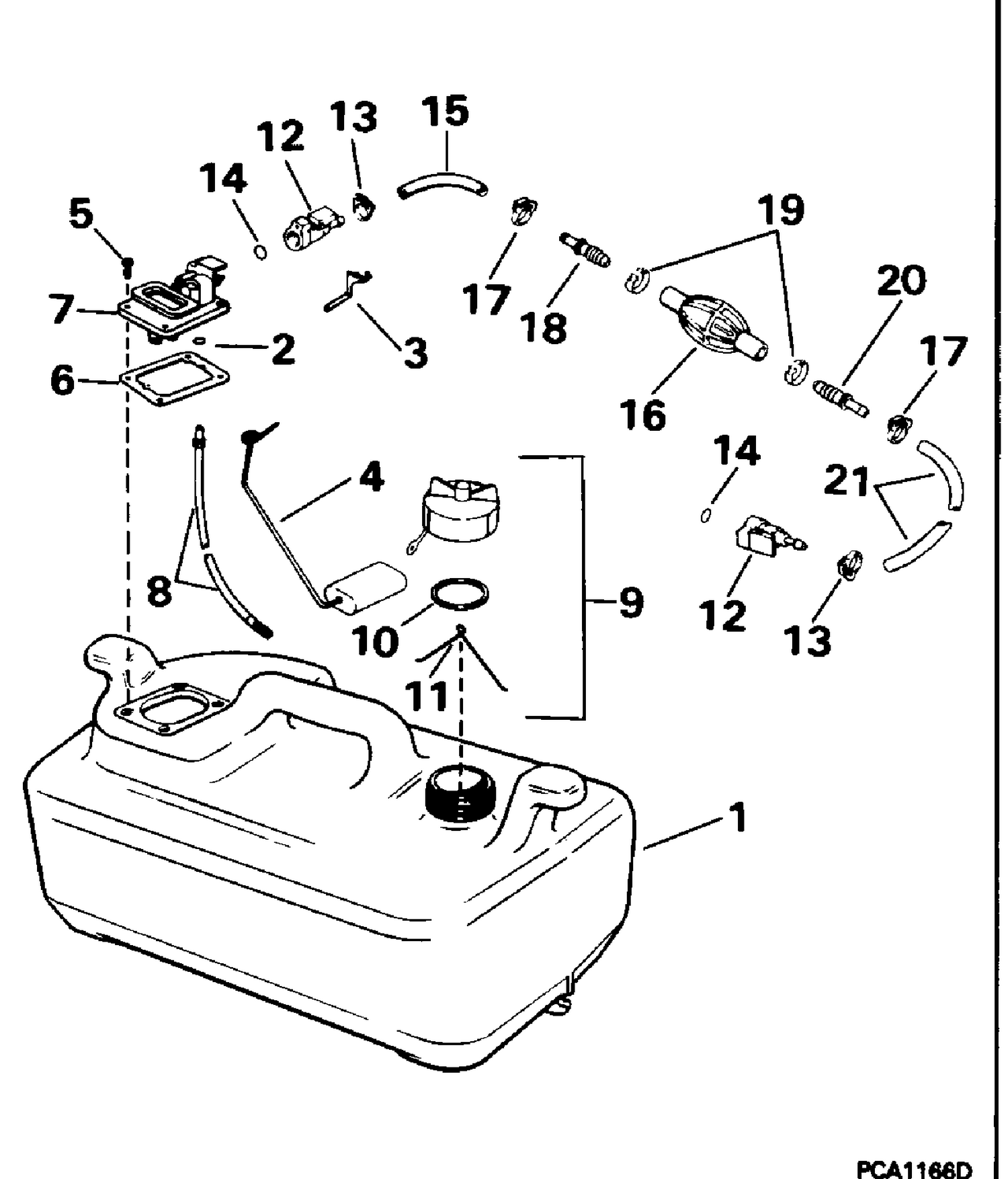

FUEL TANK P/N 176208
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5008623 | FUEL TANK This part replaces 0176208. |
| 3 | 0125522 | RETAINER, Indicator & tube |
| 4 | 0176283 | FLOAT & INDICATOR |
| 5 | 0125529 | VIS, montage du sac à outils |
| 6 | 0125530 | GASKET, Housing to tank |
| 7 | 0174791 | HOUSING, Valve & indicator |
| 8 | 0434182 | TUBE & SCREEN |
| 9 | 0174793 | CAP Gas |
| 15 | HOSE, | Short, 19 1/2 in. (495mm) |
| 0398549 | 5008609 | FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0398549. |
