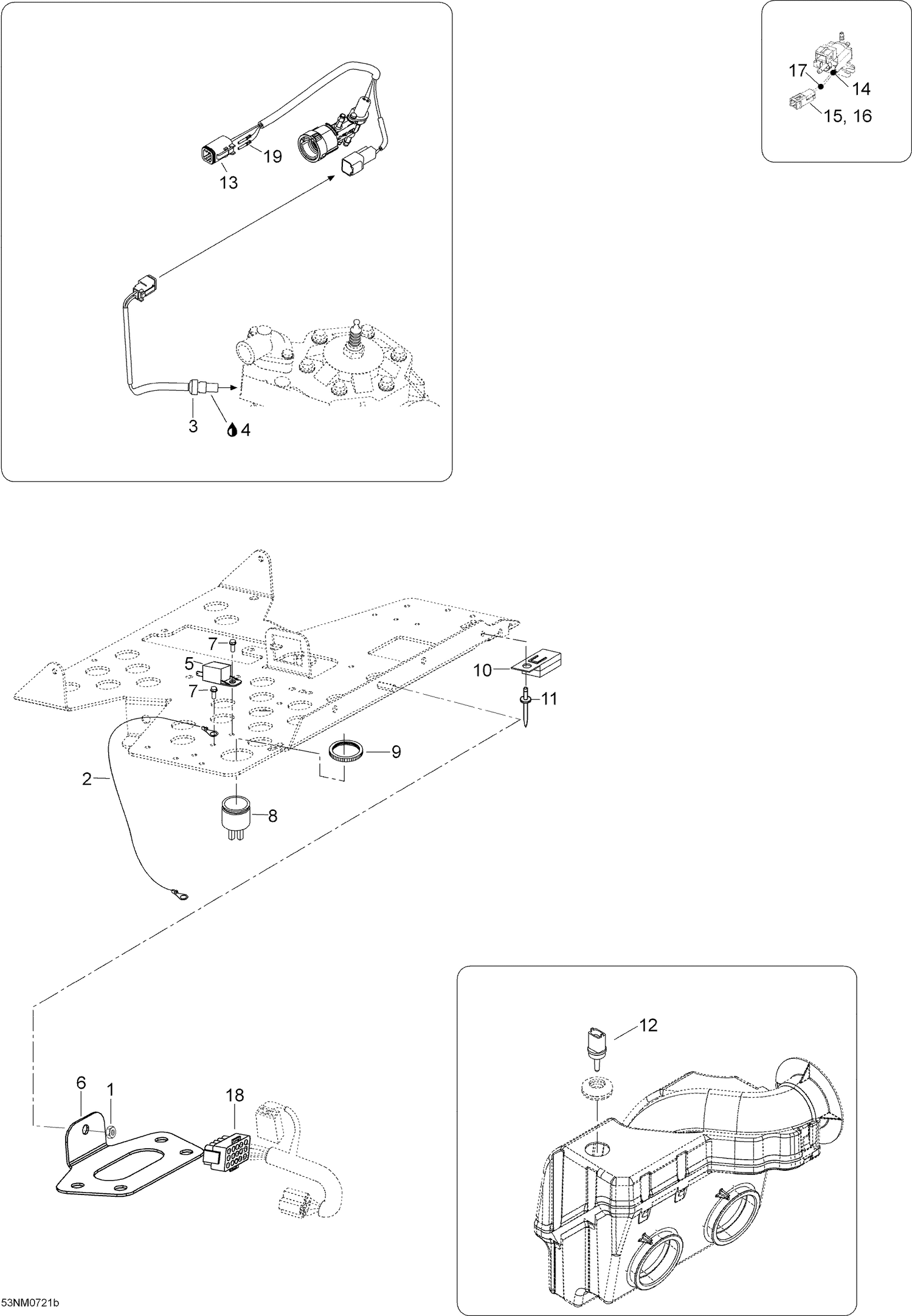

| Ref | Part Number | Description |
|---|
| 1 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 2 |
605153857 |
Ground wire |
| 3 |
515177835 |
Capteur Temp. *Sensor-Temp. This part replaces 515176043. |
| 4 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 5 |
710010053 |
RELAY This part replaces 410113200. |
| 6 |
605454122 |
Support |
| 7 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 8 |
515176035 |
HORN - Call your local BRP dealership |
| 9 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 10 |
42272 |
Support, fuse housing |
| 11 |
36491 |
Rivet |
| 12 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 13 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 14 |
515176256 |
Heater |
| 15 |
515175654 |
Connector housing |
| 16 |
515175232 |
Connector |
| 17 |
42066 |
Tubing |
| 18 |
42617 |
Male connector housing (15 circuit) |
