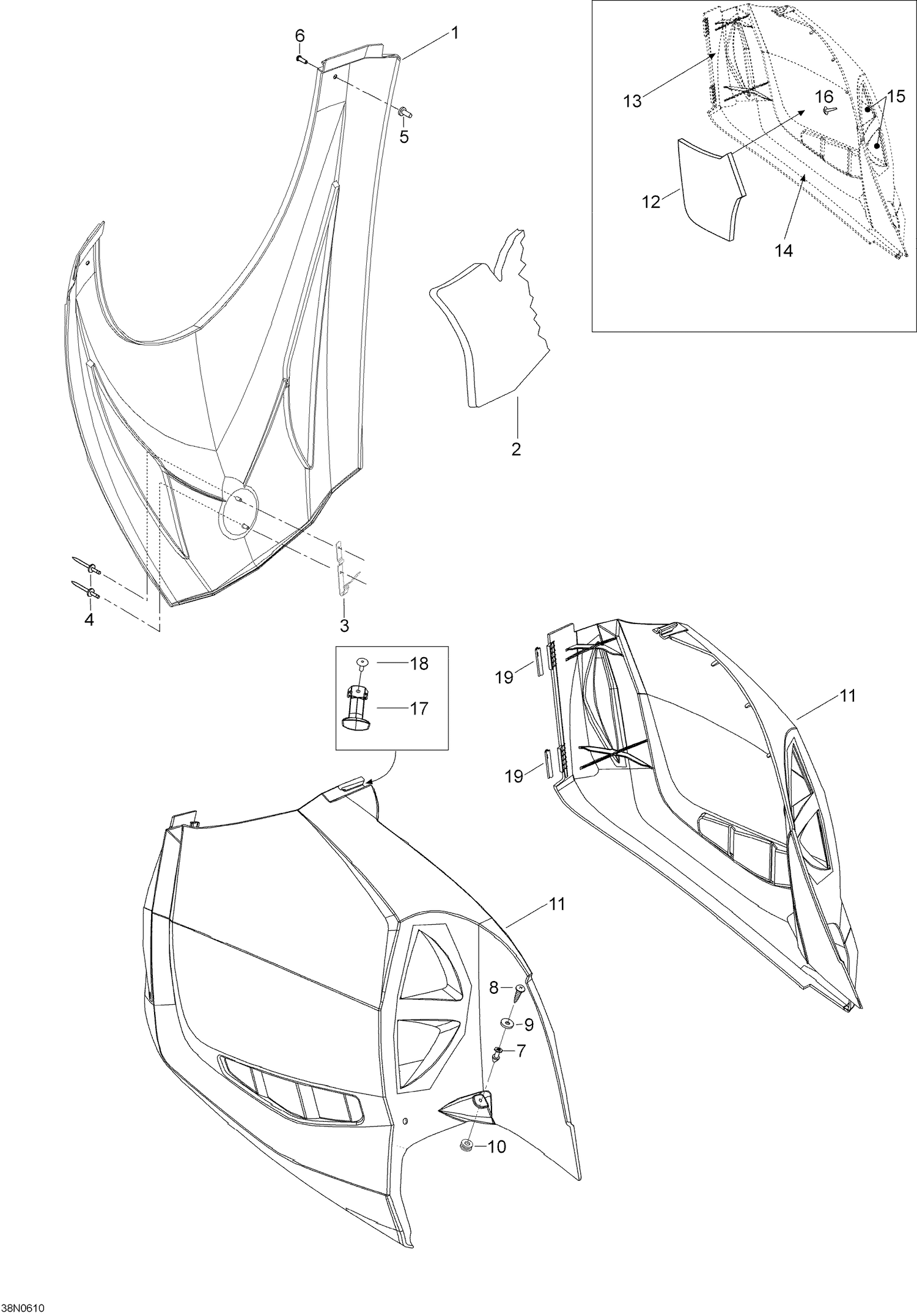

09- Hood
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605252248 | Foam |
| 3 | 605353185 | Bracket |
| 4 | 36004 | Rivet |
| 5 | 36015 | Rivet nut M5 |
| 6 | 40072 | Screw M5 x 16 |
| 7 | 517245800 | Knob |
| 8 | 208651481 | PHILLIPS SCREW M5 X 14 - Call your local BRP dealership |
| 9 | 250200025 | Washer M5 |
| 10 | 517307161 | Grommet This part replaces 517302841. |
| 12 | 605251679 | R.H. Foam |
| 12 | 605253318 | L.H. Foam |
| 13 | 605252369 | R.H. Reflection sheet |
| 14 | 605252370 | L.H. Reflection sheet |
| 15 | 605352689 | R.H. Grill |
| 15 | 605352690 | L.H. Grill |
| 16 | 40887 | Wronic-screw 4,2 x 9,5 |
| 17 | 570027100 | Latch |
| 18 | 36037 | Rivet |
