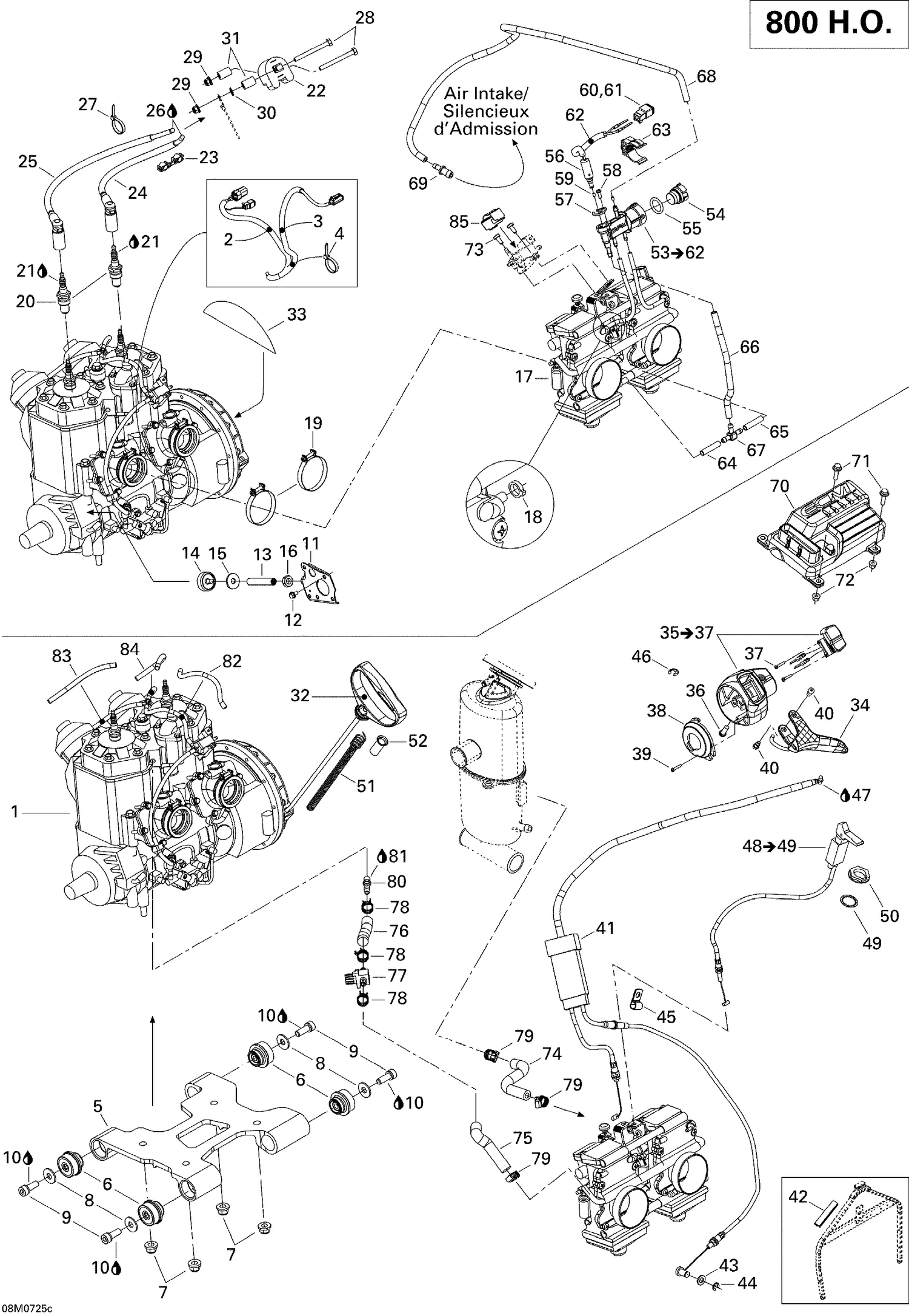

| Ref | Part Number | Description |
|---|
| 1 |
400702633 |
Engine 793 H.O. |
| 2 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 3 |
219704407 |
Tubing 10 MM 1000MM Long |
| 4 |
293750002 |
Tie Wrap 142 mm |
| 5 |
512060051 |
ENGINE SUPPORT - Call your local BRP dealership |
| 6 |
512059691 |
Rubber Mount |
| 7 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 8 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 9 |
235202544 |
TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership |
| 10 |
413703400 |
Sealant LOCTITE 222MS - Call your local BRP dealership |
| 11 |
512059840 |
PLATE - Call your local BRP dealership |
| 12 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 13 |
250500007 |
STOPPER SCREW - Call your local BRP dealership |
| 14 |
512059610 |
STOPPER - Call your local BRP dealership |
| 15 |
512059057 |
WASHER - Call your local BRP dealership |
| 16 |
232170411 |
Hex. Jam Nut M14 |
| 17 |
403138778 |
Carburetor Kit TM40-B322 |
| 18 |
293750001 |
Tie Wrap 94 mm |
| 19 |
512059835 |
Gemi Clamp |
| 20 |
415128524 |
Spark Plug NGK BR9ECS |
| 21 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 22 |
512059968 |
Ignition Coil |
| 23 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 24 |
512059695 |
CABLE ASSY, 300 MM - Call your local BRP dealership |
| 25 |
512059696 |
Cable Ass’y, 375 mm |
| 26 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 27 |
414115200 |
Tie-Rap 180 mm |
| 28 |
207066044 |
Hex. Screw M6 X 60 |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 31 |
517203200 |
Spacer |
| 32 |
572084400 |
Starter Grip |
| 33 |
512059893 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 34 |
512060484 |
Throttle Handle Ass'y This part replaces 512060302. |
| 36 |
250000036 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 37 |
250000098 |
PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 38 |
512059698 |
COVER - Call your local BRP dealership |
| 39 |
250000265 |
TORX SCREW M2.9 X 12 - Call your local BRP dealership |
| 40 |
732601143 |
Flange Screw |
| 41 |
512060085 |
Throttle Cable |
| 42 |
512059750 |
PROTECTOR - Call your local BRP dealership |
| 43 |
234081100 |
Flat Washer 8 mm, Nylon |
| 44 |
414753500 |
Circlip |
| 45 |
293750042 |
TIE CLAMP - Call your local BRP dealership |
| 46 |
414274500 |
Circlip |
| 47 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 49 |
394103300 |
Lock Washer, Interior Teeth |
| 50 |
512059094 |
PLASTIC NUT - Call your local BRP dealership |
| 51 |
512059535 |
ROPE GUIDE - Call your local BRP dealership |
| 52 |
512059536 |
TUBE - Call your local BRP dealership |
| 54 |
270600009 |
CAP - Call your local BRP dealership |
| 55 |
293300042 |
O-RING - Call your local BRP dealership |
| 56 |
515175701 |
PRESSURE MANIFOLD HARNESS - Call your local BRP dealership |
| 57 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 58 |
241140060 |
Screw K40 X 10 |
| 59 |
404161825 |
STARTER JET - Call your local BRP dealership |
| 60 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 61 |
515175675 |
Female Lock, 2 Circuits |
| 62 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 63 |
512058919 |
SUPPORT - Call your local BRP dealership |
| 64 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 65 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 66 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 67 |
414729300 |
T-FITTING - Call your local BRP dealership |
| 68 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 69 |
293710035 |
Straight Fitting |
| 70 |
512060310 |
CALIBRATED MODULE - Call your local BRP dealership |
| 71 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 72 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 73 |
208651241 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 74 |
509000171 |
FORMED HOSE - Call your local BRP dealership |
| 75 |
219704420 |
Was 509000407 Hose 8 mm |
| 76 |
219704420 |
Was 509000407 Hose 8 mm |
| 77 |
512059324 |
Valve 5/16” |
| 78 |
414655700 |
Spring Clamp |
| 79 |
293650170 |
Tridon Gear Clamp |
| 80 |
512060196 |
Male Connector 1/8"-27 NPT |
| 81 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 82 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 83 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 84 |
219704399 |
Was 409901700 Tubing (9 mm) |
