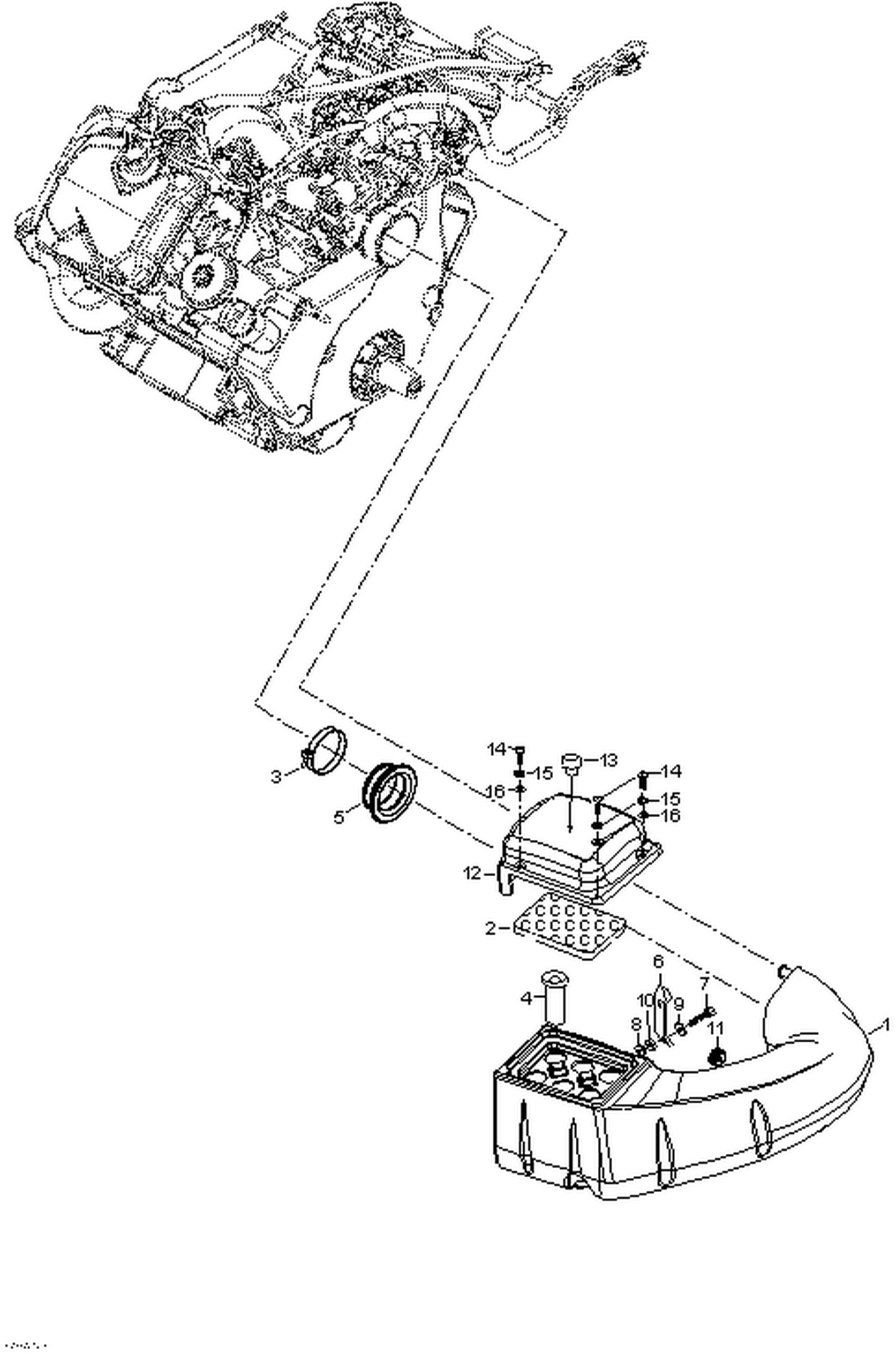

| Ref | Part Number | Description |
|---|
| 1 |
605150516 |
Air intake ass'y |
| 2 |
605350180 |
Filter |
| 3 |
508000382 |
GEMI CLAMP - Call your local BRP dealership |
| 4 |
5444445 |
INLET TUBE - Call your local BRP dealership |
| 5 |
508000254 |
INTAKE ADAPTATOR - Call your local BRP dealership |
| 6 |
531955 |
Latch |
| 7 |
40031 |
Screw M6 x 25 |
| 8 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 9 |
543392 |
Washer |
| 10 |
543417 |
Sleeve |
| 11 |
570065500 |
GROMMET - Call your local BRP dealership |
| 12 |
605250565 |
AIR INTAKE COVER - Call your local BRP dealership |
| 13 |
570044700 |
Rubber stopper |
| 14 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 15 |
20013 |
Lock washer A5 |
