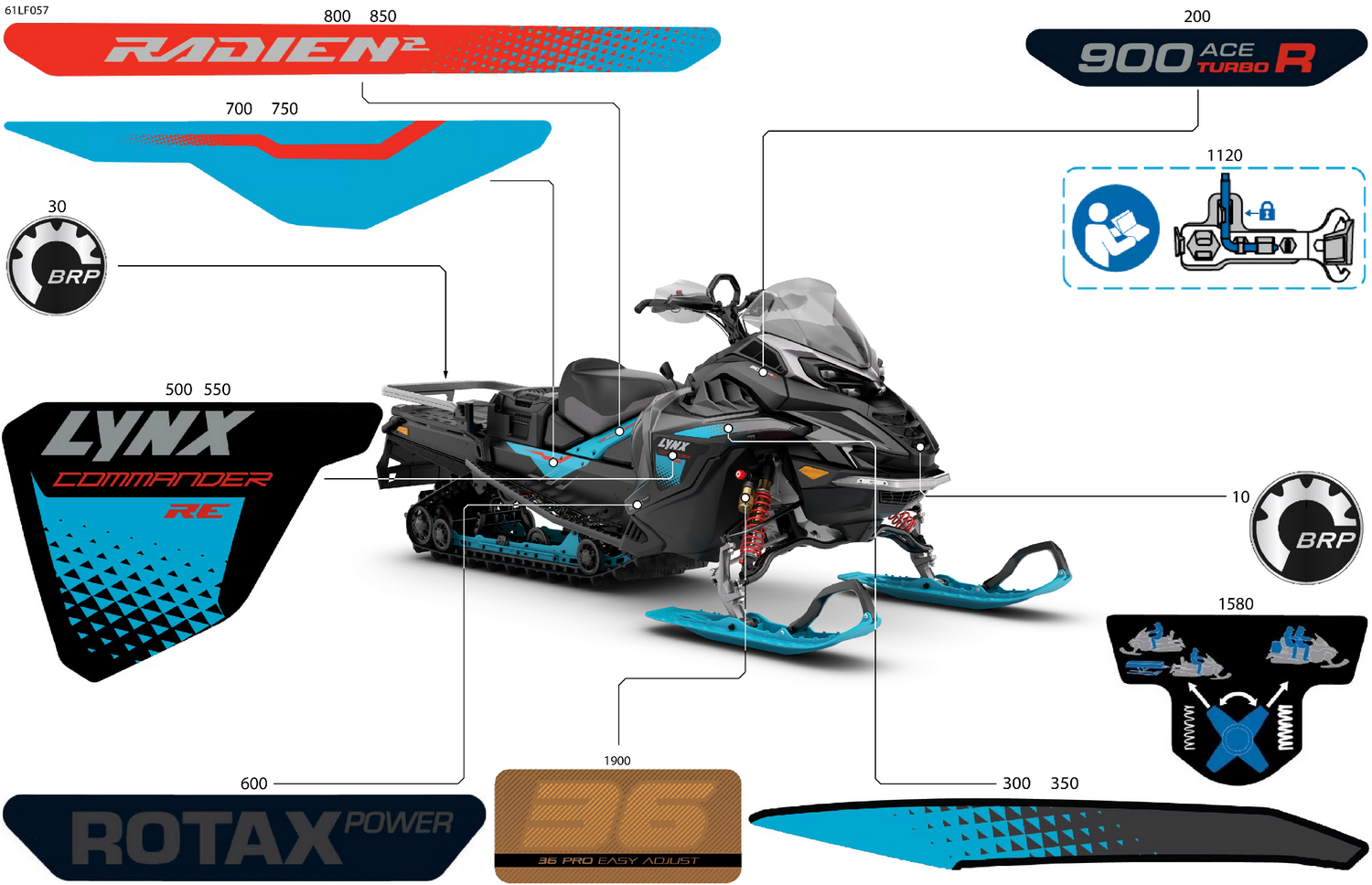

07- Body - Decals
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909040 | Emblem BRP Logo 48 MM UV |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 200 | 516011711 | Engine Decal 900 ACE TURBO R |
| 300 | 516012907 | LH Panel Top Panel Decal |
| 350 | 516012908 | RH Panel Top Panel Decal |
| 500 | 516012909 | LH Middle Panel Decal |
| 550 | 516012910 | RH Middle Panel Decal |
| 600 | 516012258 | Decal Rotax Power |
| 700 | 516012229 | LH Middle Tunnel Decal |
| 750 | 516012230 | RH Middle Tunnel Decal |
| 800 | 516012911 | LH Cross Member Decal |
| 850 | 516012912 | RH Cross Member Decal |
| 1120 | 516011629 | Tool Instruction Label |
| 1580 | 516009928 | Suspension Adjustment Decal |
