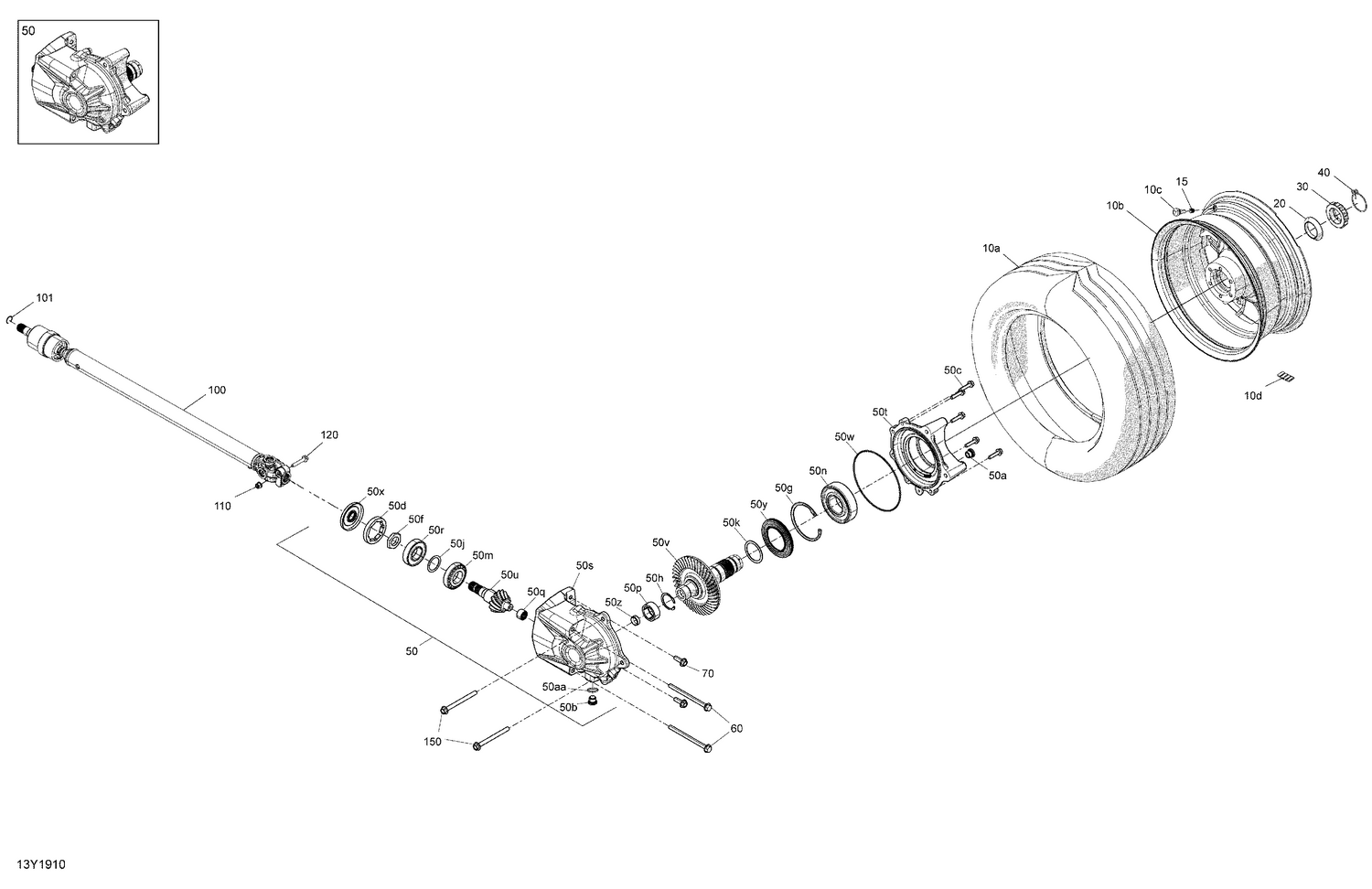

| Ref | Part Number | Description |
|---|
| 10a |
705502600 |
Rear Tire 205/65/15 - 81T |
| 10b |
705502601 |
Carbon Black Met, Rear Rim 15" |
| 10c |
705400193 |
Rim Valve With Cap |
| 10d |
705502106 |
Self Adhesive Weight, 5G 20mm |
| 15 |
293000110 |
Valve Cap |
| 20 |
705401983 |
Conical Support Ring |
| 30 |
705402730 |
Wheel Nut M45 This part replaces 705401881. |
| 40 |
293370168 |
External Retaining Ring This part replaces 293370126. |
| 50a |
705501889 |
Fill Level Plug |
| 50b |
705502851 |
Magnetic Plug Drain |
| 50c |
705502849 |
Hex. Flange Screw M8 X 1.25 x 35 |
| 50d |
Not |
Available As Spare Part - Nut M75 X 1.5 |
| 50f |
705401820 |
Nut M27 X 1.5 |
| 50g |
705502840 |
Retaining Ring OD 119mm |
| 50h |
705502841 |
Retaining Ring OD 50.5mm |
| 50j |
Not |
Available As Spare Part - Shim |
| 50k |
705502843 |
Shim 2.047po X 2.5po X 0.60po |
| 50m |
Not |
Available As Spare Part - Roller Bearing |
| 50n |
705502845 |
Ball Bearing |
| 50p |
705502852 |
Needle Bearing |
| 50q |
Not |
Available As Spare Part - Needle Bearing |
| 50r |
Not |
Available As Spare Part - Ball Bearing |
| 50s |
Not |
Available As Spare Part - |
| 50t |
705502508 |
Rear Cover Machined |
| 50u |
Not |
Available As Spare Part - Gear Helical 13 Teeth |
| 50v |
705503168 |
Ring Gear FInal Drive Ass'y |
| 50w |
705501881 |
Oil Seal iDIA 6.737 oDIA 6.943 |
| 50x |
705401827 |
Oil Seal, Triple Lip 25 X 79 X 8 |
| 50y |
705502847 |
Oil Seal, Single Lip 68 X 110 X 8 |
| 50z |
Not |
Available As Spare Part - Plug Expension 25 X 9 |
| 60 |
230604056 |
Hex. Flange Screw M10 X 140 |
| 70 |
207503056 |
Hex. Flange Screw M10 X 30 Scotch G. |
| 100 |
705502456 |
LH Homocinetic Joint |
| 101 |
705401349 |
Circlip Joint |
| 110 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 120 |
207684586 |
Hex. Flange Screw M8 X 45 |
