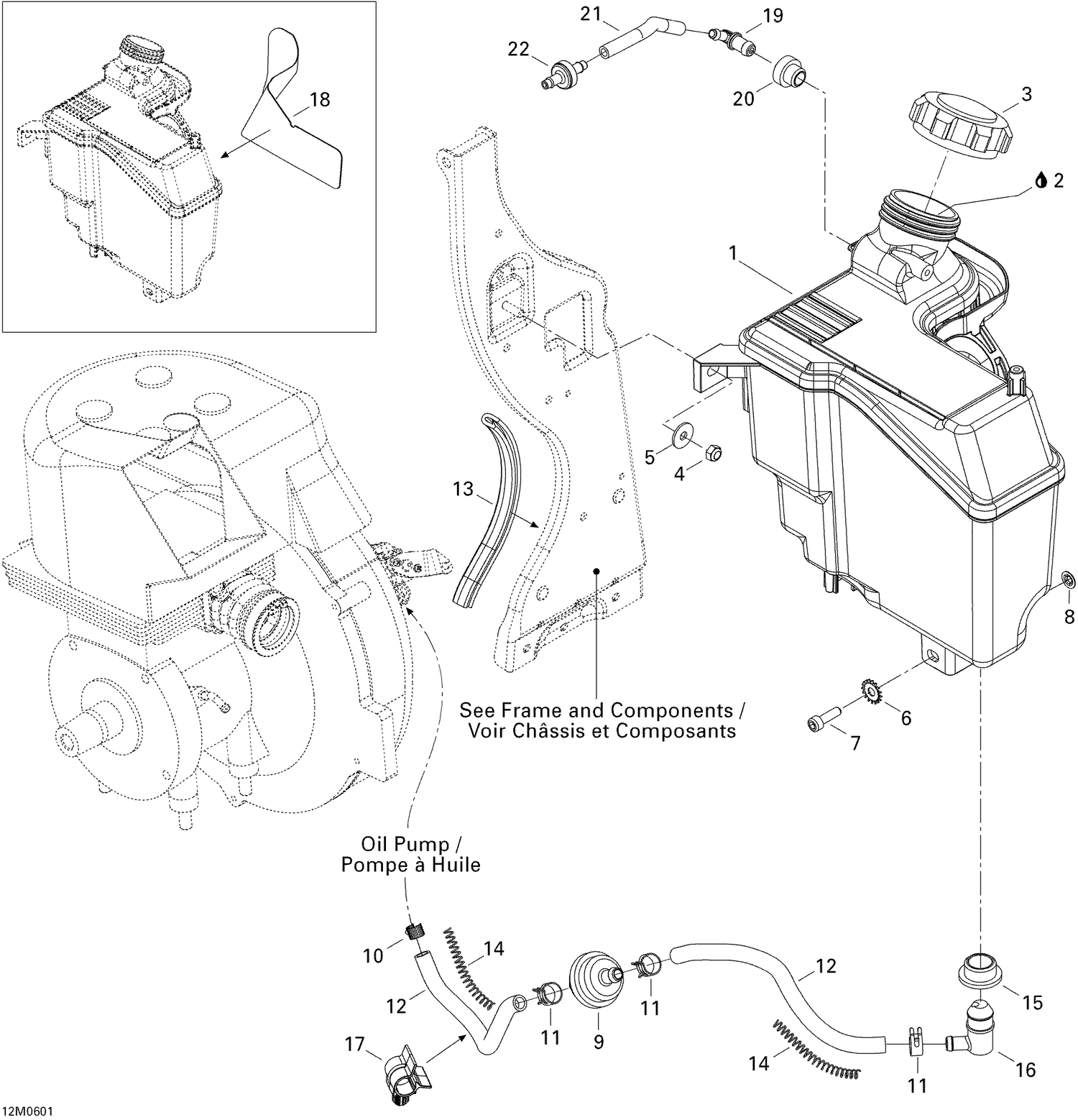

| Ref | Part Number | Description |
|---|
| 1 |
519000073 |
INJECTION OIL TANK - Call your local BRP dealership |
| 2 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 2 |
779120 |
Huile minérale 2T Premium pour motoneige This part replaces 413803000. |
| 2 |
779123 |
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 3 |
519000033 |
CAP - Call your local BRP dealership |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
250200082 |
Flat Washer This part replaces 391302000. |
| 6 |
250200041 |
Lock Washer Serrated M6 |
| 7 |
205062044 |
Socket Head Screw M6 X 20 |
| 8 |
732610072 |
Push Nut |
| 9 |
414536500 |
Filter |
| 10 |
414420700 |
Spring Clamp |
| 11 |
414415200 |
Spring Clamp |
| 12 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 13 |
219704407 |
Tubing 10 MM 1000MM Long |
| 14 |
519000125 |
SPRING - Call your local BRP dealership |
| 15 |
570023000 |
Insulating Ring |
| 16 |
519000124 |
Elbow Fitting 90° |
| 17 |
275500528 |
Hose Retainer |
| 18 |
519000054 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 19 |
414580700 |
Male Connector |
| 20 |
513032908 |
Grommet |
| 21 |
219704410 |
Polyurethane Hose 10000Mm Long |
