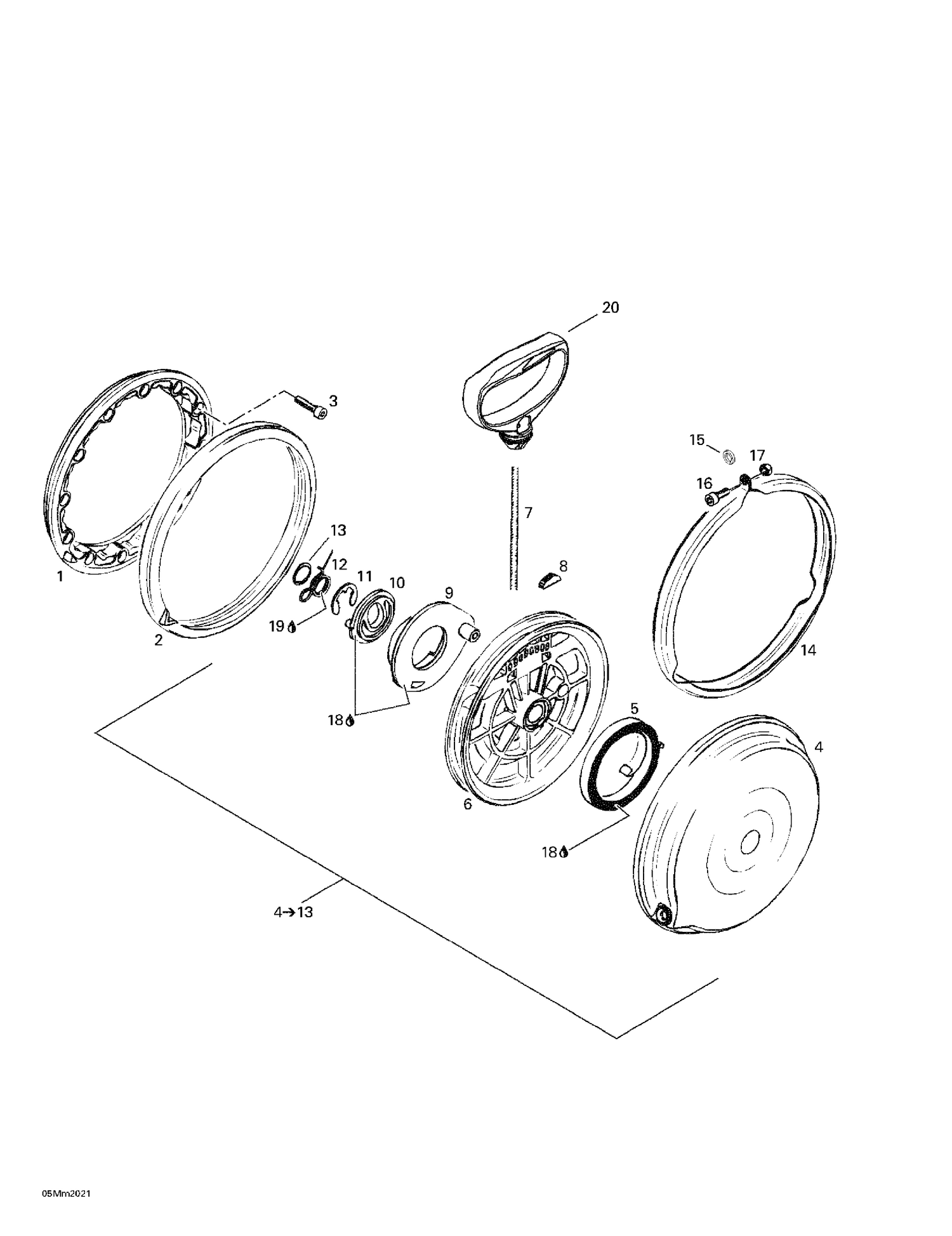

04- Rewind Starter
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810860 | Connecting Flange |
| 2 | 420860950 | DAMPER RING - Call your local BRP dealership |
| 3 | 205062544 | Socket Head Screw M6 X 25 |
| 4 | 420887448 | Demarreur *Rewind Starter This part replaces 420810877. |
| 5 | 420939115 | Rewind Spring |
| 6 | 420852284 | ROPE SHEAVE - Call your local BRP dealership |
| 7 | 219704403 | Was 412500100 Rope-Starter |
| 8 | 420852070 | Key Clamp |
| 9 | 420852296 | Pawl |
| 10 | 420852301 | PAWL LOCK - Call your local BRP dealership |
| 11 | 420845300 | CIRCLIP - Call your local BRP dealership |
| 12 | 420938986 | Pawl Spring |
| 13 | 420945770 | LOCK RING - Call your local BRP dealership |
| 14 | 420851330 | Clamp |
| 15 | 420944310 | WASHER-DISTANCE 6.7X14X3 - Call your local BRP dealership |
| 16 | 205062044 | Socket Head Screw M6 X 20 |
| 17 | 232561414 | Elastic Stop Nut M6 |
| 18 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
