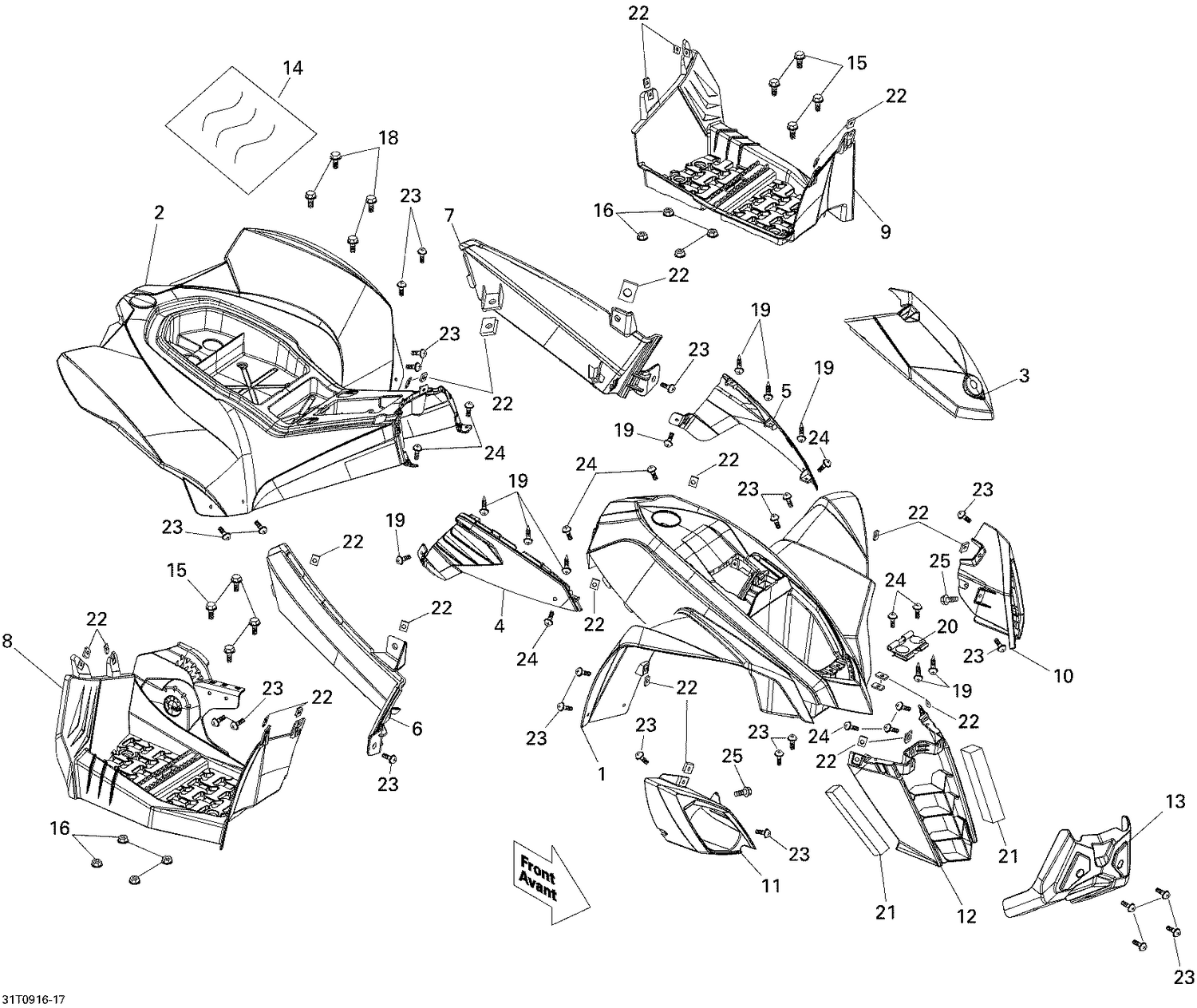

09- Body And Accessories
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V83001DGE000 | FRONT FENDER YELLOW (EN) - Call your local BRP dealership This part replaces V81101DGF060. |
| 2 | V82013DGF000LL | Rear Fender, Yellow This part replaces V81102DGF040. |
| 3 | Not | Available As Spare Part - Cargo Cover |
| 4 | V80104DGF010BKLL | RH Front Side Panel This part replaces V80104DGF000BK. |
| 5 | V80105DGF010BKLL | LH Front Side Panel This part replaces V80105DGF000BK. |
| 6 | V80116DGF000BKLL | RH Rear Side Panel This part replaces V80116DGF000BK. |
| 7 | V80117DGF000BKLL | LH Rear Side Panel This part replaces V80117DGF000BK. |
| 8 | V80106DGF020BKLL | RH Footrest This part replaces V80106DGF000BK. |
| 9 | V80107DGF020BKLL | LH Footrest This part replaces V80107DGF000BK. |
| 10 | V80110DGF020BKLL | RH Headlamp Housing This part replaces V80110DGF010BK. |
| 11 | V80111DGF020BKLL | LH Headlamp Housing This part replaces V80111DGF010BK. |
| 12 | V80114DGF000BK | Front Grille |
| 13 | V80113DGF010BKLL | Skid Plate This part replaces V80113DGF000BK. |
| 14 | V18450DGF000LL | Heat Insulation Sheet This part replaces V18450DGF000. |
| 15 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 16 | 232561414 | Elastic Stop Nut M6 |
| 18 | 207661244 | Hex. Flange Screw M6 X 12 |
| 19 | V9309304012LL | Tapping Screw This part replaces V9309304012. |
| 20 | V50262DGF030LL | Cargo Cover Hinge This part replaces V50262DGF020. |
| 21 | V81146DGF020 | Waterproof Strip |
| 22 | Not | Available As Spare Part - Spring Nut |
| 23 | V930000601501LL | Round Head Screw This part replaces V9300006015. |
| 24 | V930000601201LL | Round Head Screw This part replaces V9300006012. |
