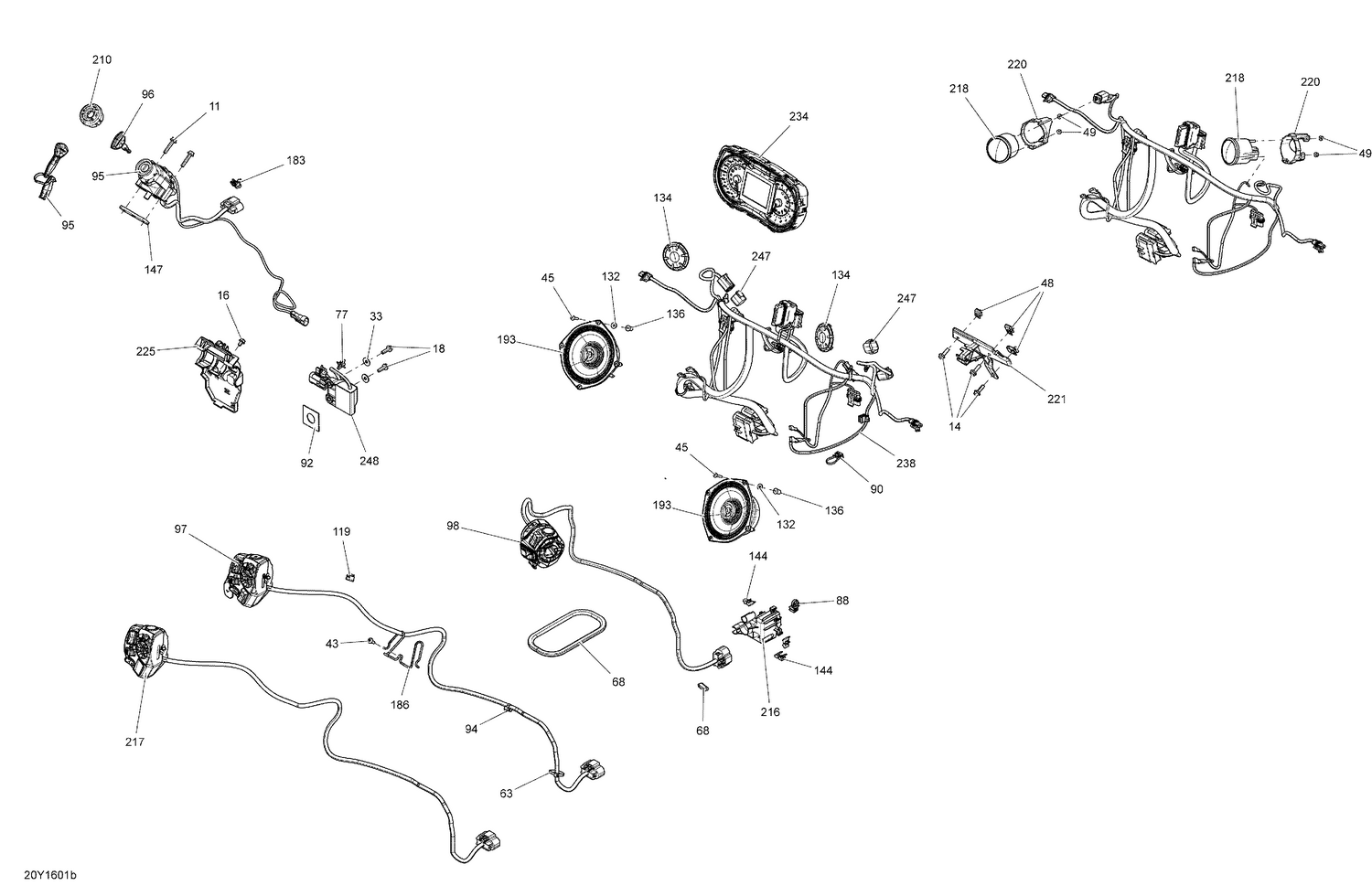

10- Electrical System - Accessories
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 14 | 207662044 | Hex. Flange Screw M6 X 20 |
| 16 | 210261050 | Hex. Forming Screw M6 X 10 |
| 18 | 210262050 | Hexagonal Head Screw |
| 33 | 234062410 | Flat Washer 6 mm |
| 43 | 250000742 | Torx Screw M5 X 14 |
| 45 | 250000783 | Torx-Truss M/S M4 X 20 |
| 48 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 49 | 250100142 | Hex. Serrated Flange Nut |
| 63 | 293750008 | Tie Wrap 368 mm |
| 68 | 219704354 | Trim 1000Mm Long |
| 77 | 293750009 | Tie-Rap 173 mm |
| 88 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 90 | 293750063 | Clip Tie-Rap |
| 92 | 293830091 | Rubber Bumper |
| 94 | 414115200 | Tie-Rap 180 mm |
| 95 | 710007316 | Ignition Switch This part replaces 710004277. |
| 96 | 710004408 | Ignition Key Kit |
| 98 | 710004583 | RH Switch Housing |
| 119 | 414227300 | Clip |
| 132 | 517225900 | Flat Washer |
| 136 | 705003635 | Well Rubber Nut M4 X 0.7 |
| 144 | 710001222 | Lock |
| 147 | 710001365 | Switch Support |
| 183 | 710002896 | Tie-Rap Clip |
| 186 | 710003017 | Grommet Spindle |
| 193 | 710003233 | Front Speaker |
| 210 | 710003594 | Switch Cover |
| 216 | 710004086 | Connector Support |
| 221 | 710004256 | CONNECTOR SUPPORT - Call your local BRP dealership |
| 225 | 710004308 | Wire Support |
| 234 | 710005871 | Speed Prog This part replaces 710004723. |
| 234a | 415129349 | Lens |
