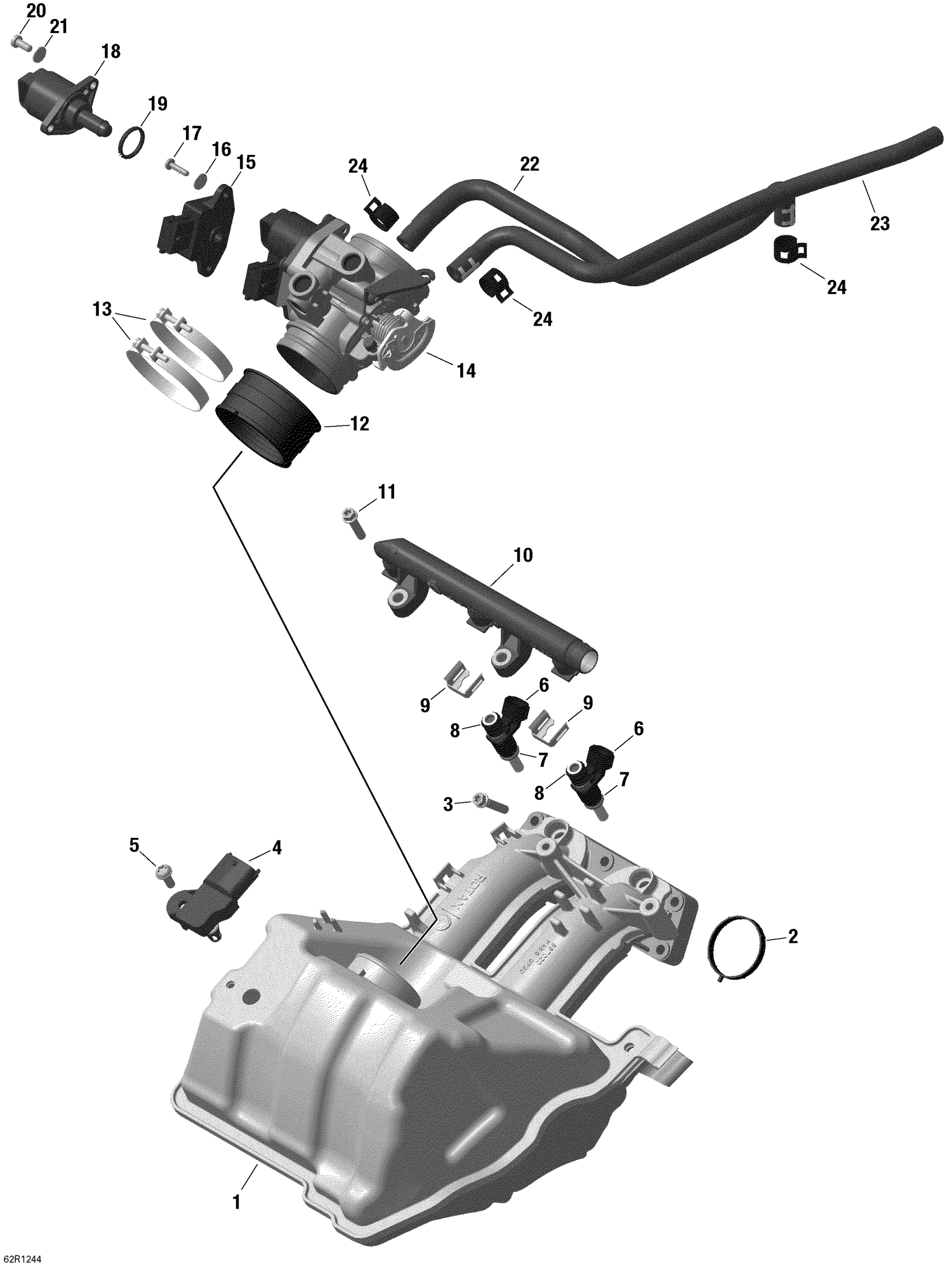

02- Air Intake Manifold
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420431660 | Gasket |
| 9 | 420853030 | Injector Clip |
| 10 | 420874961 | Fuel Rail This part replaces 420874960. |
| 12 | 420460495 | Intake Adaptor |
| 16 | Not | Available As Spare Part - WASHER |
| 17 | Not | Available As Spare Part - OVAL HEAD SCREW |
| 18 | 420665941 | Idle Air Control Valve This part replaces 420665940. |
| 21 | 420845710 | Snap Ring |
| 22 | 420460910 | MOLDED HOSE - Call your local BRP dealership |
| 23 | 420460915 | MOLDED HOSE - Call your local BRP dealership |
