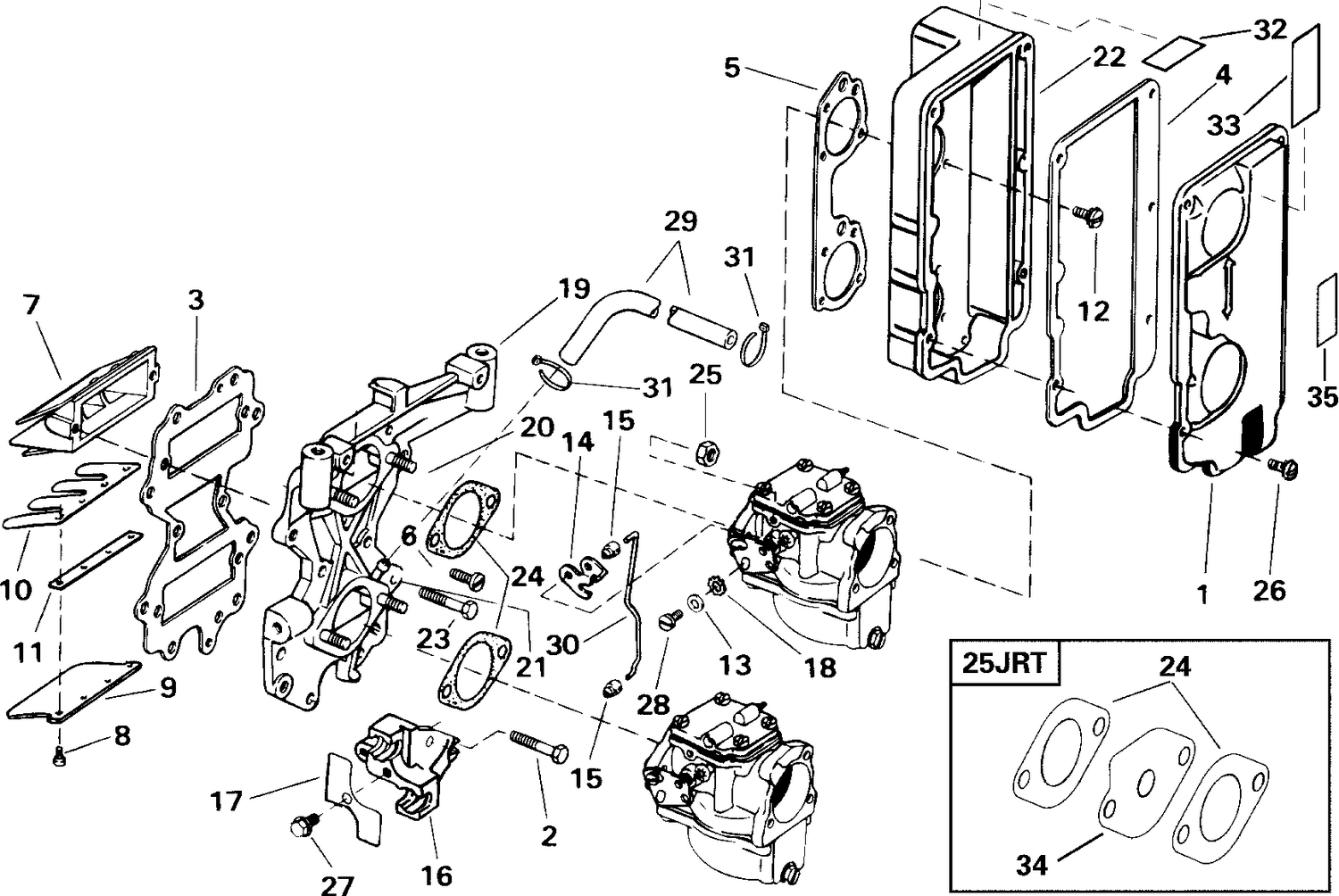

INTAKE MANIFOLD
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0329396 | COVER |
| 2 | 0306418 | VIS, ancrage |
| 3 | 0335633 | GASKET |
| 4 | 0330698 | GASKET |
| 5 | 0330910 | GASKET |
| 6 | 0306474 | SCREW |
| 7 | 0395442 | LEAF PLATE ASSEMBLY |
| 14 | 0329418 | LEVER, Synchronization adj. |
| 15 | 0318165 | DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 16 | 0333766 | ANCHOR BLOCK |
| 17 | 0334175 | RETAINER |
| 19 | 0433684 | MANIFOLD Assy |
| 22 | 0431994 | BASE, Air silencer |
| 23 | 0306409 | VIS, collecteur vers carter-moteur |
| 25 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 30 | 0329888 | LINK |
| 31 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 32 | 0330612 | DECAL, Spark advance |
