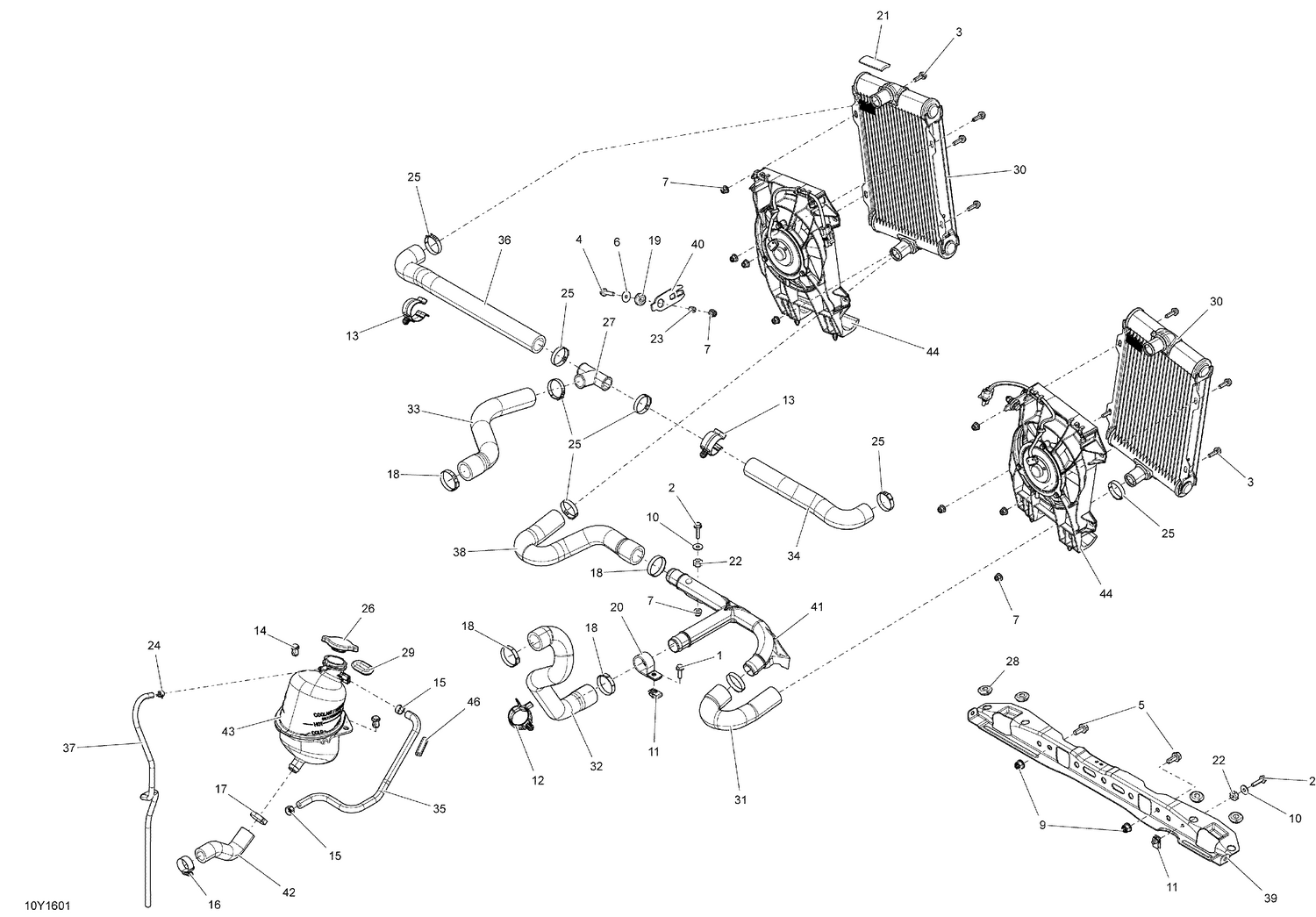

01- Cooling System — Parts Catalog

Parts (43)

Ref	Part Number	Description
1	207562034	Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044.
2	207562544	Hex. Flange Screw M6 X 25
3	207662044	Hex. Flange Screw M6 X 20
4	207662544	Hex. Flange Screw M6 X 25
5	207682044	Hex. Flange Screw M8 X 20
6	224060201	Flat Washer
7	233261414	Hex. Flange Elastic Nut M6 x 1.0
9	233281414	Hex. Flange Elastic Nut M8
10	234062410	Flat Washer 6 mm
11	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
12	275500590	Retainer
13	275500951	Clip
14	293150230	Tuflok Plastic Rivet This part replaces 293150089.
15	293650025	Oetiker Gear Clamp
16	293650051	Tridon Gear Clamp
17	293650165	Oetiker Gear Clamp
18	293650199	Oetiker Gear Clamp
19	709000582	Grommet This part replaces 293720053.
20	293750035	Open Clamp
21	293830159	Pad
22	293830160	Shock Washer
23	293900105	Bushing
24	414554800	Spring Clamp
25	509000045	Oetiker Gear Clamp 36.1MM
26	509000187	Pressure Cap
27	509000219	T-Fitting
28	705003264	Grommet
29	705003668	Oblong Grommet
30	709200314	Radiator
31	709200879	RH Lower Radiator Hose This part replaces 709200319.
32	709200877	Lower Formed Water Pump Hose This part replaces 709200321.
33	709200871	Upper Formed Water Pump Hose This part replaces 709200322.
34	709200881	RH Upper Radiator Hose This part replaces 709200323.
35	709200324	Formed Hose
36	709200329	Formed Hose
37	219704410	Polyurethane Hose 10000Mm Long
38	709200882	LH Lower Radiator Hose This part replaces 709200376.
39	709200400	Support
40	709200404	Support
41	709200468	Connector
42	709200874	Lower Formed Coolant Tank Hose This part replaces 709200499.
43	709200749	Coolant Tank This part replaces 709200528.
44	709200555	Fan Assembly
