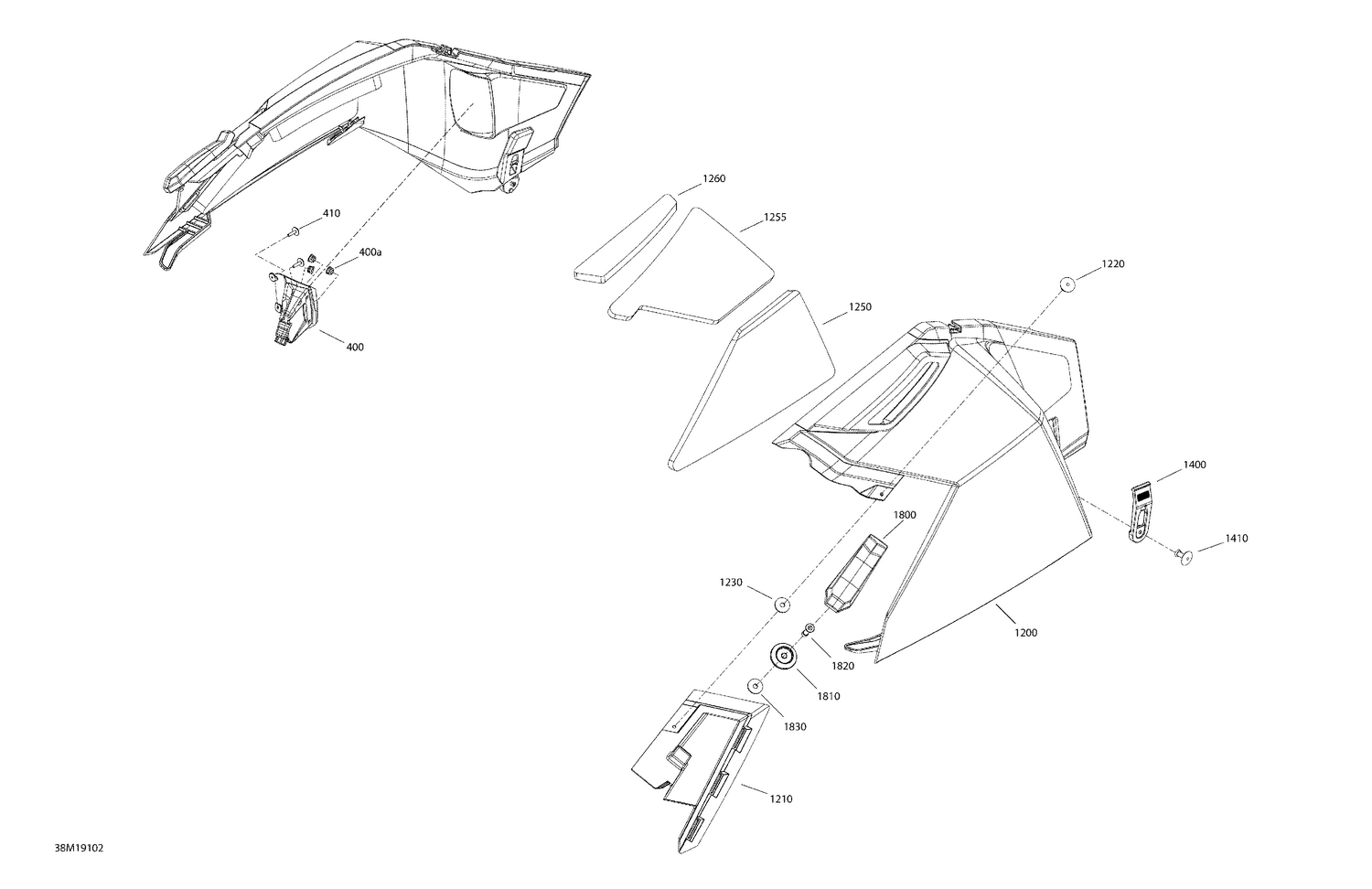

09- Hood - Panel Section
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 400a | 275500241 | Black, Cap |
| 410 | 250000725 | Screw M4 X 16 |
| 1200 | 517305016 | RH Panel |
| 1200 | 517305017 | LH Panel |
| 1210 | 517304090 | RH Insert |
| 1210 | 517304092 | LH Panel Insert |
| 1220 | 293150104 | Pop Rivet 3/16" |
| 1230 | 517124300 | Washer |
| 1250 | 517304870 | Foam |
| 1250 | 517304874 | Foam |
| 1255 | 517304871 | Foam |
| 1255 | 517304875 | Foam |
| 1260 | 517304880 | Foam |
| 1400 | 517304999 | Rear Panel Latch |
| 1410 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1800 | 517305186 | Front Latch Panel |
| 1810 | 517304320 | Anchor Link |
| 1820 | 293150014 | Pop Rivet 3/16" |
