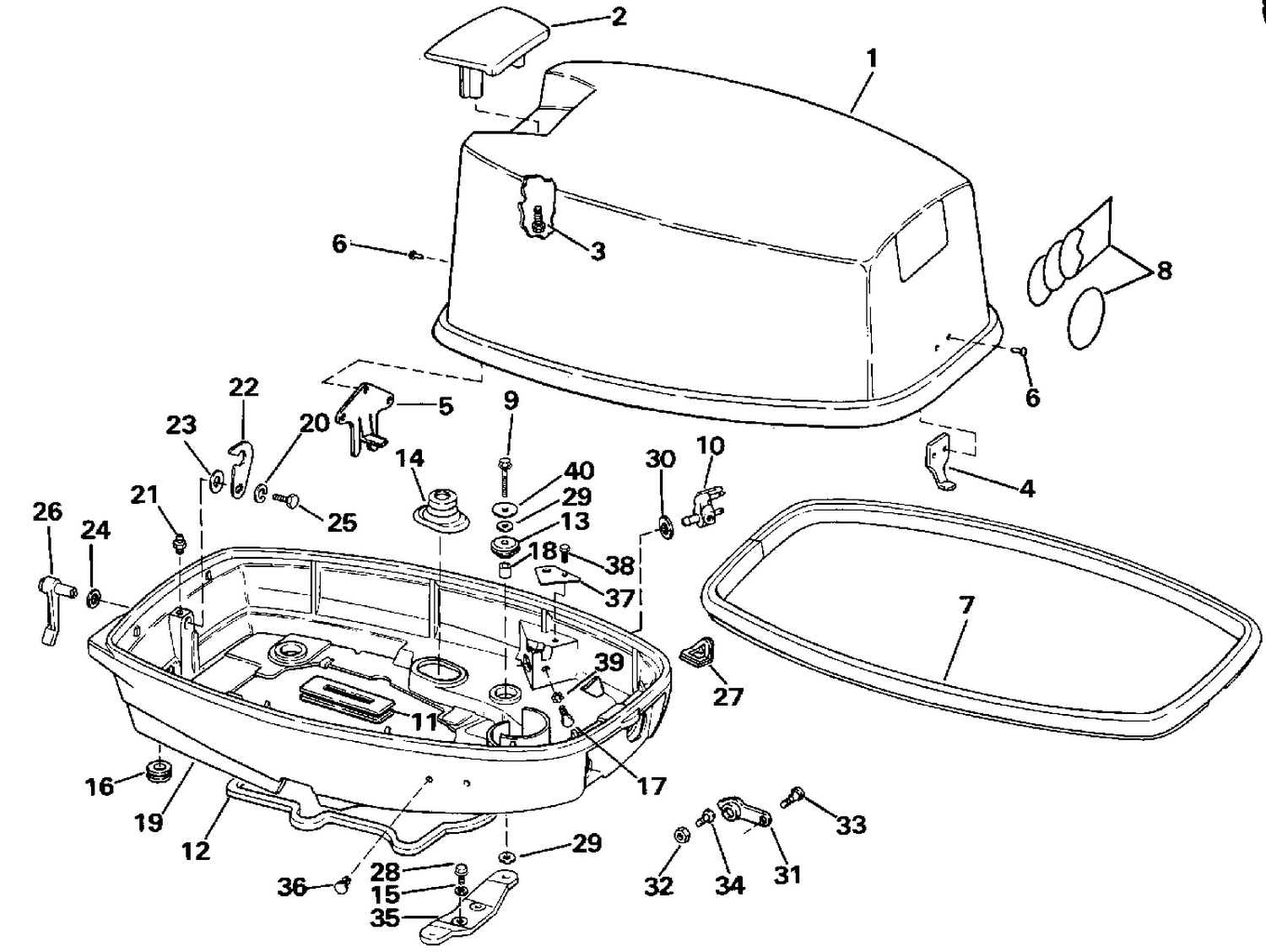

| Ref | Part Number | Description |
|---|
| 1 |
0283401 |
ENGINE COVER ASSY., Ev. |
| 1 |
0431741 |
ENGINE COVER ASSY., Jo. |
| 4 |
0320400 |
HOOK, Engine cover |
| 8 |
0211023 |
APPLIQUE Front |
| 8 |
0334008 |
APPLIQUE, Engine cover, front |
| 9 |
0329240 |
SCREW |
| 11 |
0325327 |
GROMMET, Actuator cam |
| 12 |
0321058 |
SEAL, Housing to cover |
| 13 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 14 |
0304019 |
CROMMET, CONTROL SHAFT |
| 16 |
0334761 |
GROMMET |
| 18 |
0302406 |
SLEEVE |
| 19 |
0433392 |
ENGINE COVER, Lower This part replaces 0396982. |
| 25 |
0304027 |
VIS, arbre de commande de sens de marche |
| 28 |
0304027 |
VIS, arbre de commande de sens de marche |
| 29 |
0392941 |
WASHER, Grommet to cover |
| 35 |
0325868 |
BRACKET, Cove to exh. hsg., front |
| 37 |
0331461 |
CLIP, Trunnion |
| 38 |
0122147 |
VIS, connecteur |
| 40 |
0203622 |
WASHER |
| 0210979 |
0210979 |
OWNER'S MANUAL., Ev. |
| 0210980 |
0210980 |
OWNER'S MANUAL., Ev. |
| 0283484 |
0283922 |
DECAL SET, Ev This part replaces 0283484. |
| 0397941 |
0397941 |
OWNER'S MANUAL., Jo. |
