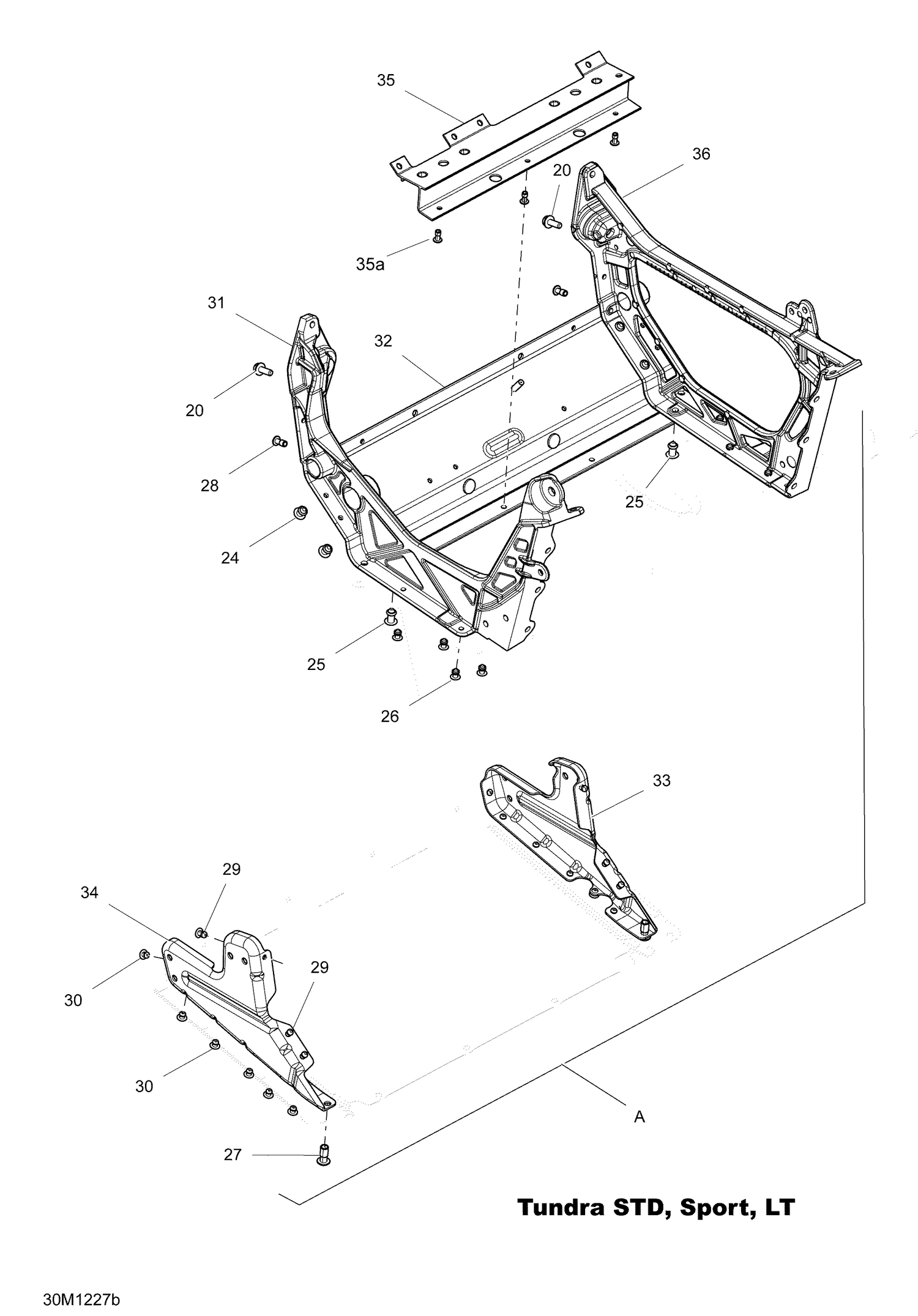

09- Frame E Module
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 24 | 293150119 | Hemlock Rivet, 6.5 mm |
| 25 | 293150120 | Hemlock Rivet 6.5 mm |
| 26 | 293150144 | Stavex Rivet |
| 27 | 293150182 | Monobolt Rivet 6.4 |
| 28 | 293150191 | Monobolt Rivet, 4.8 mm |
| 29 | 390909100 | Avex Rivet |
| 30 | 390909200 | Avex Rivet |
| 31 | 518325558 | LH Member |
| 32 | 518325818 | Front Member |
| 33 | 518325949 | RH Front Member |
| 34 | 518325950 | LH Front Member |
| 35 | 518326120 | ENGINE SUPPORT - Call your local BRP dealership |
| 35a | 293150191 | Monobolt Rivet, 4.8 mm |
| 36 | 518326795 | RH Member |
