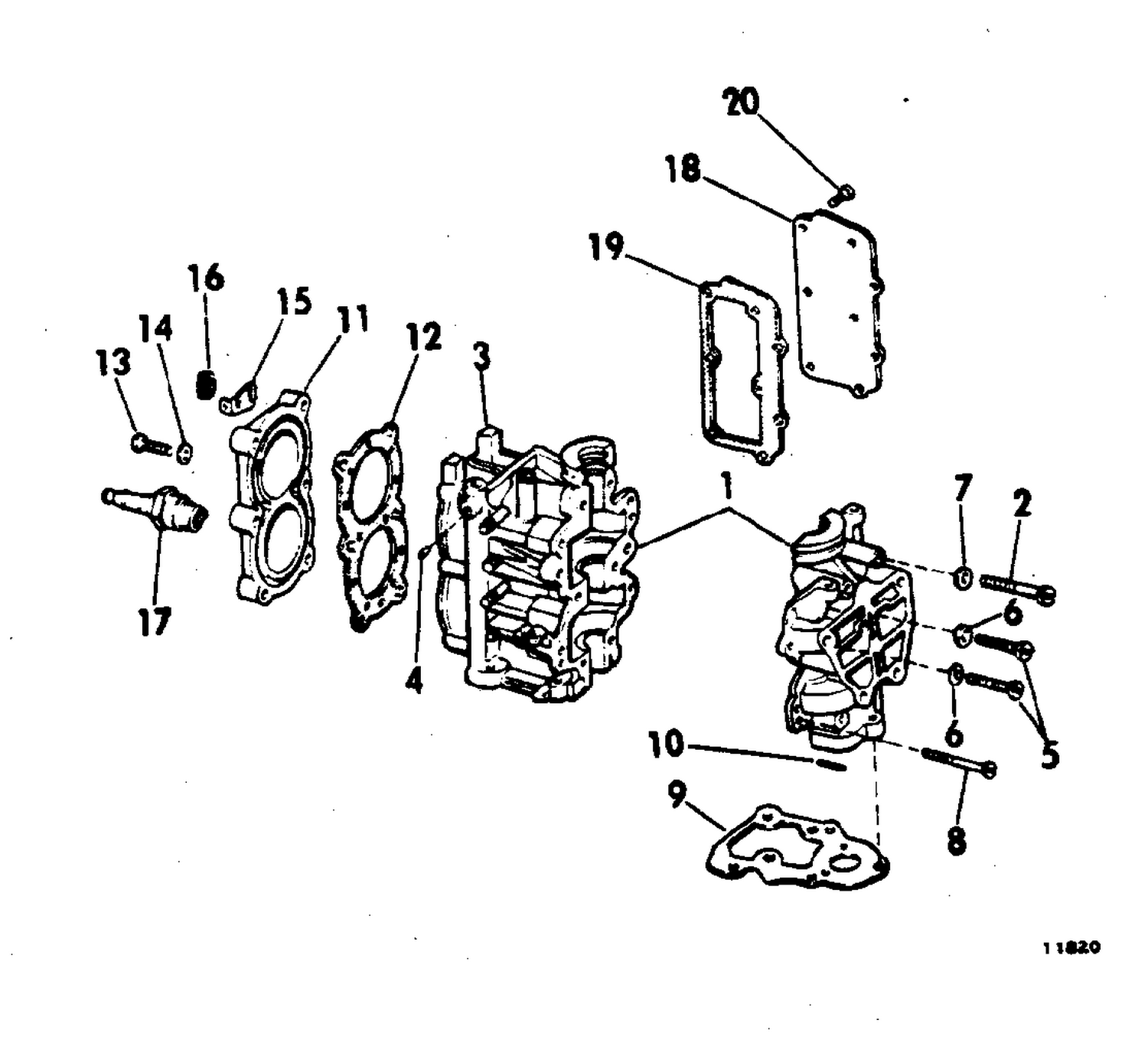

| Ref | Part Number | Description |
|---|
| 1 |
0385150 |
CYLINDER & C'CASE ASSY |
| 2 |
0328699 |
LEVER, Spark control This part replaces 0132942. |
| 5 |
0302431 |
SCREW, Center |
| 6 |
0300399 |
WASHER |
| 7 |
0316676 |
LOCKWASHER, Ground |
| 8 |
0306408 |
SCREW |
| 9 |
0314850 |
GASKET |
| 11 |
0319336 |
CYLINDER HEAD This part replaces 0314779. |
| 12 |
0203130 |
GASKET, Cylinder head |
| 13 |
0303398 |
VIS, support This part replaces 0302030. |
| 14 |
0329241 |
RONDELLE This part replaces 0306482. |
| 15 |
0300455 |
ANCHOR, Ign lead |
| 16 |
0300454 |
GROMMER, Ignition lead |
| 17 |
0384734 |
SPARK PLUG, AC M44C |
| 17 |
0593871 |
SPARK PLUB, Champion j6j |
| 18 |
0323263 |
PLATE, EXH COVER This part replaces 0203172. |
| 19 |
0203171 |
GASKET, Cover plate |
