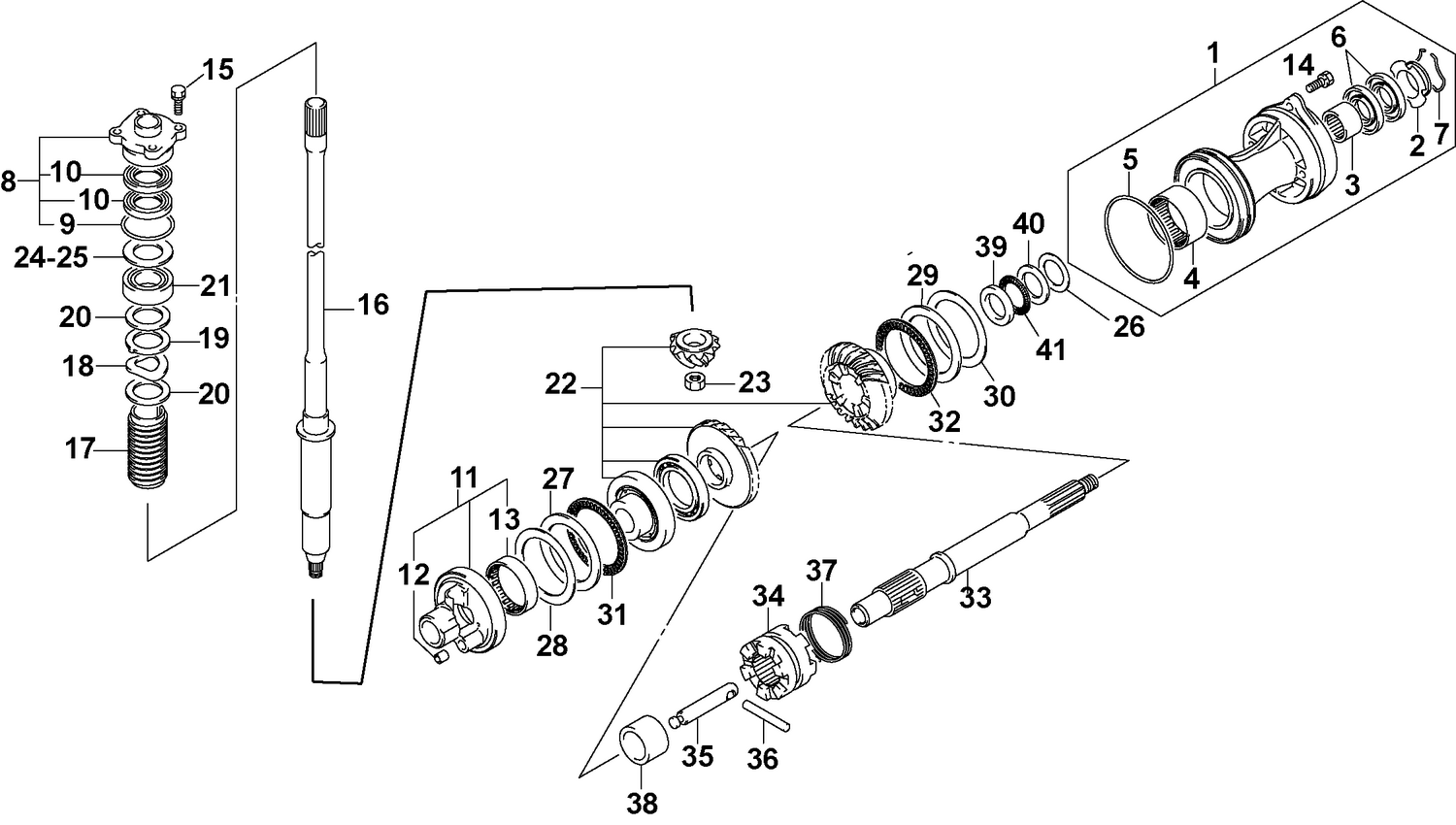

| Ref | Part Number | Description |
|---|
| 1 |
5034098 |
HOUSING, BEARING |
| 8 |
5033846 |
HOUSING |
| 11 |
5034099 |
HOUSING, REV GEAR BEARING |
| 14 |
5031216 |
BOLT |
| 15 |
5030398 |
BOLT |
| 16 |
5034157 |
SHAFT Assy, DRIVE 25 IN. MODELS |
| 17 |
5032553 |
COLLAR, DRIVE SHAFT |
| 18 |
5032554 |
WASHER, WAVE |
| 19 |
5032555 |
WASHER |
| 20 |
5032556 |
WASHER |
| 21 |
5030532 |
BEARING This part replaces 5032881. |
| 22 |
5034100 |
PINION/GEAR SET |
| 23 |
5032877 |
NUT |
| 24 |
5030975 |
SHIM KIT, Driveshaft |
| 31 |
5034119 |
BEARING (60X85X3.0mm) Reverse |
| 32 |
5033986 |
BEARING (70X95X4.0mm) Forward |
| 33 |
5034101 |
SHAFT, PROPELLER |
| 34 |
5033953 |
SHIFTER, CLUTCH DOG |
| 35 |
5033855 |
PIN, CONNECTOR |
| 36 |
5032584 |
PIN |
| 37 |
5034145 |
SPRING |
| 38 |
5034102 |
SPACER, CLUTCH DOG FWD |
