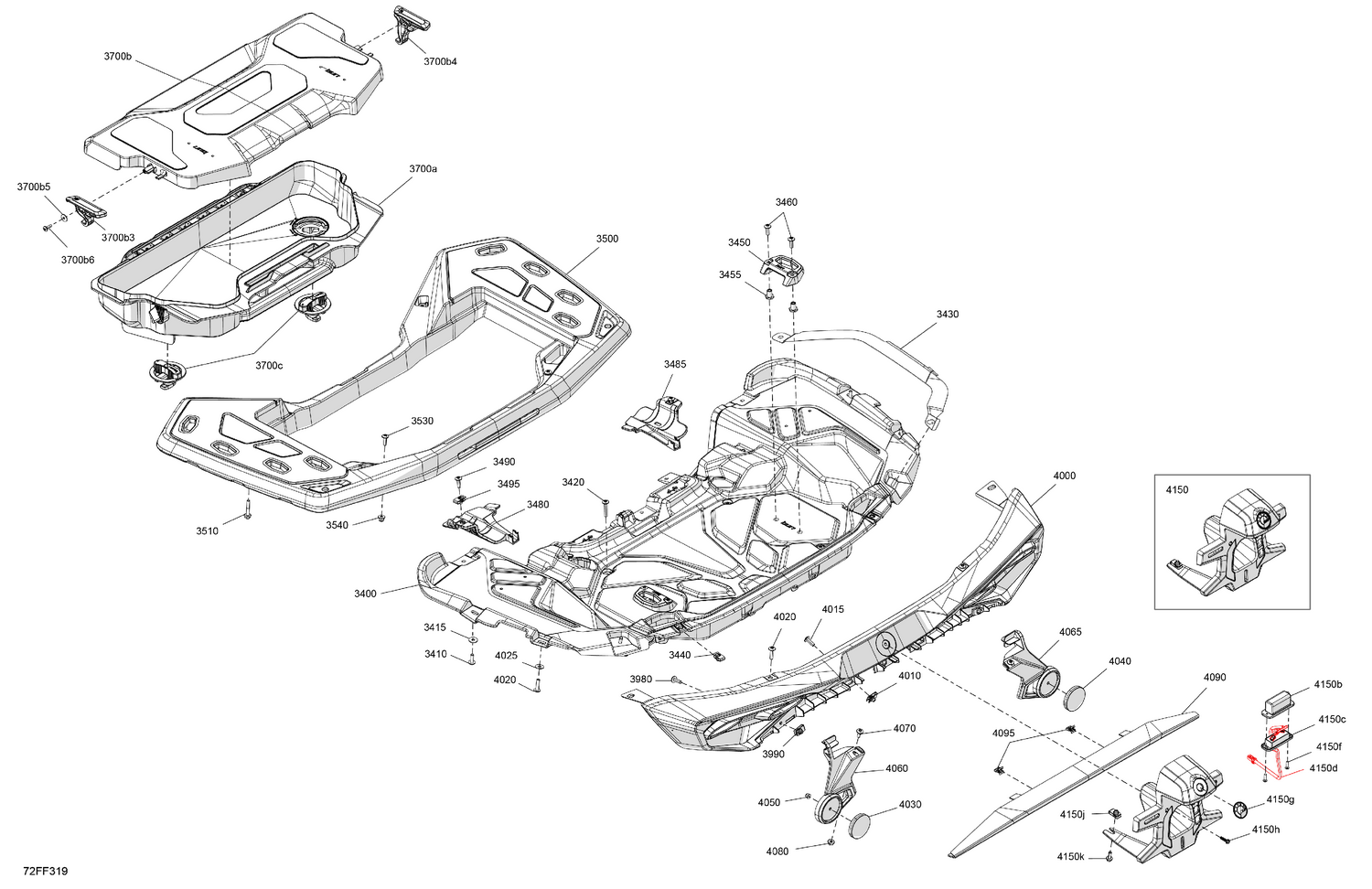

07- Body - Rear Section
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 3400 | 705018726 | Rear Multi Purpose Support |
| 3410 | 250001257 | Screw Torx M6 X 20 |
| 3415 | 234062410 | Flat Washer 6 mm |
| 3420 | 250001258 | Screw Torx M6 X 35 |
| 3430 | 705018564 | Heat Shield |
| 3440 | 250100198 | Panel Nut M6 X 1.0 |
| 3450 | 860201806 | Luggage Rack Base With Hardware |
| 3455 | 511000822 | Threaded Insert |
| 3460 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 3480 | 705019225 | LH Rear Shock Absorber Tank Trim |
| 3485 | 705019226 | RH Rear Shock Absorber Tank Trim |
| 3490 | 250001257 | Screw Torx M6 X 20 |
| 3495 | 250100198 | Panel Nut M6 X 1.0 |
| 3500 | 715010507 | Rear Luggage Rack Kit |
| 3510 | 207663544 | Hex. Flange Screw M6 X 35 |
| 3530 | 250001257 | Screw Torx M6 X 20 |
| 3540 | 233261466 | Hex. Flange Elastic Nut M6 |
| 3700a | 715010542 | Rear Storage Box Kit |
| 3700b | 715011405 | Rear Storage Box Kit |
| 3700b3 | 707901240 | Latch |
| 3700b4 | 707901241 | Latch |
| 3700b5 | 250200025 | Washer M5 |
| 3700b6 | 250000720 | Torx Screw K50 X 16 |
| 3700c | 708201324 | Latch |
| 3980 | 250001257 | Screw Torx M6 X 20 |
| 3990 | 250100198 | Panel Nut M6 X 1.0 |
| 4000 | 705015794 | Rear Light Support |
| 4010 | 250100198 | Panel Nut M6 X 1.0 |
| 4015 | 250001257 | Screw Torx M6 X 20 |
| 4020 | 250001000 | Torx-Truss M/S M6 X 25 |
| 4025 | 234062410 | Flat Washer 6 mm |
| 4030 | 705016982 | Red, Reflector |
| 4040 | 705016982 | Red, Reflector |
| 4050 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 4060 | 705018444 | LH Reflector Support |
| 4065 | 705018445 | RH Reflector Support |
| 4070 | 250000717 | Torx Head Screw M6 X 16 |
| 4080 | 233161414 | Hex. Flange Nut M6 |
| 4090 | 705019822 | Mineral Gray Satin, Rear Grille Trim |
| 4095 | 517302785 | Edge Clip |
| 4150b | 710008469 | Rear Connector Guard |
| 4150c | 710005501 | License Light |
| 4150d | 710008956 | Rear Lighting Wiring Harness |
| 4150f | 250000287 | Flange Torx Screw K40 X 16 |
| 4150g | 704909039 | BRP Logo Emblem 35 MM UV |
| 4150h | 241152040 | Hex. Flange PT Screw K50 X 20 |
| 4150j | 250100198 | Panel Nut M6 X 1.0 |
