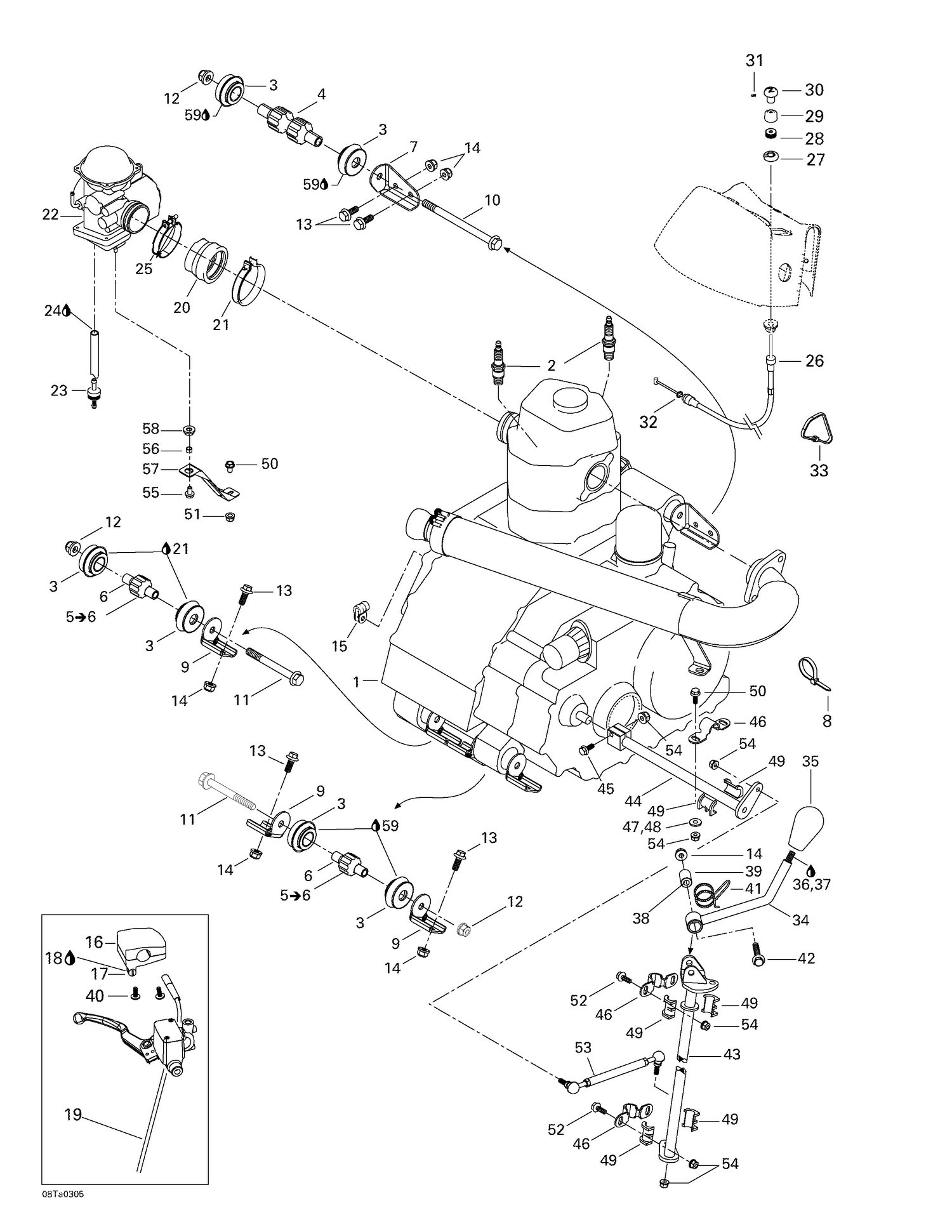

| Ref | Part Number | Description |
|---|
| 1 |
707000041 |
Rotax 4 Strokes Engine «511» |
| 2 |
707000008 |
Spark Plug NGK DR8EA |
| 3 |
707000094 |
Anti-Vibration Mount |
| 4 |
707000019 |
ENGINE SUPPORT BUSHING - Call your local BRP dealership |
| 6 |
707000004 |
RH LOWER BUSHING - Call your local BRP dealership |
| 7 |
707000082 |
Front Engine Bracket, Black |
| 8 |
293750009 |
Tie-Rap 173 mm |
| 9 |
705200197 |
Engine Bracket |
| 10 |
230604044 |
Hex. Flange Screw M10 X 140 |
| 11 |
207609544 |
HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership |
| 12 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 13 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
705600232 |
Hose Retainer 13 mm |
| 16 |
709400016 |
THROTTLE HANDLE - Call your local BRP dealership |
| 17 |
250000017 |
SCREW-SET SOCKET DIN.913 - Call your local BRP dealership |
| 18 |
293800061 |
Loctite BLACK/MAX Gel Tube, 20 g |
| 19 |
707000097 |
THROTTLE CABLE - Call your local BRP dealership |
| 20 |
707000247 |
CARBURATOR ADAPTOR - Call your local BRP dealership |
| 21 |
512059062 |
Clamp |
| 22 |
707200157 |
CARBURATOR ASS?Y BSR33-29 - Call your local BRP dealership |
| 23 |
275500398 |
Check Valve |
| 24 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 25 |
293650094 |
Gear Clamp Gemi |
| 26 |
707000357 |
CHOKE CABLE - Call your local BRP dealership This part replaces 707000264. |
| 27 |
707000067 |
D SHAPE WASHER - Call your local BRP dealership |
| 28 |
707000087 |
HOLDER CAP - Call your local BRP dealership |
| 29 |
707000088 |
Rubber Cap |
| 30 |
707000089 |
BUTTON - Call your local BRP dealership |
| 31 |
250000108 |
PHILLIPS SCREW M3 X 5 - Call your local BRP dealership |
| 32 |
293300075 |
O-RING - Call your local BRP dealership |
| 33 |
414115200 |
Tie-Rap 180 mm |
| 34 |
707000010 |
LEVER ASS'Y - Call your local BRP dealership |
| 35 |
705500022 |
LEVER BUTTON - Call your local BRP dealership |
| 36 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 37 |
293800060 |
Loctite 243, 10 ml |
| 38 |
705500150 |
BUSHING - Call your local BRP dealership |
| 39 |
705500193 |
Adjuster Bushing |
| 40 |
205353060 |
SCREW M5 X 30 - Call your local BRP dealership |
| 41 |
705500024 |
LEVER SPRING - Call your local BRP dealership |
| 42 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 43 |
705500358 |
Upper Tube, Black |
| 44 |
705500135 |
Lower Tube |
| 45 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 46 |
705500041 |
RETAINER CLAMP - Call your local BRP dealership |
| 47 |
707000080 |
Shim 1.0 mm |
| 48 |
707000081 |
Shim 2.0 mm |
| 49 |
705500033 |
Half Ring |
| 50 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 51 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 52 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 53 |
707000068 |
Tie Rod Ass'y |
| 54 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 55 |
207341644 |
Hex. Screw M4 X 16, Scotch Grip |
| 56 |
707000181 |
Spacer |
| 57 |
707200159 |
Carburator Support |
| 58 |
709000582 |
Grommet This part replaces 293720053. |
