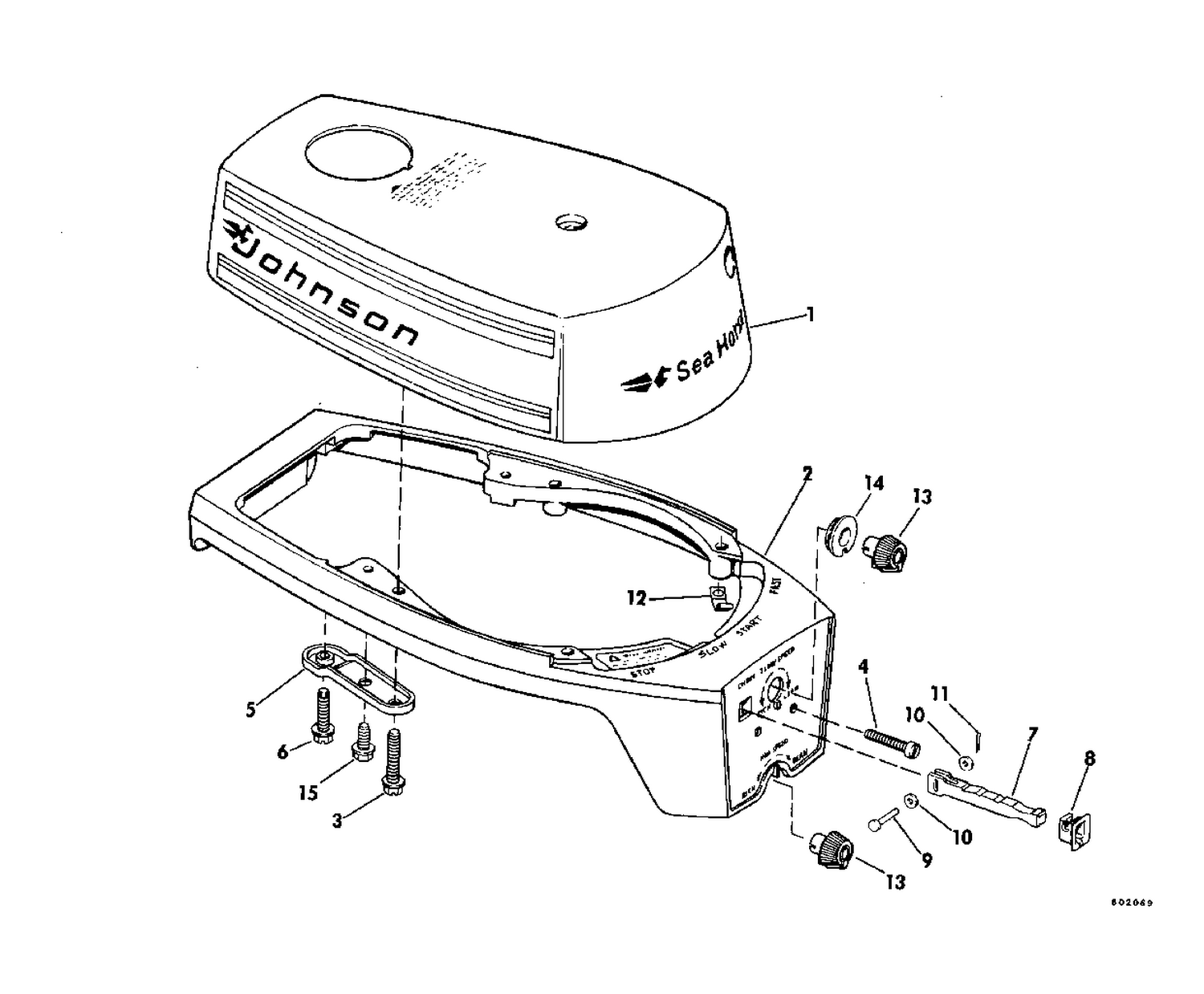

MOTOR COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0390211 | HOUSING & PIN |
| 2 | 0432544 | MOUNTING BRACKET This part replaces 0388704. |
| 3 | 0316450 | SCREW, Adaptor, lower |
| 4 | 0320504 | SCREW, Bracket to carburetor |
| 5 | 0316449 | SUPPORT, Bracket to head |
| 6 | 0316497 | SCREW, Bracket to head |
| 7 | 0314147 | CHOKE KNOB |
| 8 | 0312890 | DETENT CHIKE KNOB |
| 9 | 0315258 | HINGE PIN |
| 10 | 0306544 | WASHER |
| 11 | 0301912 | COTER PIN |
| 12 | 0317019 | SPRING, Throttle detent |
| 13 | 0319168 | KNOB, Hi & lo speed |
| 14 | 0320405 | GROMMET, Knob |
| 15 | 0324644 | SCREW, Solecoid mounting |
| 0390137 | 0390137 | DECAL SET |
