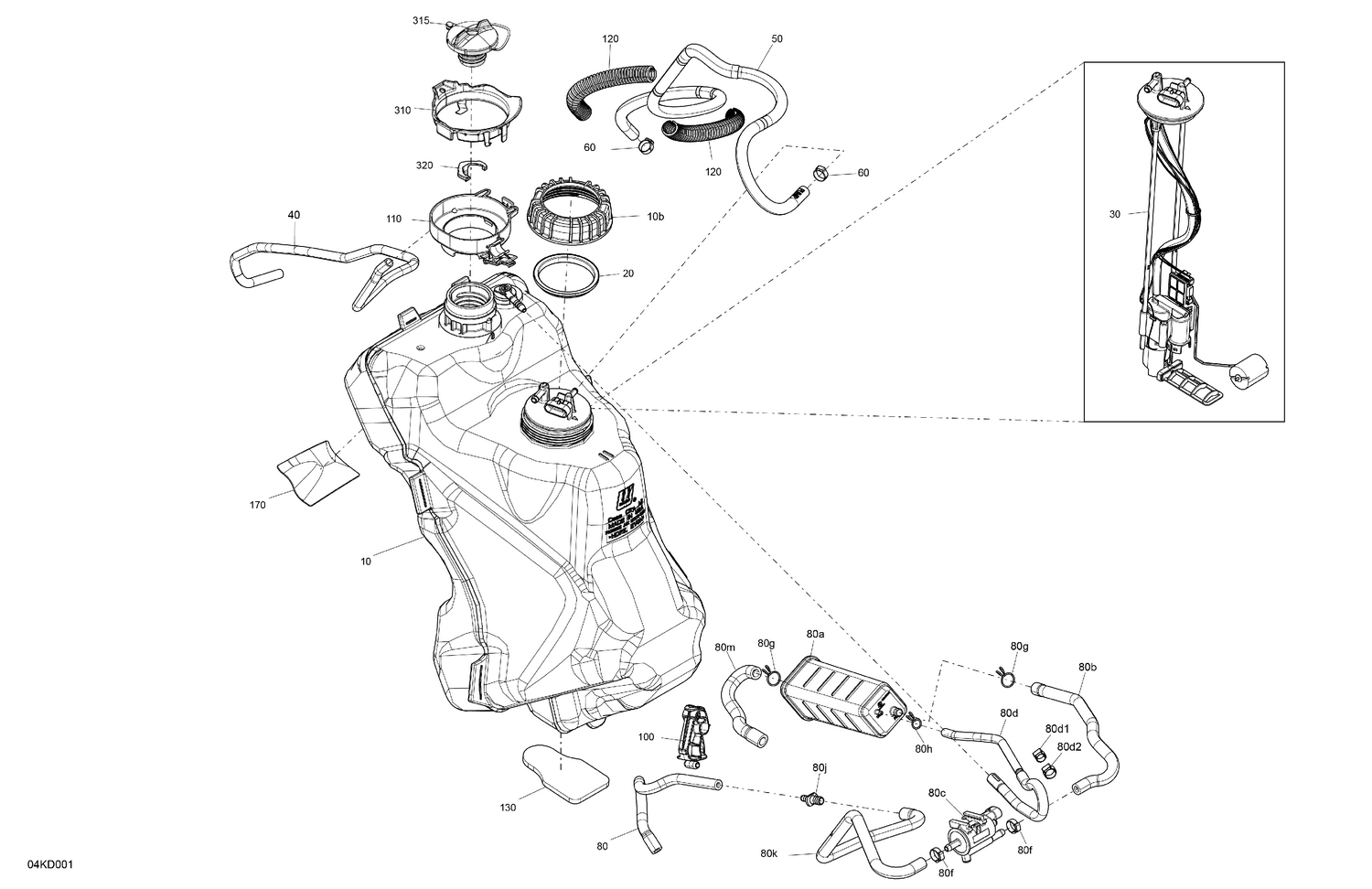

02- Engine - Fuel
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 709000328 | Fuel Pump Module Nut |
| 20 | 709000208 | Seal |
| 40 | 219704391 | Polyurethane Hose 1000mm Long |
| 50 | 709001138 | Hose |
| 60 | 293650047 | Crimp Clamp, 15.3-706R |
| 80a | 709001217 | Vapor Canister |
| 80b | 709001582 | Charcoal Canister Hose This part replaces 709000861. |
| 80c | 709000991 | Bleed Selenoid Valve |
| 80d1 | 293650044 | Oetiker Clamp |
| 80d2 | 293650025 | Oetiker Gear Clamp |
| 80f | 293650047 | Crimp Clamp, 15.3-706R |
| 80g | 293650294 | Hose Clamp 15.5mm-17.5mm (Spring Type) |
| 80h | 293650295 | Hose Clamp 9.8mm-11.5mm (Spring Type) |
| 80j | 709000705 | Flow Reducer |
| 80k | 709000863 | Hose Fuel Vapor |
| 80m | 709000959 | Hose Fuel Vapor |
| 100 | 709001408 | Hose Support |
| 110 | 709001275 | Anchorage Support |
| 120 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 130 | 709001087 | Rubber Pad |
| 170 | 709001115 | Tank Protector |
| 310 | 709001202 | Trim |
| 315 | 709001460 | Fuel Tank Cap |
