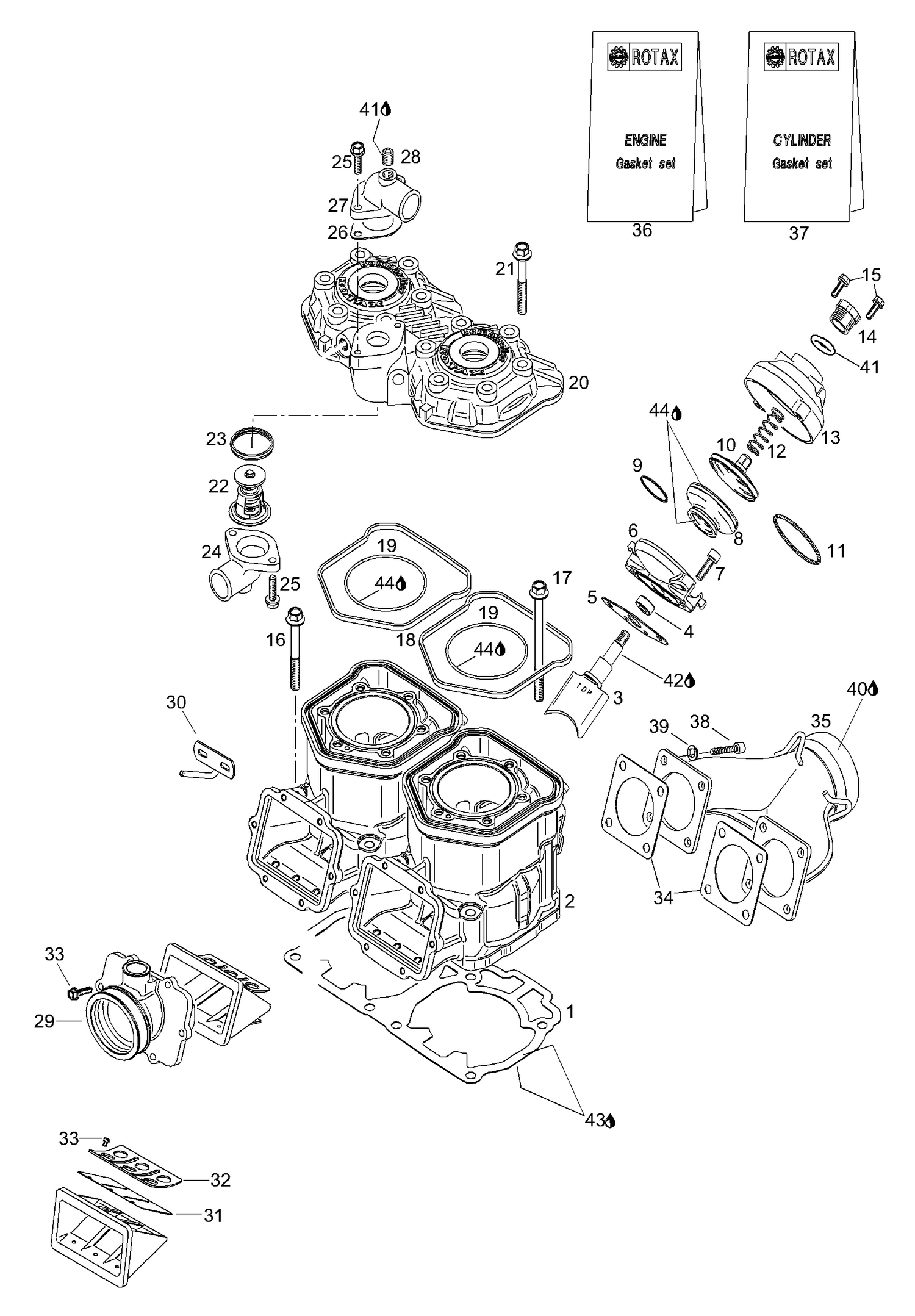

| Ref | Part Number | Description |
|---|
| 1 |
420931837 |
GASKET 0.6 - Call your local BRP dealership |
| 1 |
420931838 |
GASKET 0.5 - Call your local BRP dealership |
| 1 |
420931839 |
GASKET 0.8 - Call your local BRP dealership |
| 1 |
420931964 |
GASKET 0.7 - Call your local BRP dealership |
| 2 |
420923817 |
CYLINDER-NICASIL - Call your local BRP dealership |
| 3 |
420854465 |
EXHAUST VALVE - Call your local BRP dealership |
| 4 |
420931542 |
Gasket |
| 5 |
420430110 |
O-Ring |
| 6 |
420854455 |
Valve rod housing |
| 7 |
205062544 |
Allen Screw M6 x 25 This part replaces 420840861. |
| 8 |
420260729 |
Bellows |
| 9 |
420838255 |
Hose Spring This part replaces 420838253. |
| 10 |
420854449 |
Exhaust valve piston |
| 11 |
420939281 |
Hose Spring This part replaces 420239048. |
| 12 |
420239941 |
SPRING - Call your local BRP dealership |
| 13 |
420911559 |
Valve Cover This part replaces 420911558. |
| 14 |
420241221 |
Adjuster screw This part replaces 420241220. |
| 15 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 16 |
420640524 |
Screw M10 x 80 |
| 17 |
420640534 |
Screw M10 x 120 |
| 18 |
420931590 |
Square ring |
| 19 |
420931410 |
O-Ring |
| 20 |
420923825 |
Cylinderhead, red |
| 21 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 22 |
420922519 |
Thermostat This part replaces 420922518. |
| 23 |
420931272 |
Thermostat gasket |
| 24 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 25 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 26 |
420850339 |
Gasket This part replaces 420850338. |
| 27 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 28 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 29 |
420867874 |
Intake socket |
| 30 |
512059504 |
Hook |
| 34 |
420931850 |
Gasket |
| 35 |
420973710 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 36 |
420888741 |
Gasket set, cylinder |
| 37 |
420888745 |
Gasket set, engine |
| 38 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 39 |
20052 |
Spring washer |
| 40 |
293800090 |
Loctite 82046, 80 ml |
| 41 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 42 |
420297433 |
Molykote slide paste This part replaces 711297433. |
| 43 |
293800038 |
ADHESIVE LOCTITE 518 - Call your local BRP dealership |
