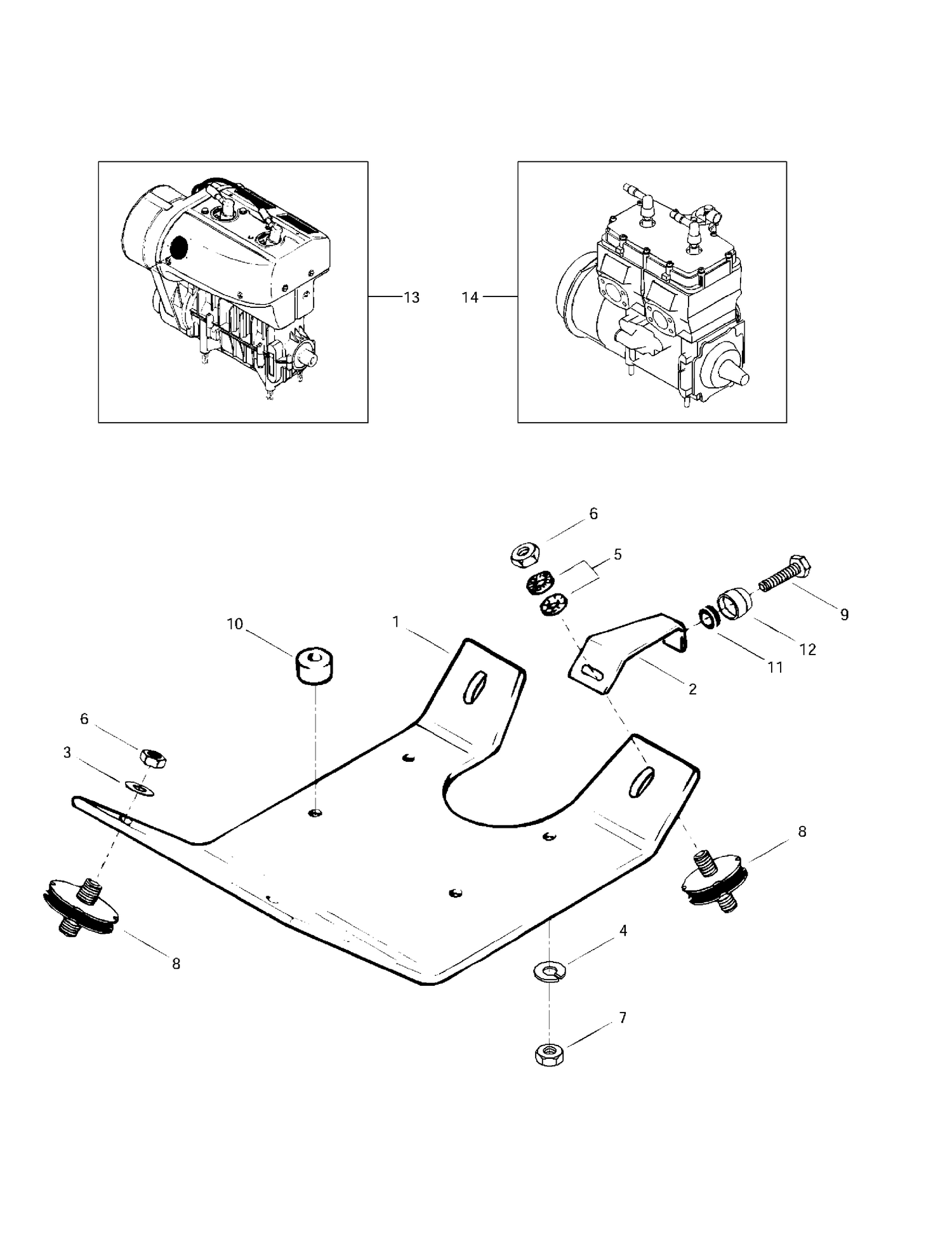

01- Engine Support
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | M539902 | Support |
| 3 | 512056700 | Lock Washer |
| 4 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 5 | M20015 | Lock Washer |
| 6 | 232006414 | Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 7 | M33001 | Nut |
| 8 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 9 | 207183044 | Hex. Screw M8 X 30 This part replaces 222083065. |
| 11 | M2846014 | Rubber Washer |
| 12 | 605449240 | SLEEVE - Call your local BRP dealership This part replaces M5440091. |
