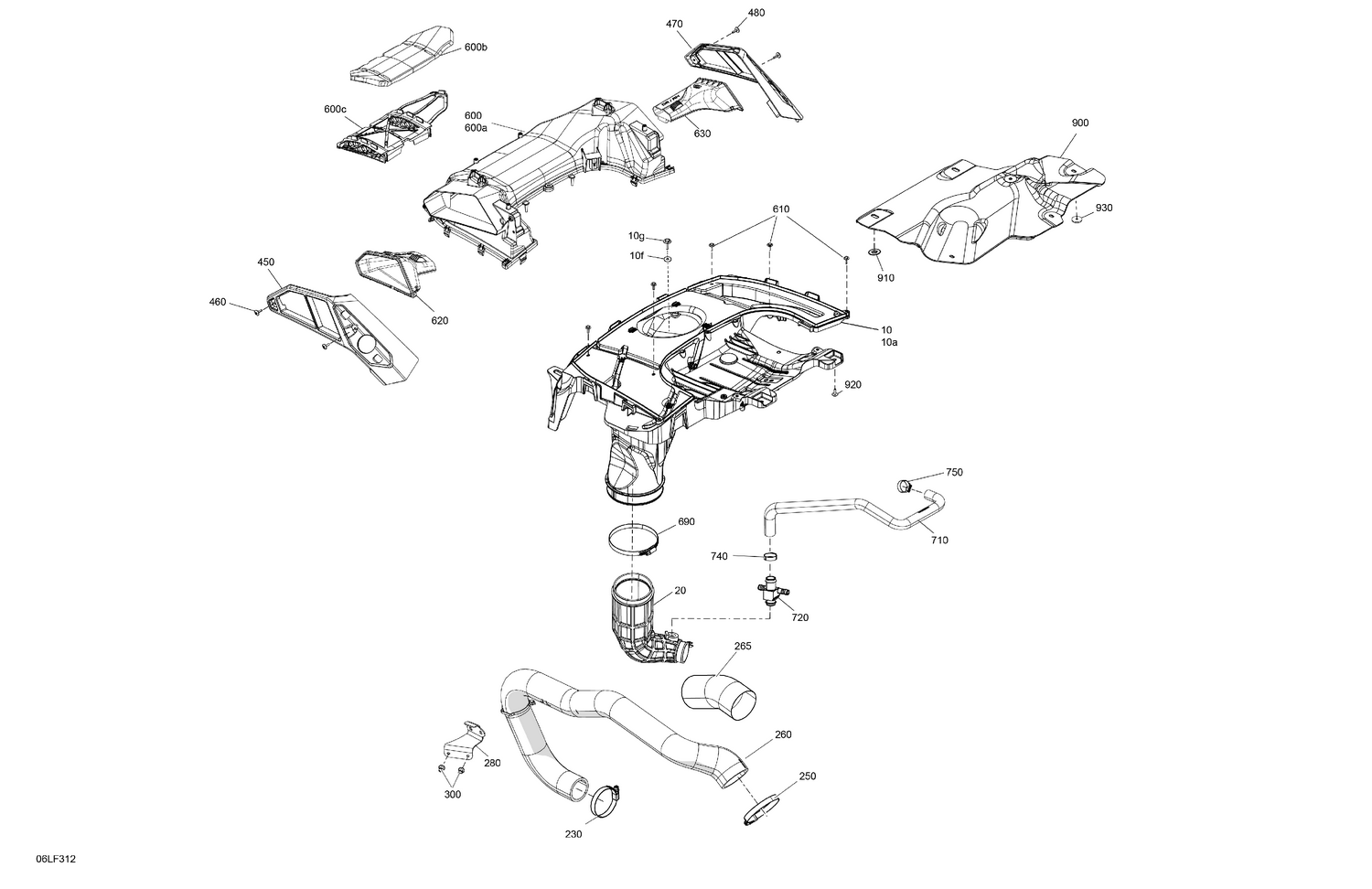

02- Engine - Air Intake
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 508001366 | Molded Multi Purpose Plate |
| 10f | 224060201 | Flat Washer |
| 10g | 250000725 | Screw M4 X 16 |
| 20 | 508001297 | Intake Silencer |
| 230 | 293650303 | Mounting Clamp |
| 250 | 293650302 | Mounting Clamp |
| 260 | 508001320 | Inlet Hose |
| 265 | 508001033 | Protector Tube |
| 280 | 508001180 | Hose Support |
| 300 | 390909100 | Avex Rivet |
| 450 | 508001136 | LH Air Filter |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508001137 | RH Air Filter |
| 480 | 250000889 | Screw M4 X 16 |
| 600a | 508001289 | Upper Intake Silencer Duct |
| 600b | 508001224 | Acoustic Insolation |
| 600c | 508001222 | Foam Support |
| 610 | 250000725 | Screw M4 X 16 |
| 620 | 508001199 | LH Upper Resonator |
| 630 | 508001200 | RH Resonator |
| 690 | 514052924 | Norma gear clamp |
| 710 | 508001272 | Vent Hose |
| 720 | 508001278 | Molded Breather |
| 740 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 750 | 293650172 | Tridon Gear Clamp |
| 900 | 508001263 | Acoustic Panel |
| 910 | 508000853 | Push Nut |
| 920 | 250000725 | Screw M4 X 16 |
