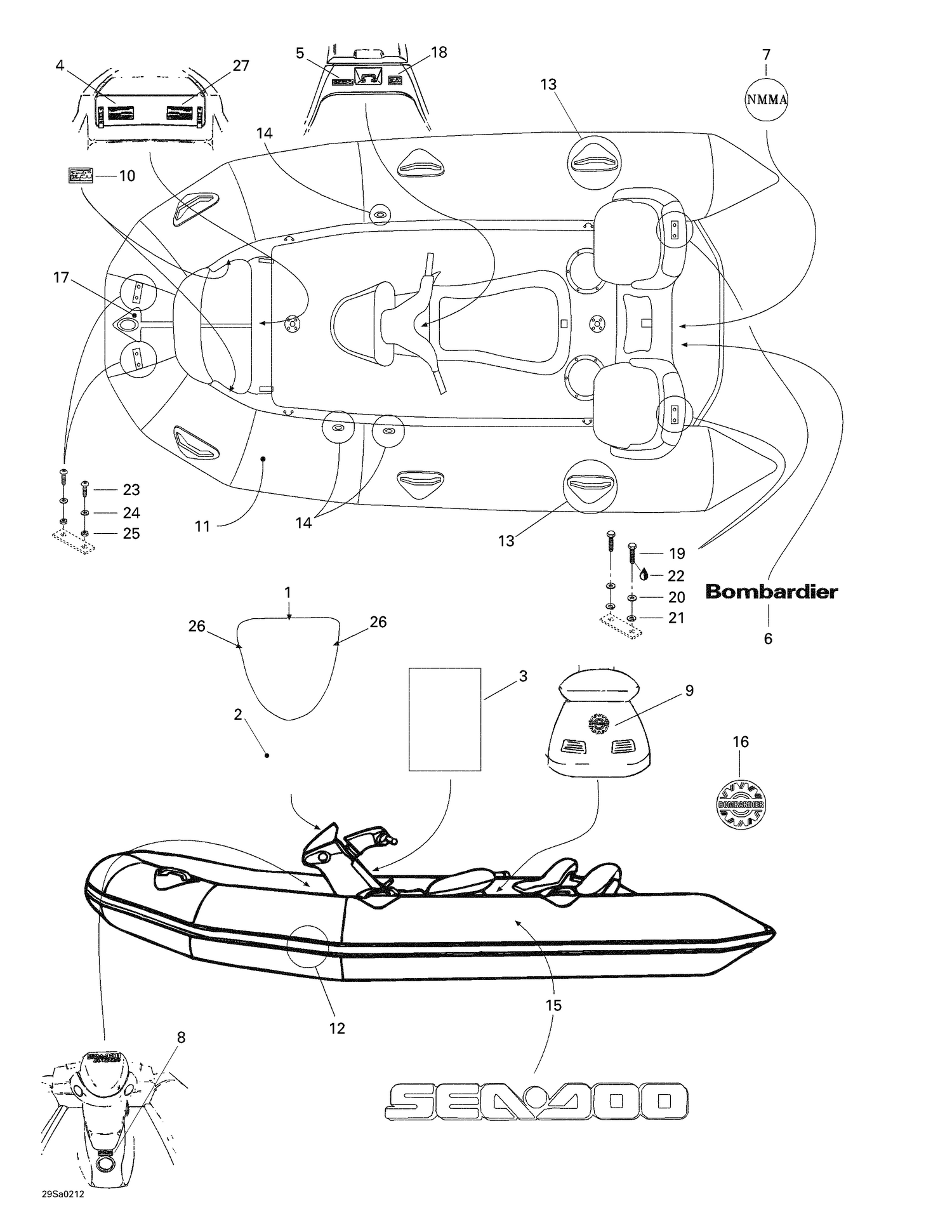

09- Decals And Flottation Tube
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204901088 | Sea-Doo Explorer Decal |
| 2 | 204900921 | Dash Decal |
| 3 | 204900929 | CONSOLE DECAL - Call your local BRP dealership |
| 4 | 204900932 | Exemption Decal |
| 5 | 219900965 | Warning Decal (Battery) |
| 6 | 204900939 | Bombardier Decal |
| 9 | 219901180 | Bombardier Logo, Rear |
| 10 | 204900465 | Warning Label, Bow Seat |
| 12 | Not | Available As Spare Part - Strip Protector |
| 13 | 292000202 | Handle Grip |
| 14 | 204000041 | Valve |
| 15 | 204901087 | Sea-Doo Logo |
| 16 | 204900928 | Bombardier Decal |
| 17 | Not | Available As Spare Part - Front Lamp Support |
| 18 | Not | Available As Spare Part - E.P.A. Label |
| 19 | 207163060 | Hex. Screw M6 X 30 |
| 20 | 234062600 | Flat Washer M6, Stainless |
| 21 | 234161601 | Lock Washer Helical M6 |
| 22 | 293800060 | Loctite 243, 10 ml |
| 23 | 208563560 | Phillips Screw M6 X 35 |
| 24 | 234061600 | Stainless Flat Washer M6 |
| 25 | 232561600 | Hex. Elastic Stop Nut M6 |
| 26 | 204900941 | Windshield Decal L.H |
| 204900942 | Windshield | Decal R.H 204900942 |
