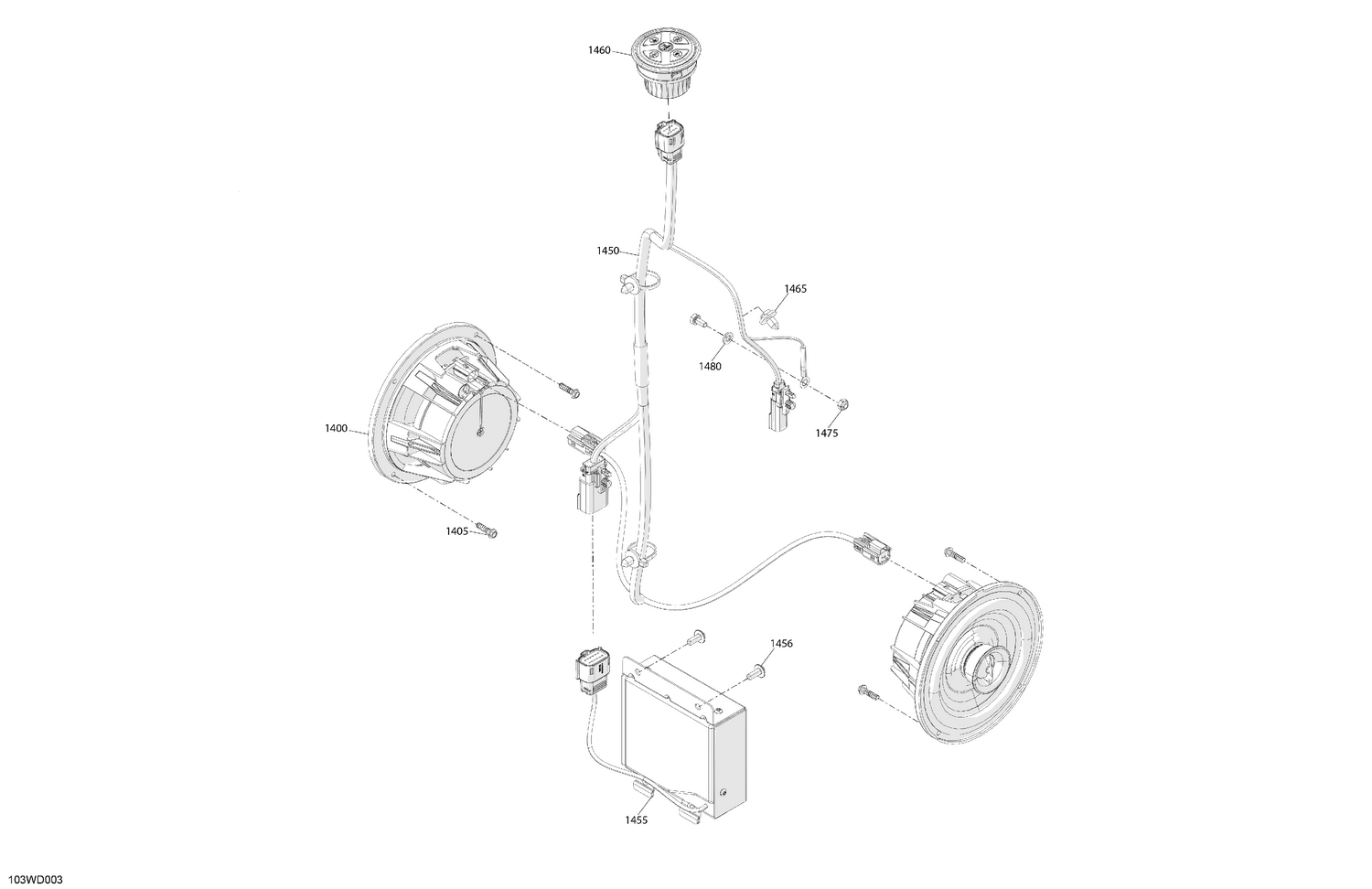

09- MECHANICS - AUDIO - Audio System
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1400 | 278003873 | Loudspeaker |
| 1405 | 241152060 | Hex. Flange Screw K50 X 20 |
| 1450 | 278004447 | Speaker Wiring Harness |
| 1455 | 278004313 | Audio Amplifier |
| 1456 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 1460 | 278003465 | Audio Control |
| 1465 | 710008294 | Mount Dart |
| 1475 | 232561200 | Brass Elastic Stop Nut M6 |
