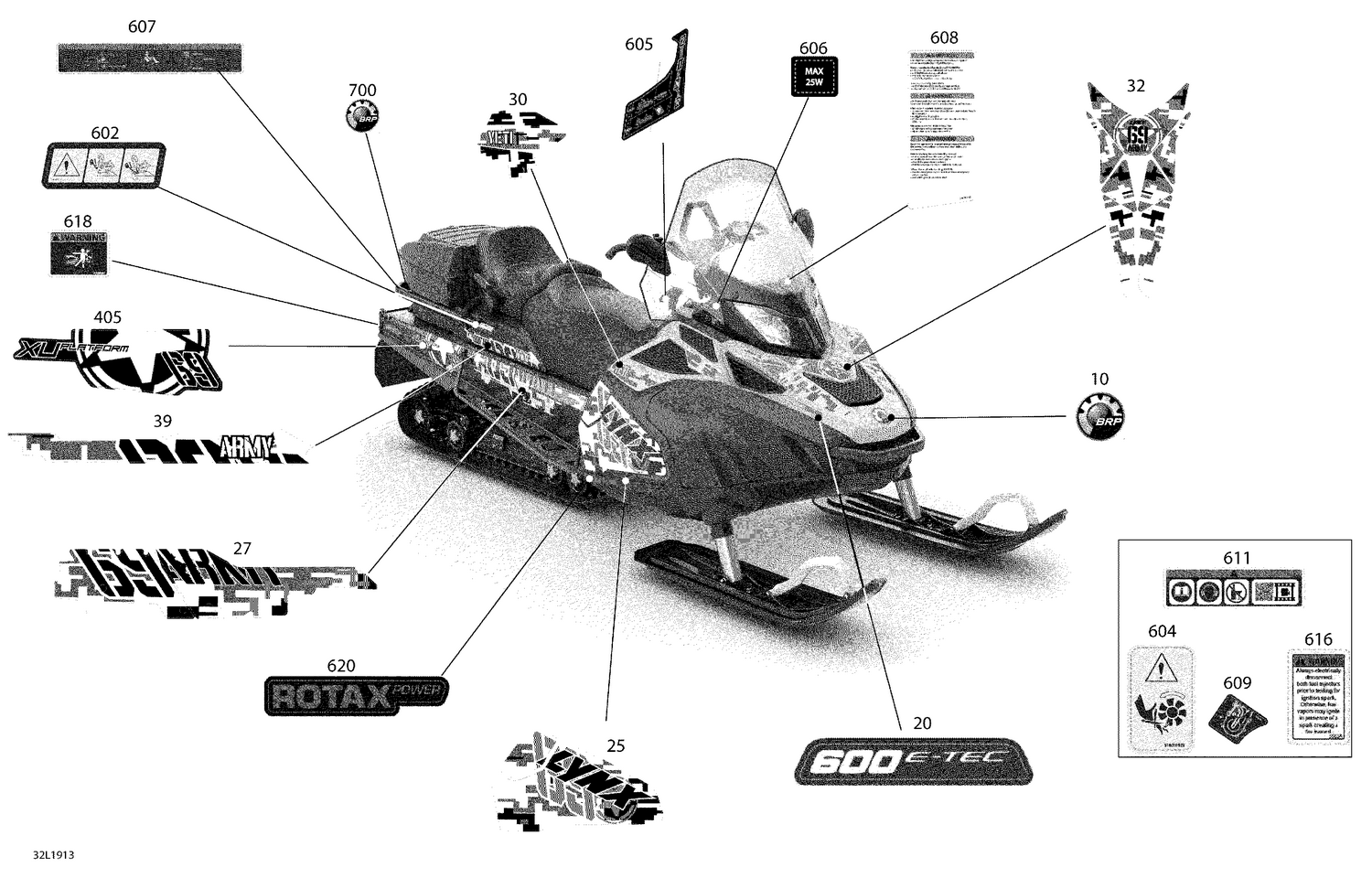

09- Decals - STD
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 516008739 | BRP Logo, 68mm |
| 20 | 516007156 | Hood Decal "600 E-Tec" |
| 25 | 516008247 | Side Panel Decal "Lynx 69" |
| 27 | 516008248 | Frame Decal "69 Army" |
| 30 | 516008249 | Acces Panel Decal " YETI " |
| 32 | 516008250 | Hood Decal |
| 39 | 516008251 | Storage Box Decal ARMY |
| 405 | 516008252 | Frame Decal " 69 XU Platform " |
| 602 | 516005111 | Instruction Decal, Back Seat Locking |
| 604 | 516003923 | WARNING DECAL - Call your local BRP dealership |
| 605 | 516004294 | Instruction Label, Transmission |
| 606 | 516003918 | Power Outlet Decal (25W) |
| 607 | 516008675 | Warning Label |
| 608 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 609 | 516003925 | Checking Label, Transmission |
| 611 | 516009225 | Warning Decal Europe |
| 616 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 618 | 516007584 | Warning Decal |
| 620 | 516008760 | Rotax Power Decal |
