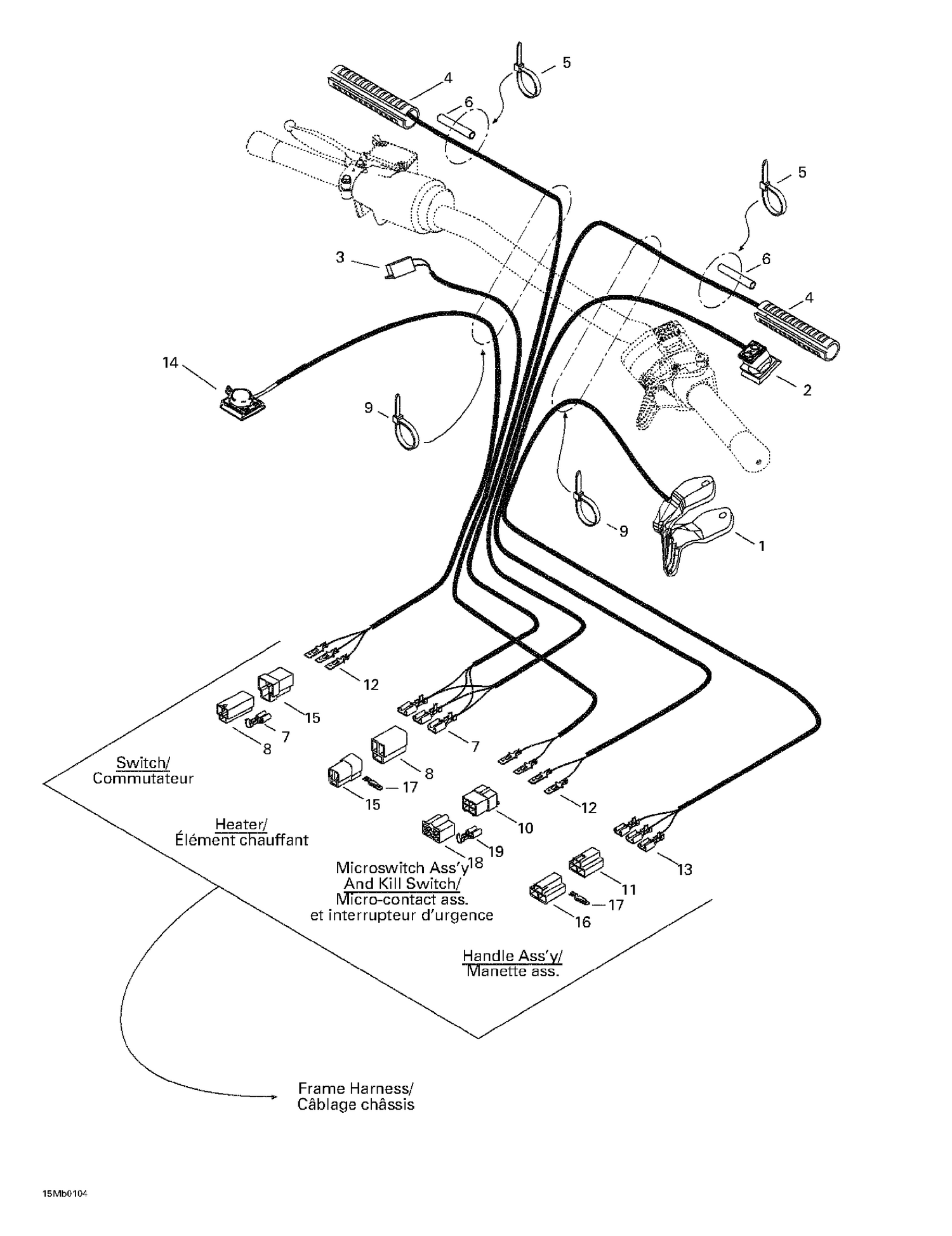

| Ref | Part Number | Description |
|---|
| 1 |
512059624 |
Handle Ass’Y This part replaces 512059145. |
| 2 |
515177362 |
Emergency Stop Switch This part replaces 512059146. |
| 3 |
415085700 |
Brake Switch |
| 4 |
515175573 |
Heating Grip This part replaces 515175387. |
| 5 |
293750001 |
Tie Wrap 94 mm |
| 6 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 7 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 8 |
409204300 |
Female Housing |
| 9 |
414115200 |
Tie-Rap 180 mm |
| 10 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 11 |
409008500 |
Female Terminal Housing (3 circuits) |
| 12 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 13 |
515175253 |
FEMALE TERMINAL - Call your local BRP dealership |
| 14 |
415085800 |
Dimmer Switch |
| 15 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 16 |
409008600 |
Male Terminal Housing (3 circuits) |
| 17 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 18 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
