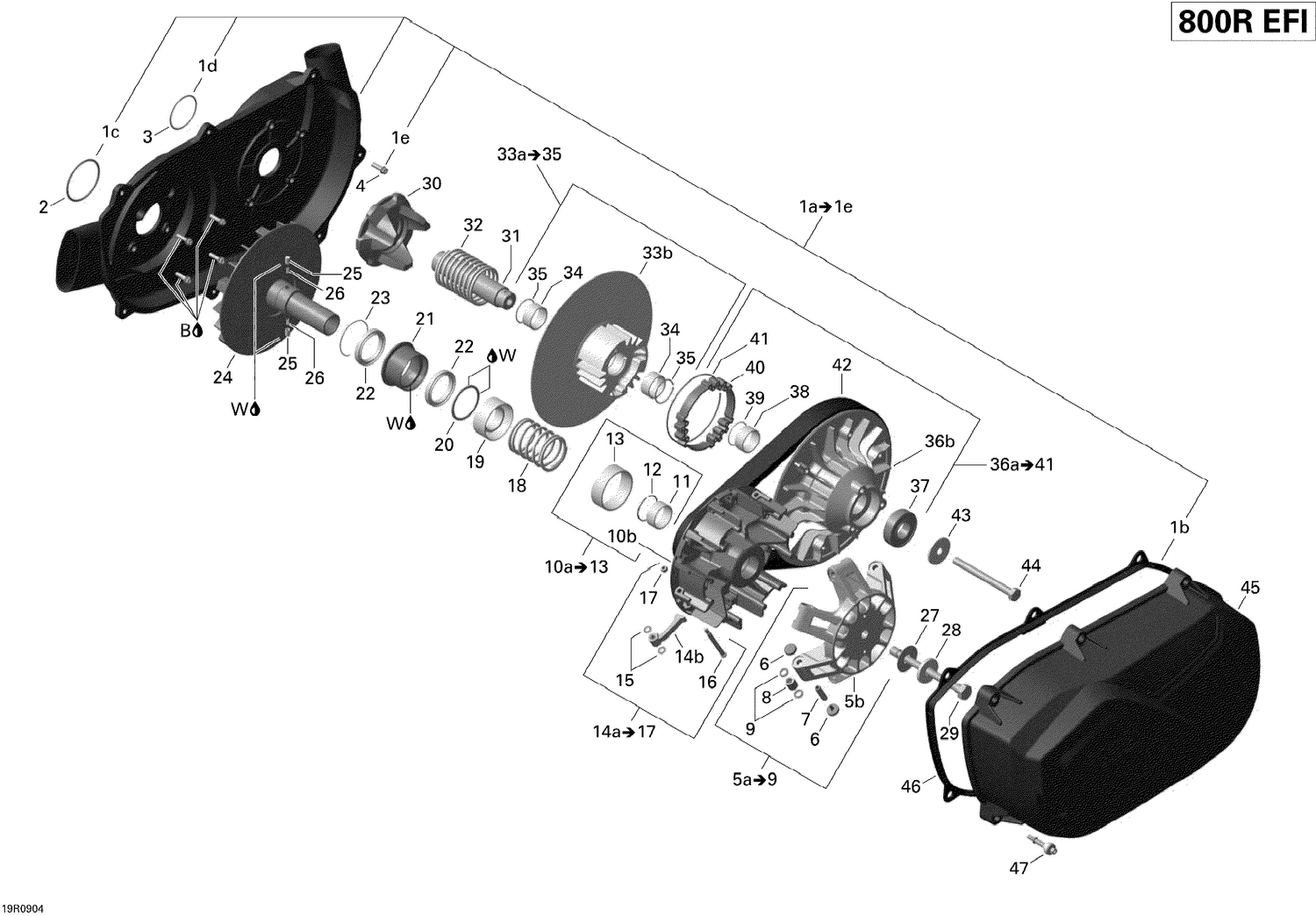

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| 1b |
420430126 |
Gasket This part replaces 420430123. |
| 1c |
420430409 |
O-Ring This part replaces 420430407. |
| 1d |
420631089 |
O-Ring This part replaces 420631087. |
| 1e |
420441311 |
Hex.Screw M6 X 20 This part replaces 420940566. |
| 2 |
420430409 |
O-Ring This part replaces 420430407. |
| 3 |
420631089 |
O-Ring This part replaces 420631087. |
| 4 |
420441311 |
Hex.Screw M6 X 20 |
| 5b |
Not |
Available As Spare Part - Governor Cup |
| 6 |
420281296 |
Slider Shoe Set This part replaces 420281293. |
| 7 |
417223257 |
Roller Axle This part replaces 420233893. |
| 8 |
417223767 |
Roller This part replaces 420229997. |
| 9 |
417223767 |
Roller This part replaces 420626231. |
| 10b |
Not |
Available As Spare Part - Outer Half |
| 11 |
Not |
Available As Spare Part - Bushing |
| 12 |
Not |
Available As Spare Part - Retaining Ring |
| 13 |
Not |
Available As Spare Part - Bushing |
| 14b |
Not |
Available As Spare Part - Lever |
| 15 |
Not |
Available As Spare Part - Thrust Washer |
| 16 |
Not |
Available As Spare Part - Screw M5 |
| 17 |
Not |
Available As Spare Part - Lock Nut M5 |
| 18 |
420238610 |
Compression Spring, Drive Pulley |
| 19 |
420627578 |
Seat Spring This part replaces 420627574. |
| 20 |
420460430 |
Friction Washer |
| 21 |
420257195 |
Drive Pulley Clutch |
| 22 |
420632377 |
Ball Bearing This part replaces 420632375. |
| 23 |
420245951 |
Retaining Ring |
| 24 |
420280374 |
Inner Half |
| 25 |
420229577 |
Spring Sleeve |
| 26 |
420239134 |
Spring This part replaces 420239133. |
| 27 |
420627920 |
Thrust Washer |
| 28 |
420627768 |
Spring Washer This part replaces 420627765. |
| 29 |
420641859 |
Hex. Screw M12 X 140 This part replaces 420641855. |
| 30 |
420280473 |
Cam This part replaces 420280198. |
| 31 |
420220914 |
Driven Pulley Shaft |
| 32 |
420238176 |
Compression Spring |
| 33b |
Not |
Available As Spare Part - Sliding Pulley |
| 34 |
Not |
Available As Spare Part - Bushing |
| 35 |
Not |
Available As Spare Part - Retaining Ring |
| 36b |
Not |
Available As Spare Part - Outer Half Pulley |
| 37 |
420932421 |
Ball Bearing |
| 38 |
Not |
Available As Spare Part - Bushing |
| 39 |
Not |
Available As Spare Part - Retaining Ring |
| 40 |
420660124 |
Torque Gear This part replaces 420660121. |
| 41 |
420245911 |
Retaining Ring This part replaces 420245910. |
| 42 |
422280366 |
V-Belt This part replaces 715000302. |
| 43 |
420627594 |
Thrust Washer This part replaces 420627590. |
| 44 |
420441485 |
Hex. Screw M10 X 110 This part replaces 420941909. |
| 45 |
420611397 |
Variator Cover This part replaces 420611390. |
| 46 |
420430126 |
Gasket This part replaces 420430123. |
| 47 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 420440560. |
