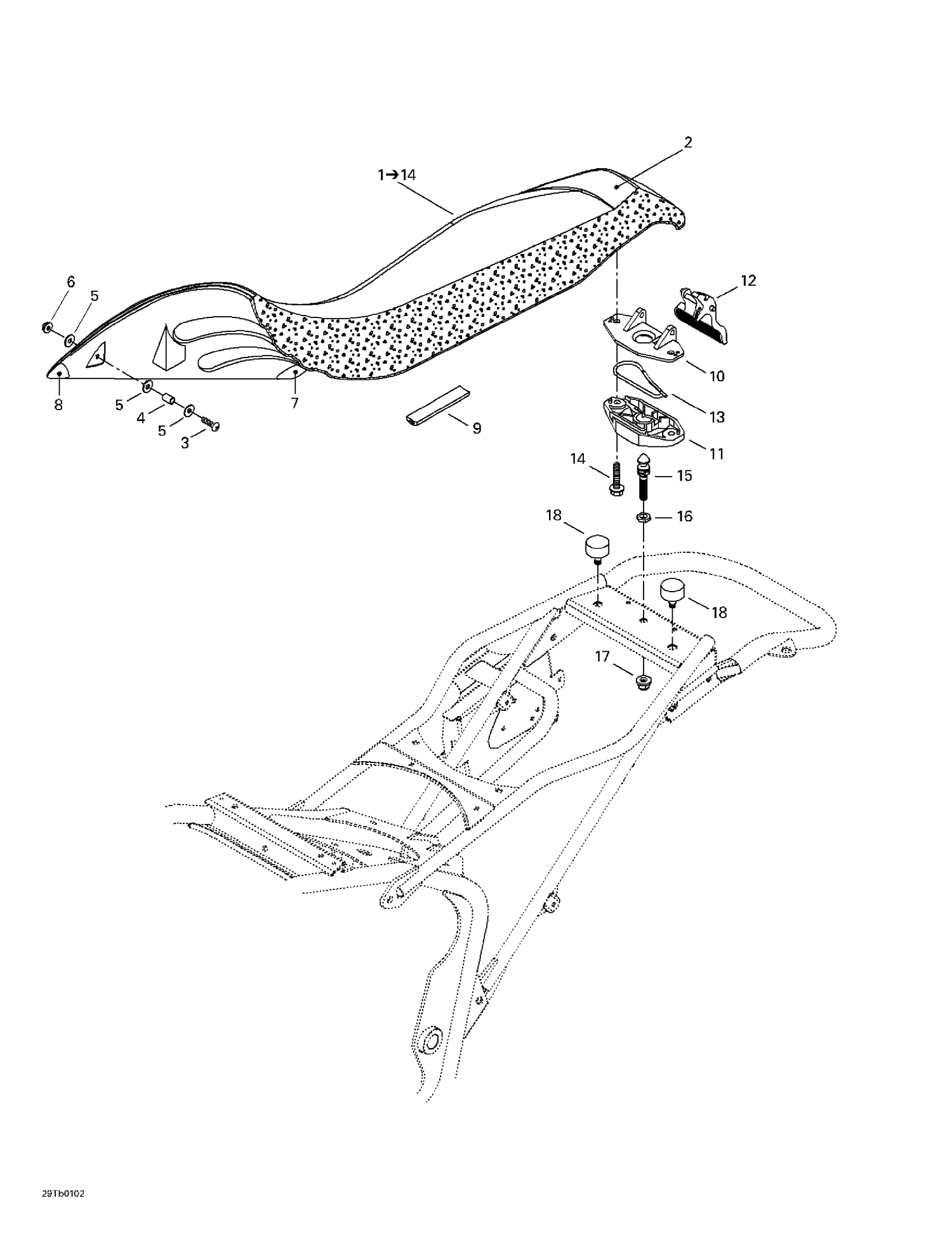

| Ref | Part Number | Description |
|---|
| 2 |
708000033 |
Seat Cover |
| 3 |
250000046 |
SCREW M6 X 30 - Call your local BRP dealership |
| 4 |
708000049 |
SPACER - Call your local BRP dealership |
| 5 |
224061201 |
Flat Washer |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
708000035 |
Seat Corner |
| 8 |
708000036 |
LH Seat Corner |
| 9 |
219704368 |
Seal Tray 1000Mm Long |
| 10 |
269700109 |
Latch Ass'y This part replaces 269700020. |
| 11 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 12 |
269700109 |
Latch Ass'y This part replaces 269000016. |
| 13 |
269700017 |
Latch Spring |
| 14 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 15 |
291000689 |
LATCH STUD - Call your local BRP dealership |
| 16 |
232100600 |
Hex. Jam Nut M10 |
| 17 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 708000037 |
Coin |
De Siège DR 708000037 |
| 708000037 |
RH |
Seat Corner 708000037 |
