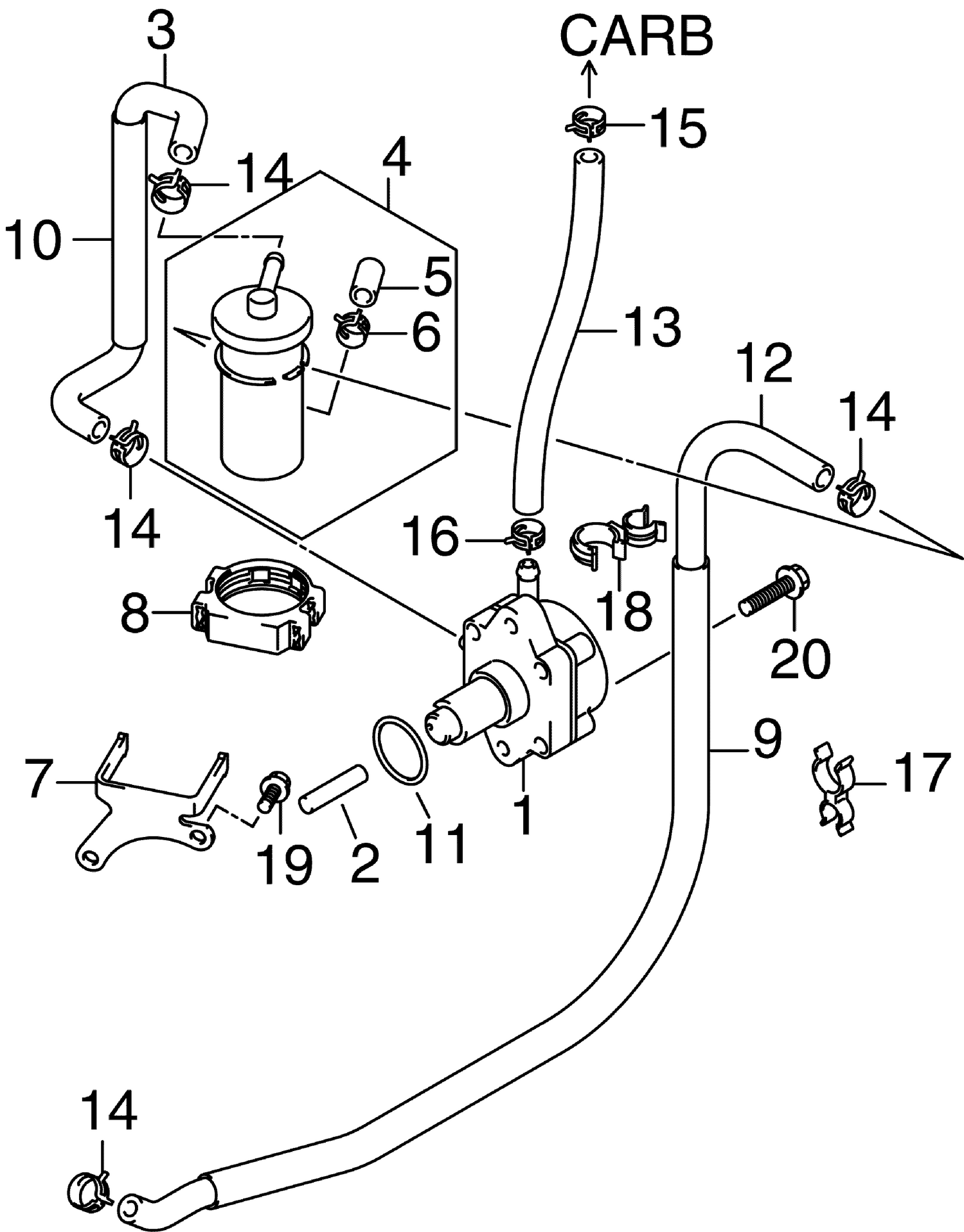

FUEL PUMP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036889 | PUMP ASSY, FUEL |
| 2 | 5030698 | ROD, FUEL PUMP |
| 3 | 5036890 | HOSE, FUEL (FILTER TO PUMP) |
| 4 | 5035974 | FILTER, Fuel |
| 7 | 5036892 | BRACKET, FUEL FILTER |
| 8 | 5036893 | BRACKET, FUEL FILTER |
| 9 | 5030753 | PROTECTOR (CONN TO CYL) (L:560mm) |
| 10 | 5036894 | PROTECTOR, Fuel hose |
| 11 | 5030540 | JOINT TORIQUE |
| 12 | 5030565 | HOSE, Connector to filter |
| 13 | 5036895 | HOSE, Pump to carburetor |
| 15 | 5036897 | CLIP |
| 16 | 5036898 | CLIP |
| 17 | 5033630 | CLAMP |
| 18 | 5035360 | CLAMP |
