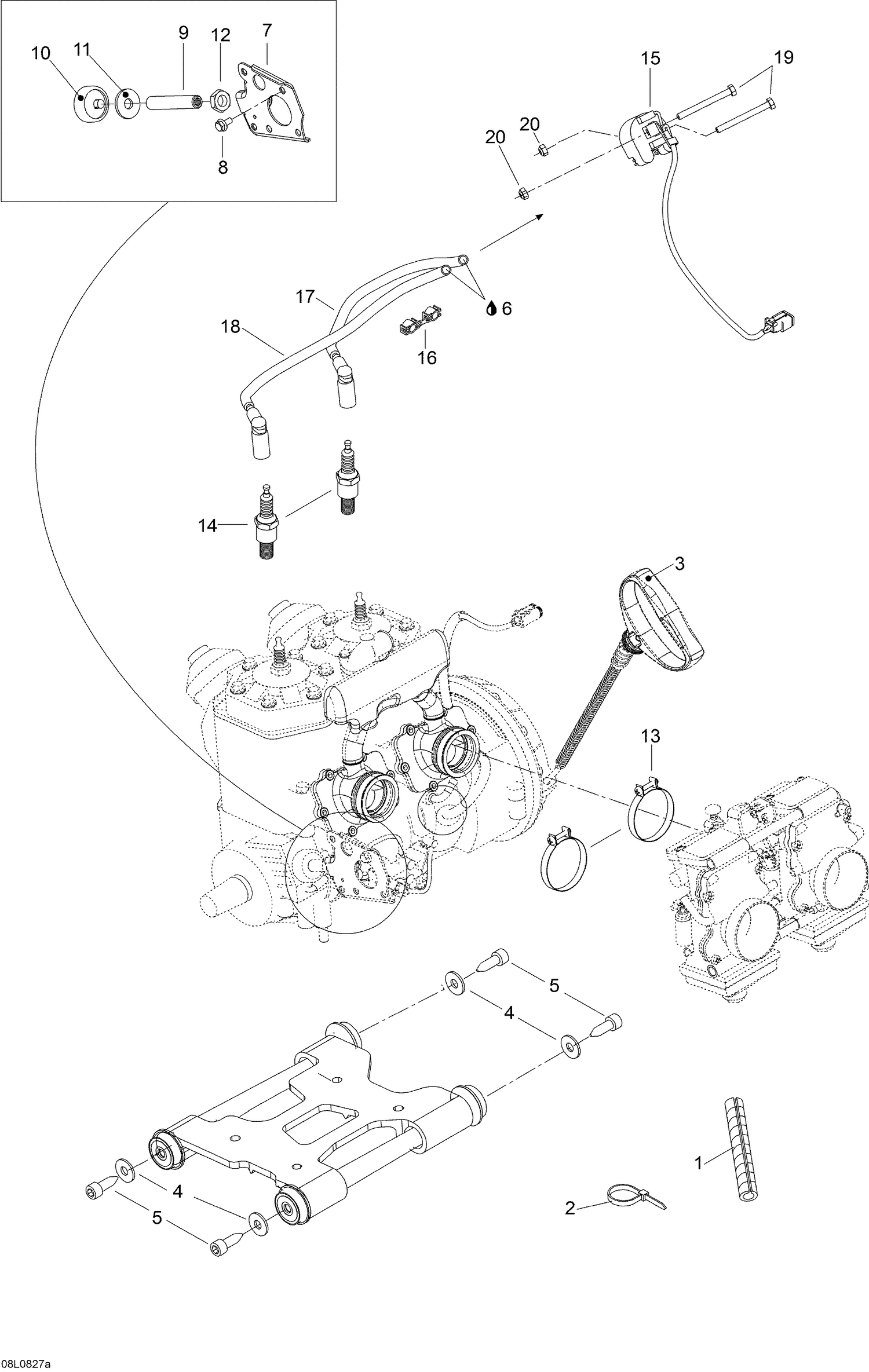

01- Engine And Engine Support
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 27127 | Tube |
| 2 | 414115200 | Tie-Rap 180 mm This part replaces 27026. |
| 3 | 572084400 | Grip |
| 4 | 250200014 | Flat Washer This part replaces 506151251. |
| 5 | 250000252 | TORX SCREW M10 X 50 - Call your local BRP dealership |
| 7 | 512059840 | PLATE - Call your local BRP dealership |
| 8 | 40327 | Hex. screw M6 x 12 |
| 9 | 250500007 | STOPPER SCREW - Call your local BRP dealership |
| 10 | 512059610 | STOPPER - Call your local BRP dealership |
| 11 | 512059057 | WASHER - Call your local BRP dealership |
| 12 | 232170411 | Nut M14 |
| 13 | 512059835 | Clamp |
| 13 | 605639003 | Hose |
| 14 | 415128524 | Spark Plug NGK BR9ECS |
| 15 | 512059968 | Ignition coil |
| 16 | 410914600 | Plastic clip |
| 17 | 512059695 | CABLE ASSY, 300 MM - Call your local BRP dealership |
| 18 | 512059696 | Ignition cable, 375 mm |
| 19 | 40084 | Screw M6 x 45 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
