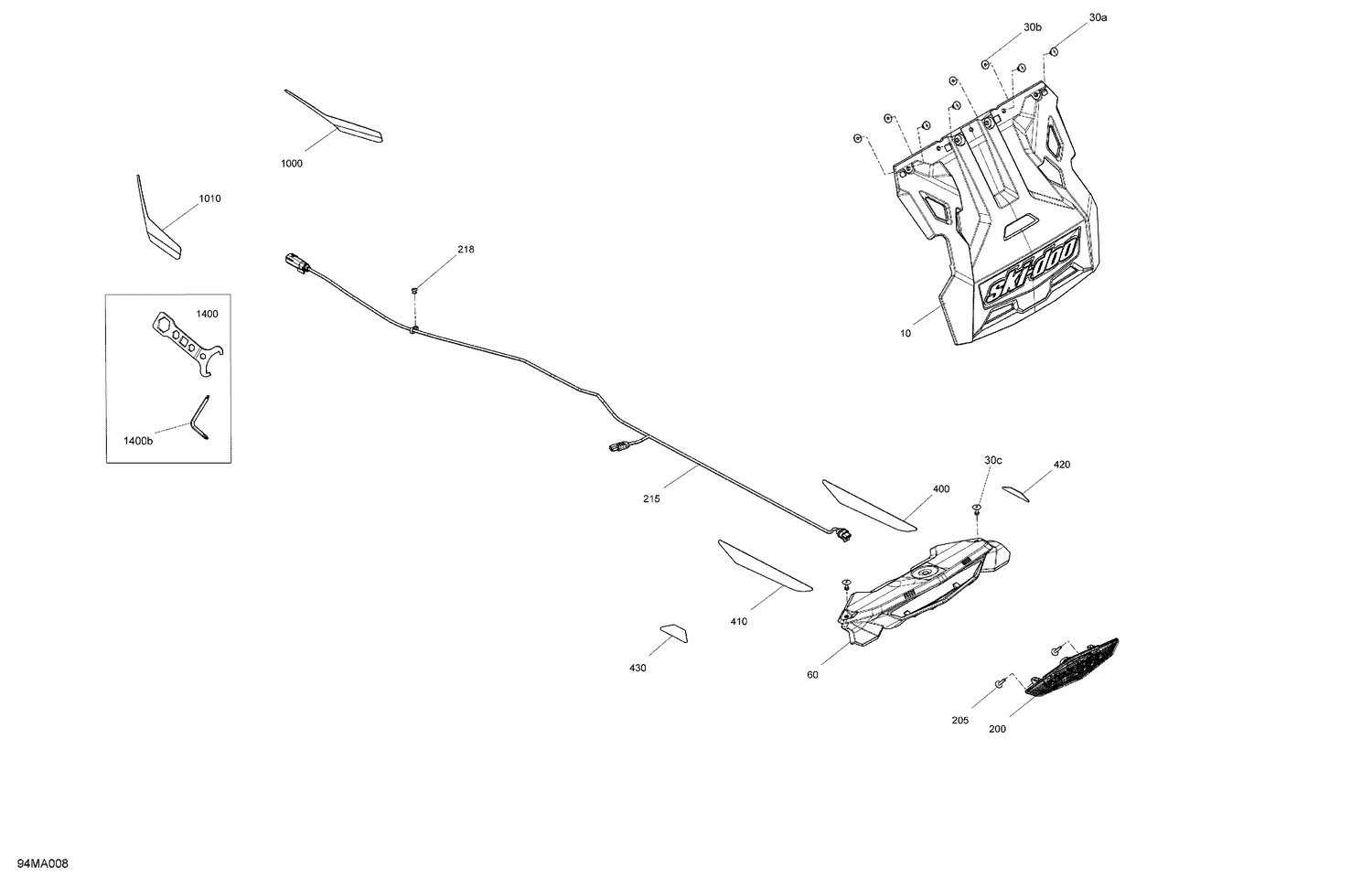

09- Miscellaneous - Utilities
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002106 | Snow Guard |
| 30a | 293150104 | Pop Rivet 3/16" |
| 30b | 517124300 | Washer |
| 30c | 293150100 | Pop Rivet 3/16" |
| 60 | 520001487 | Light Fairing |
| 200 | 520001143 | Rear Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178266 | Rear Light Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 420 | 520001842 | Red, RH Rear Reflector |
| 430 | 520001860 | Red, LH Rear Reflector |
| 1000 | 520002444 | RH Front Reflector |
| 1010 | 520002443 | LH Front Reflector |
