Parts Catalog

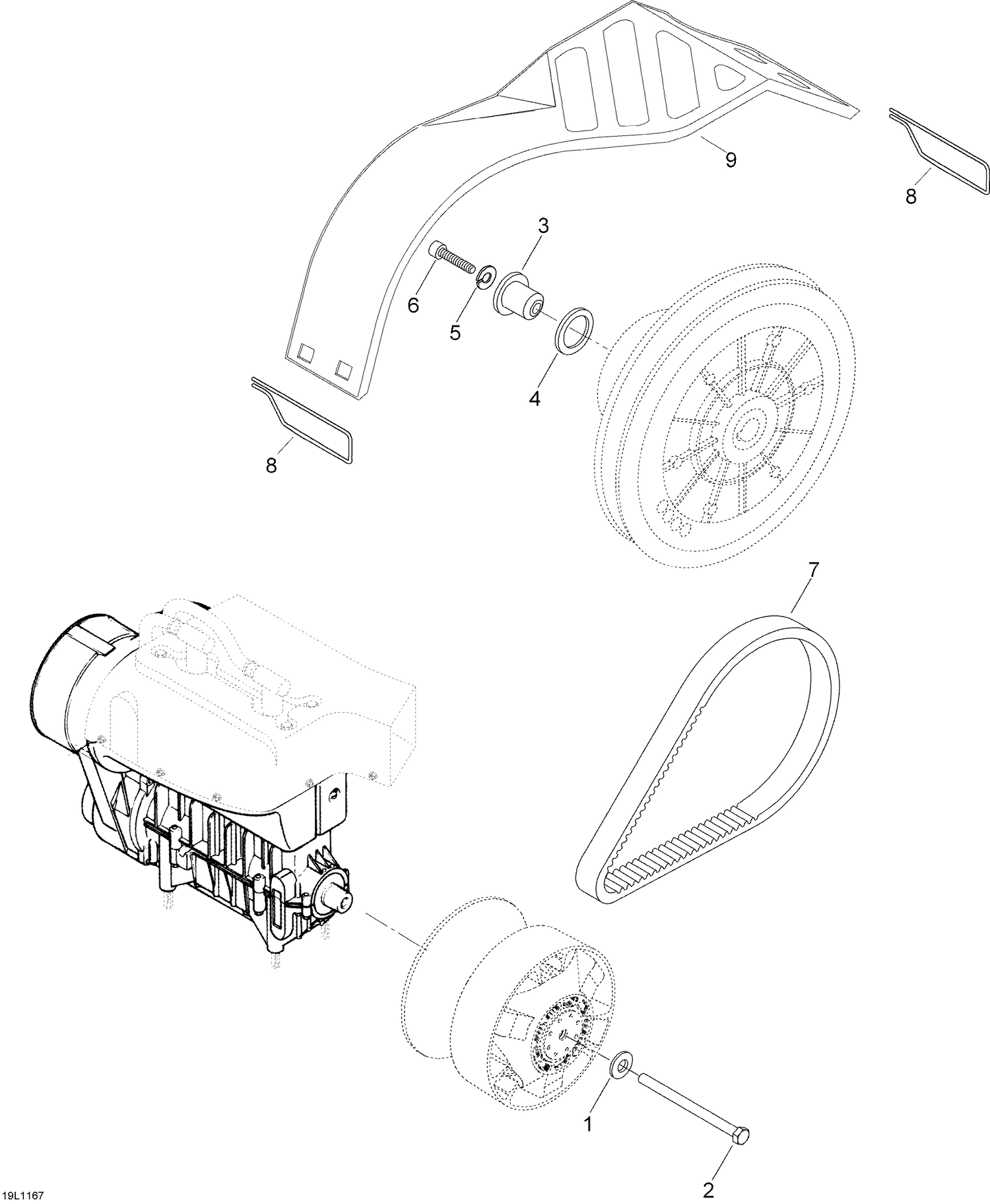

05- Pulley System

Parts (8)

Ref	Part Number	Description
1	250200005	Conical Spring Washer M12
2	417113800	BOLT - Call your local BRP dealership
3	5443765	Shaft extension
4	3125351	Shim
5	20014	Lock washer A8
6	40290	Socket head screw M8 x 55
7	605348425	Drive Belt
8	5442726	Pin
