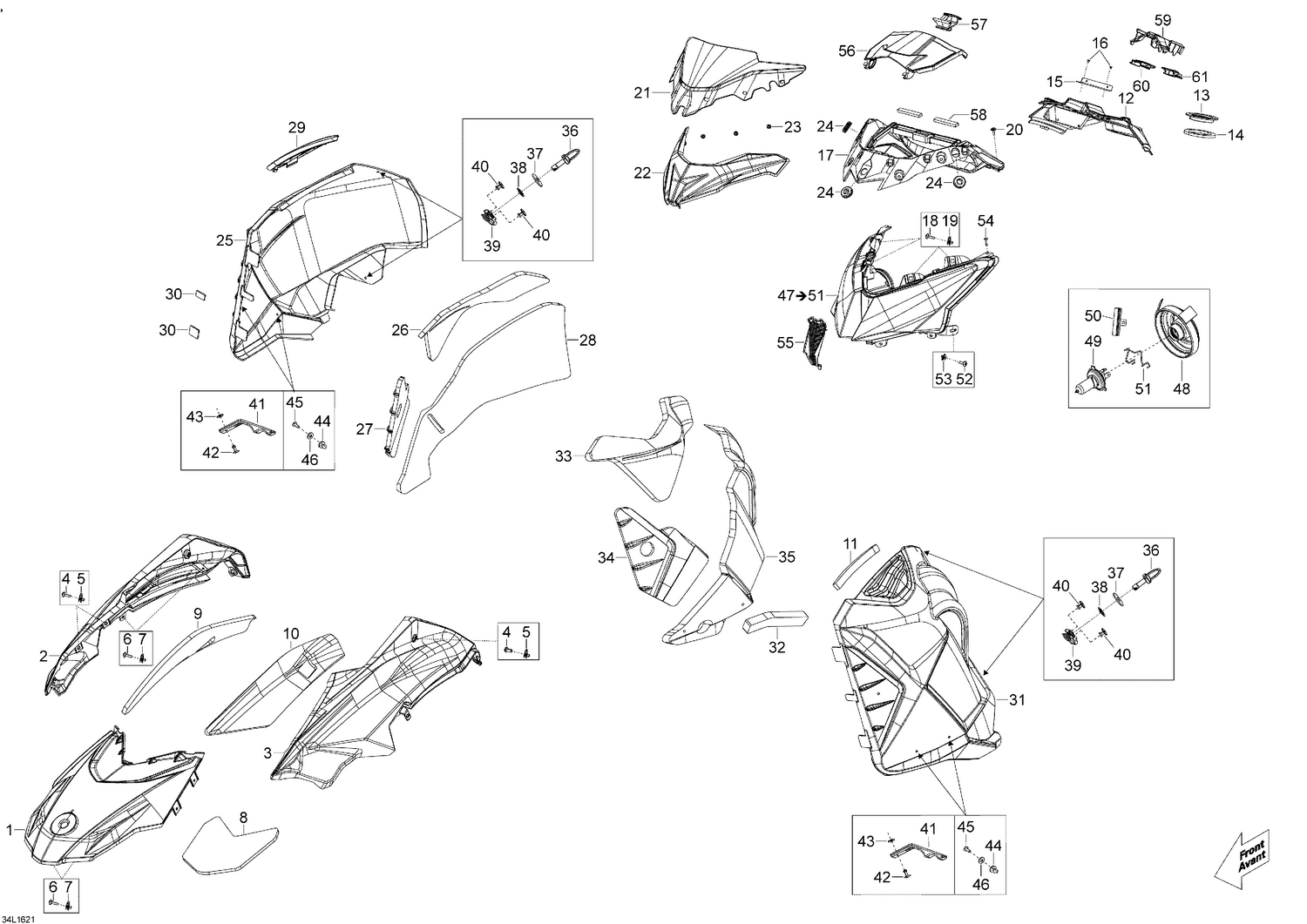

09- Hood And Windshield
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517305604 | Red Hood |
| 2 | 517305537 | Red RH Hood |
| 3 | 517305536 | Red LH Hood |
| 4 | 250000528 | Torx Screw M5 X 20 |
| 5 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 6 | 250000528 | Torx Screw M5 X 20 |
| 7 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 8 | 517305480 | Foam |
| 9 | 517305481 | Foam |
| 10 | 517305482 | Foam |
| 11 | 517305820 | Foam |
| 12 | 517305517 | Console Rear |
| 13 | 517304518 | Console Nut |
| 14 | 517305639 | Thread Flange Spacer |
| 15 | 517305640 | Handle Plate |
| 16 | 36005 | Rivet |
| 17 | 517305512 | Indicator Support |
| 18 | 250000528 | Torx Screw M5 X 20 |
| 19 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 20 | 250000587 | Torx Screw M5 X 26 |
| 21 | 860200901 | Windshield (135) |
| 22 | 517305307 | Support |
| 23 | 732610072 | Push Nut |
| 24 | 517303756 | Grommet |
| 25 | 517306030 | RH Panel |
| 26 | 517305995 | Foam |
| 27 | 517305996 | Foam |
| 28 | 517305998 | Foam |
| 29 | 517305251 | Grill |
| 30 | 514054987 | Heat Shield |
| 31 | 517306031 | LH Panel |
| 32 | 517305821 | Foam |
| 33 | 517305999 | Foam |
| 34 | 517305997 | Foam |
| 35 | 517306000 | Foam |
| 36 | 513033735 | Quarter Turn Fastener |
| 37 | 20117 | Washer |
| 38 | 732610072 | Push Nut |
| 39 | 513033736 | Quarter Turn Fastener Plate |
| 40 | 293150122 | RIVET_POP 1/8 X ,375 - Call your local BRP dealership |
| 41 | 570027100 | Hood Latch |
| 42 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 43 | 517124300 | Washer |
| 44 | 517245800 | Knob |
| 45 | 250000742 | Torx Screw M5 X 14 |
| 46 | 250200025 | Washer M5 |
| 48 | 219400070 | Cap |
| 49 | 515176274 | H4 Halogen Bulb (60/55W, 12V) |
| 50 | 219800282 | Holder Bracket |
| 51 | 219800281 | Spring |
| 52 | 250000528 | Torx Screw M5 X 20 |
| 53 | 250100035 | Jack Nut M5 |
| 54 | 250000725 | Screw M4 X 16 |
| 55 | 517305350 | Cap |
| 56 | 517304912 | Cover |
| 57 | 517304917 | Latch |
| 58 | 517305157 | Seal Joint |
| 59 | 517304970 | Support |
| 60 | 517305147 | Deep Black, Support Console Cap |
