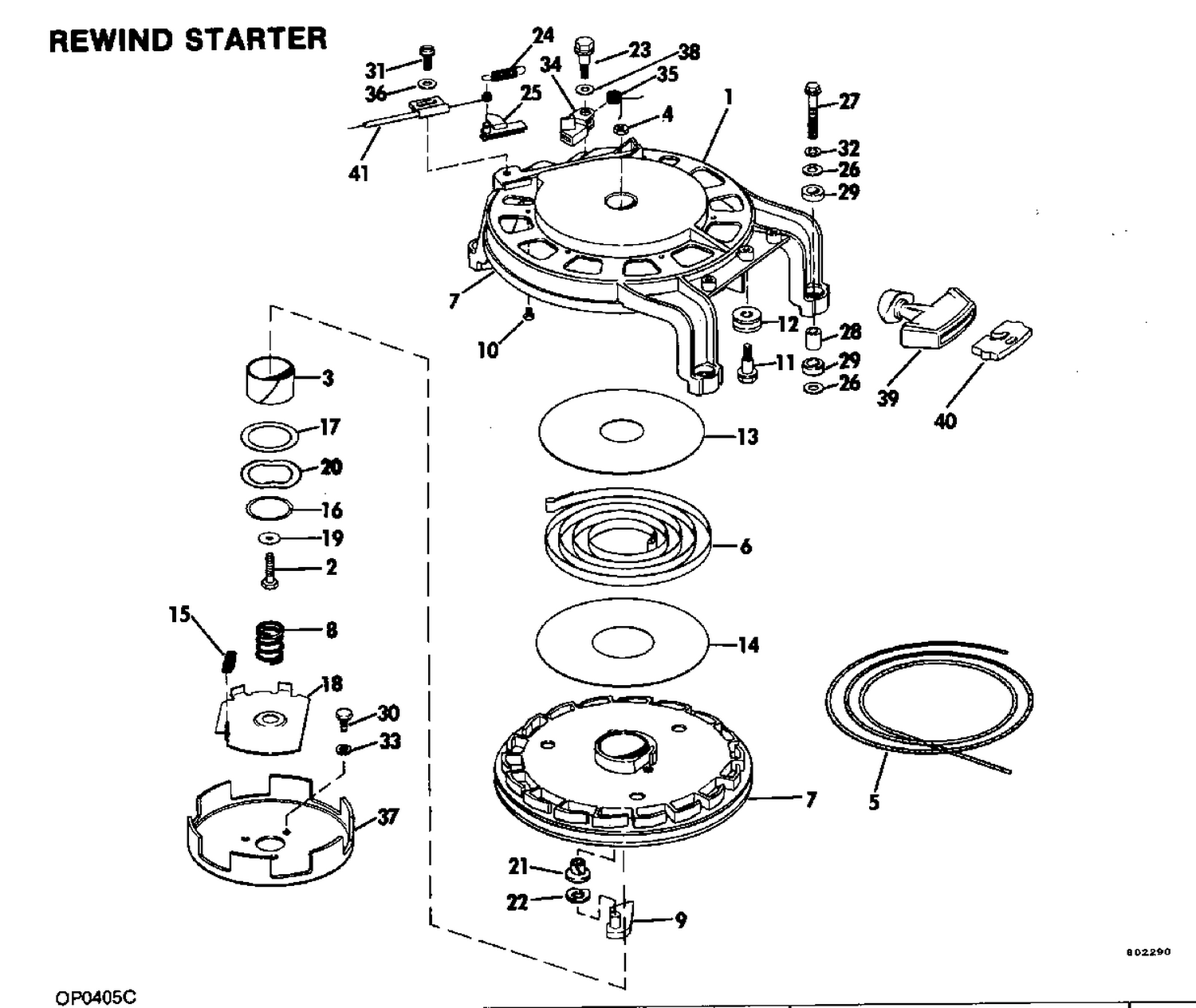

| Ref | Part Number | Description |
|---|
| 2 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 5 |
ROPE |
Ref: 6 0325431 *SPRING, Starter 0325431 |
| 25 |
0330338 |
SLIDE This part replaces 0326133. |
| 27 |
0326248 |
SCREW |
| 28 |
0326129 |
SLEEVE |
| 29 |
0326130 |
GROMMET |
| 31 |
0310093 |
SCEW, Plate, steering friction |
| 34 |
0326127 |
LOCKOUT LEVER, Starter assy |
| 35 |
0326128 |
SPRING |
| 37 |
0329211 |
RATCHET This part replaces 0326110. |
| 38 |
0326609 |
RONDELLE, levier de verrouillage |
| 39 |
0326249 |
HANDLE, Starter |
| 0390596 |
0438104 |
RECOIL STARTER Assy This part replaces 0390596. |
