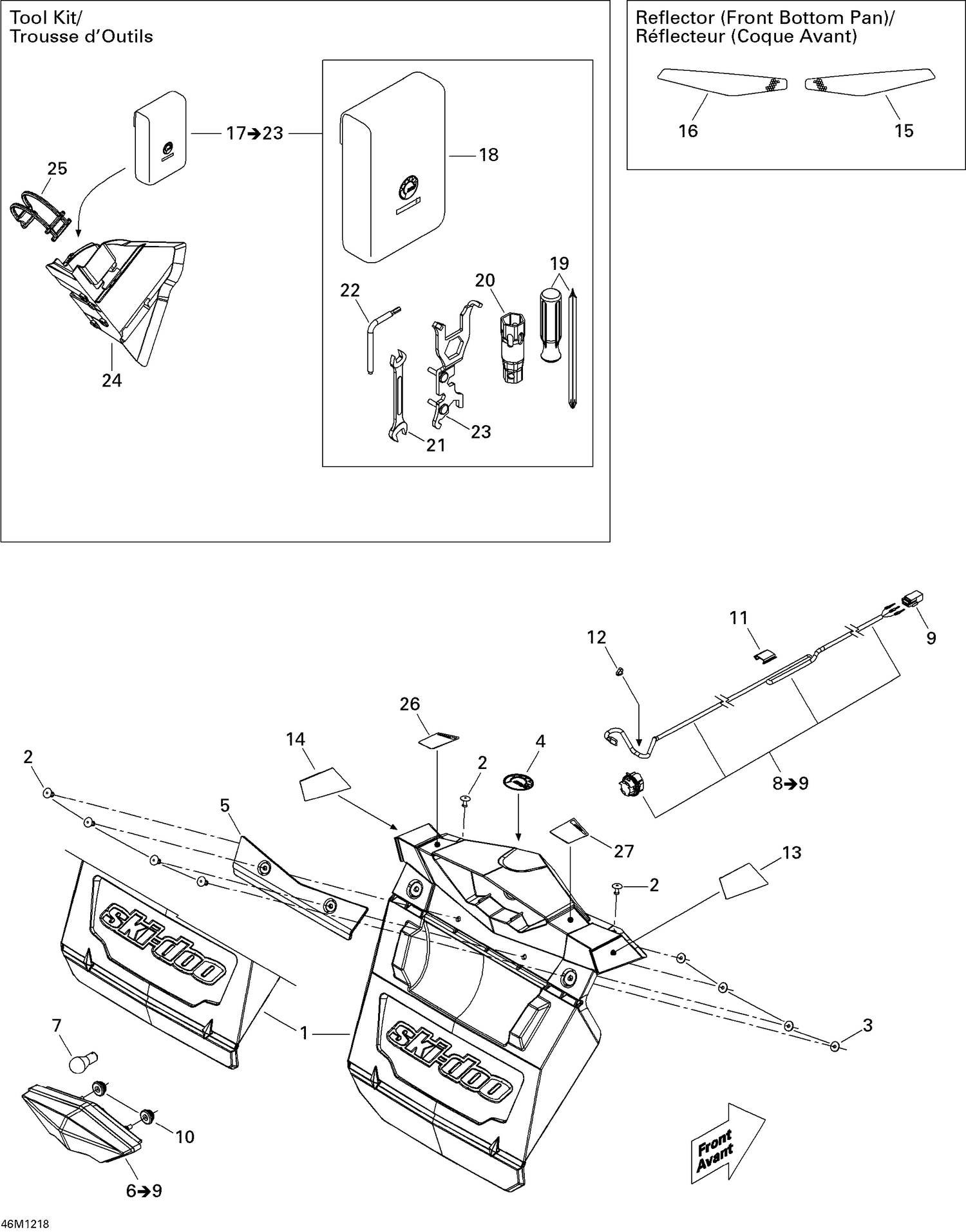

| Ref | Part Number | Description |
|---|
| 2 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3 |
517124300 |
Washer |
| 4 |
219903305 |
BRP Logo 48 mm |
| 5 |
520000751 |
Reinforcement |
| 7 |
520000758 |
Bulb |
| 9 |
515175494 |
Male Housing, 3 Circuits |
| 10 |
705014429 |
Rubber Stopper This part replaces 705003666. |
| 11 |
520000829 |
Radiator Trim |
| 12 |
293750002 |
Tie Wrap 142 mm |
| 15 |
520000759 |
RH FRONT REFLECTOR - Call your local BRP dealership |
| 16 |
520000760 |
LH FRONT REFLECTOR - Call your local BRP dealership |
| 18 |
Not |
Available As Spare Part - Tool Bag |
| 19 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - Socket Wrench, 16/21 mm |
| 21 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 22 |
520001142 |
Spacing Tool |
| 23 |
520000988 |
WRENCH SUSPENSION - Call your local BRP dealership |
| 24 |
520000720 |
TOOL KIT RACK - Call your local BRP dealership |
| 25 |
520000528 |
Latch |
| 26 |
516005057 |
WARNING DECAL, SAFETY - Call your local BRP dealership This part replaces 516004550. |
