Home / BRP / 2019 / SKI-DOO - BACKCOUNTRY Series / 002 - BACKCOUNTRY 850 E-TEC, 2019 000UGKA00 000UGKB00 000UXKA00 000UXKB00 000UXKC00 000UXKD00 000UXKE00 000UXKF00 000UXKG00 000UXKH00 000UXKJ00 000UXKK00 000UXKL00 000UXKM00 000UXKN00 000UYKA00 000UYKB00 000UYKC00 000UYKD00 000UYKE00 000UYKF00 000UYKG00 000UYKH00 000UYKJ00 000UYKK00 000UYKL00 000UYKM00 / 01- Crankcase

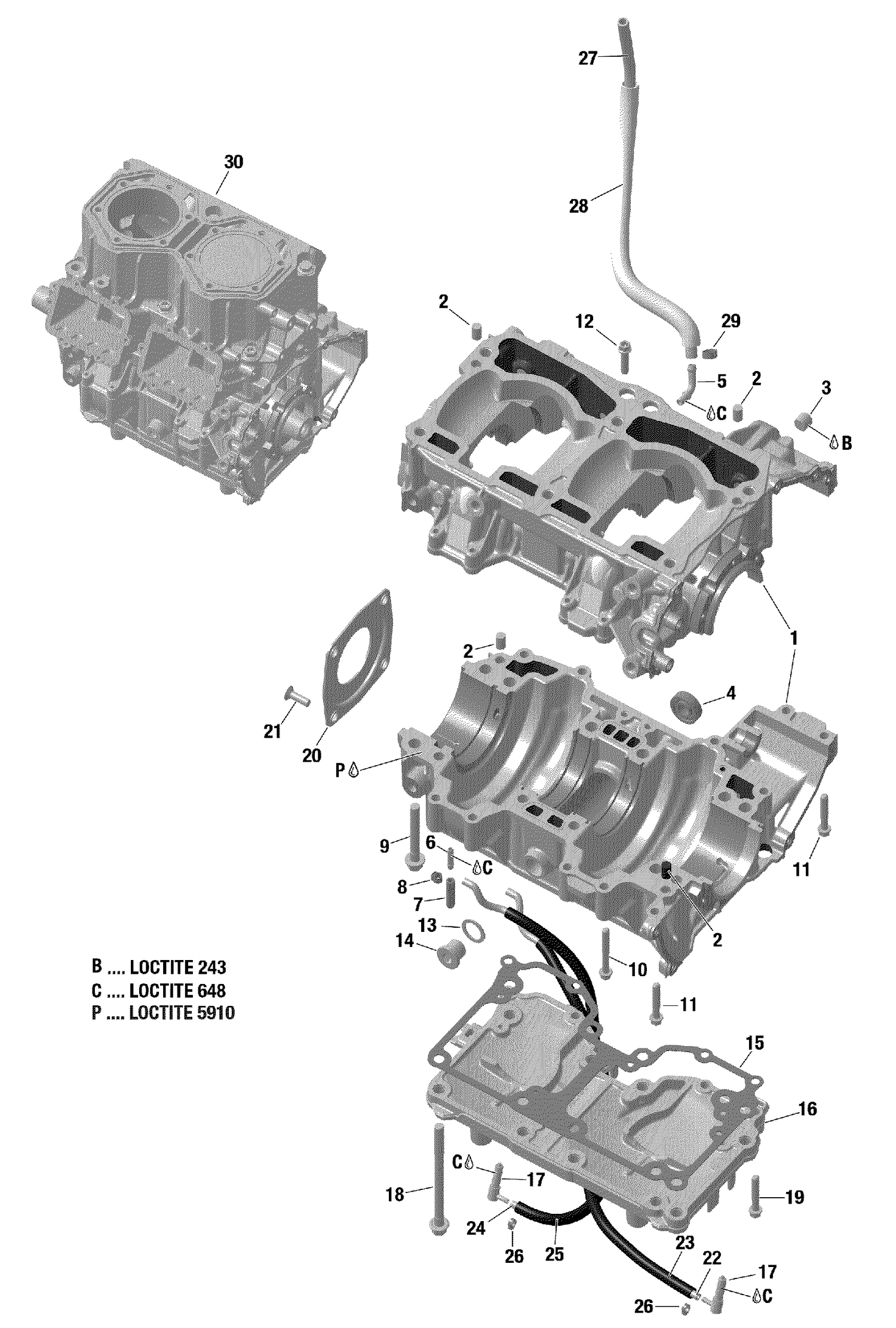

01- Crankcase

01- Crankcase

Parts (29)

RefPart NumberDescription
2 420632010 Center Pin 8 X 12
3 420840658 Plug Screw M12x1,5
4 420232100 Ball Bearing
5 420924802 Fittin 90D This part replaces 420924523.
6 420924159 Fitting
7 420960771 Closure Cap
8 420853138 Clamp 5.8-7.0MM
9 420941627 Hex. Screw M8 X 56.5
10 420440324 Torx Flange Screw M6 X 45
11 420440274 Torx Flange Screw M6 X 35
12 420440234 Torx Flange Screw M6 X 25
13 420430622 O-Ring
14 420640457 Plug Screw
15 420430072 Engine Support Gasket
16 420812688 Engine Support
17 420956511 Check Valve This part replaces 420956510.
18 420941518 Screw M8x105 This part replaces 420941517.
19 420440274 Torx Flange Screw M6 X 35
20 420812422 Oil Seal Cover This part replaces 420812421.
21 420941436 Screw M6 X 20
22 420201928 Oil Line 585 mm This part replaces 420201541.
23 420460042 Tube 390MM
24 420201928 Oil Line 585 mm This part replaces 420201542.
25 420460042 Tube 390MM
26 420851508 Clamp
27 420201551 Oil Line 310MM
28 420460047 Protector Tube
29 420853653 Clamp
30 420084914 Engine This part replaces 421000730.
