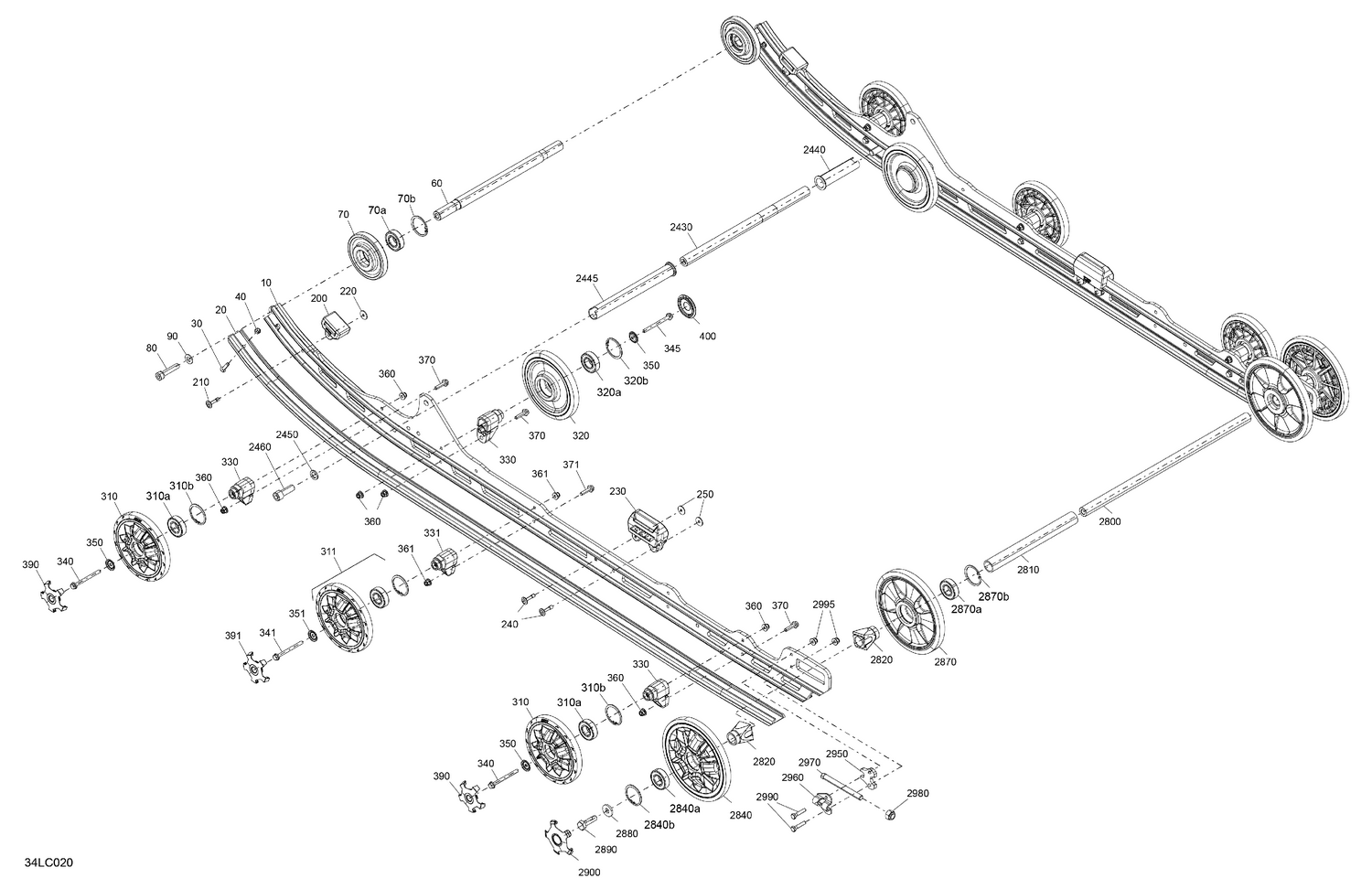

| Ref | Part Number | Description |
|---|
| 1 |
3852421 |
SCREW, Baffle This part replaces 0907768. |
| 2 |
0306407 |
LOCCKWASHER,Cover latch |
| 3 |
0384104 |
PULLEY ASSEMBLY This part replaces 0383932. |
| 4 |
0901465 |
CLAMP, Lead alternator |
| 5 |
0306834 |
BOLT, Throttle lever retainer |
| 7 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 8 |
0306519 |
SCR,Coil clamp |
| 9 |
0308335 |
CLAMP, Coil |
| 10 |
0311415 |
SCREW, Cable clamp |
| 11 |
0314823 |
RETAINER, Cable con |
| 12 |
0907767 |
RING GUARD |
| 13 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 14 |
0310687 |
DETENT SPRING, Anchor block |
| 15 |
0310688 |
SAPCER, Anchor block |
| 16 |
0308238 |
SCERW,Anchor block |
| 18 |
0907912 |
MANIFOLD BRACKET, Anchor |
| 19 |
0310379 |
SCREW |
| 20 |
0908380 |
SCREW |
| 20 |
503195981 |
Slider Shoe |
| 21 |
0979701 |
ADAPTER HOUSING & STUD ASSEMBLY |
| 23 |
0309614 |
DOWEL |
| 25 |
0206421 |
D WASHER |
| 26 |
0303699 |
SCREW |
| 28 |
0908049 |
CAP, Exh. inlet adapter, 245 hp |
| 30 |
0310896 |
SCREW |
| 30 |
208562531 |
Phillips Screw M6 X 25 |
| 31 |
0981654 |
BALLAST RESISTOR This part replaces 0383433. |
| 32 |
0907798 |
ALTERNATOR BRACKET |
| 34 |
0311391 |
SCR,Altnr to brkt |
| 35 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 37 |
0907796 |
BRACE, Alternator |
| 38 |
0383443 |
ALTERNAOR ASSY., Complete |
| 39 |
0311606 |
BELT |
| 40 |
232561434 |
Elastic Stop Nut M6 |
| 42 |
0510338 |
SCREW |
| 43 |
0912531 |
HOSE, Cover This part replaces 0907792. |
| 44 |
0382747 |
LEVER & PIN |
| 44 |
0979881 |
THROTTLE LEVER ASSY |
| 45 |
0907797 |
TUBE, Heat exchange |
| 45 |
0907922 |
TUBE, Heat exchanger |
| 46 |
0306345 |
NUT, Tube |
| 47 |
0306344 |
BALL SLEEVE |
| 49 |
0382132 |
CARBURETOR & BASKET ASSEMBLY |
| 49 |
0979670 |
CARBURETOR ASSEMBLY |
| 50 |
0311555 |
GASKET, carb to mainifold |
| 50 |
0315055 |
GASKET, Carb to adapter |
| 51 |
0306353 |
LKWASH,Brace to pump |
| 51 |
0311388 |
ORING |
| 53 |
0306531 |
NUT, Screw throttle |
| 54 |
0380358 |
FLAME ARRESTOR |
| 54 |
0382878 |
FLAME ARRESTOR |
| 55 |
0310890 |
STUD, Flame arrestor |
| 55 |
0314058 |
CONNECTOR |
| 56 |
3852217 |
COIL ASSY. Ignition This part replaces 0383444. |
| 57 |
0550757 |
L'WASHER,Coil term |
| 58 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 59 |
0311111 |
LIFT BRACKET |
| 60 |
0306861 |
SCREW |
| 60 |
503196070 |
Front Wheel Shaft |
| 62 |
0311549 |
BAIL, Flame arrestor |
| 63 |
0979773 |
FUEL LINE, Pump to carb |
| 63 |
0979885 |
FUEL LINE, Pump |
| 64 |
0310924 |
CLAMP, Main cable to adapter |
| 65 |
0309336 |
L'WASHER, Alternator to bracket |
| 67 |
0311415 |
SCREW, Cable clamp |
| 68 |
0303311 |
SCR,Clamp,eng cable |
| 70 |
0312178 |
SCREW |
| 70a |
503190396 |
Ball Bearing |
| 70b |
415129371 |
Retaining Ring |
| 73 |
0311388 |
ORING |
| 74 |
0907914 |
GASKET, Carburetor adapter to manifold |
| 75 |
0907913 |
ADAPTER, Carb to manifold |
| 76 |
0907915 |
SCREW, Adapter plate to carb |
| 80 |
205504544 |
Socket Screw |
| 90 |
234001410 |
Flat Washer 10 mm |
| 200 |
503193504 |
Rubber Stopper |
| 210 |
293150224 |
Rivet Pop 3/16 |
| 220 |
503191273 |
Washer |
| 230 |
503195028 |
Rubber Stopper |
| 240 |
293150224 |
Rivet Pop 3/16 |
| 250 |
503191273 |
Washer |
| 310a |
503190396 |
Ball Bearing |
| 310b |
415129371 |
Retaining Ring |
| 311 |
503196122 |
Wheel |
| 320a |
503190396 |
Ball Bearing |
| 320b |
415129371 |
Retaining Ring |
| 330 |
503193894 |
Casted Support |
| 331 |
503193894 |
Casted Support |
| 340 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 341 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 345 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 350 |
503191820 |
Wheel Cup M6 |
| 351 |
503191820 |
Wheel Cup M6 |
| 360 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 361 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 370 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 371 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 390 |
503195345 |
Black, Wheel Cap |
| 391 |
503195345 |
Black, Wheel Cap |
| 400 |
503192771 |
Black, Wheel Cap |
| 2430 |
503195279 |
Center Shock Shaft |
| 2440 |
503195044 |
Spacer |
| 2445 |
503195045 |
Spacer |
| 2450 |
503189276 |
Washer |
| 2460 |
205523554 |
Socket Head Screw M12 X 35 |
| 2800 |
503195870 |
Rear Shaft |
| 2810 |
503195871 |
Spacer |
| 2820 |
503190428 |
Rear Wheel Spacer |
| 2840a |
503190396 |
Ball Bearing |
| 2840b |
415129371 |
Retaining Ring |
| 2870a |
503190396 |
Ball Bearing |
| 2870b |
415129371 |
Retaining Ring |
| 2880 |
503190439 |
Washer |
| 2890 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 2900 |
503195348 |
Black, Wheel Cap |
| 2950 |
503193250 |
Spacer |
| 2960 |
503192583 |
Tensioner |
| 2970 |
230100054 |
Hex Screw M10 x 100 |
| 2980 |
233601466 |
Elastic Locking Nut M10 |
| 2990 |
207063054 |
Hex. Cap Screw M6 X 30 |
