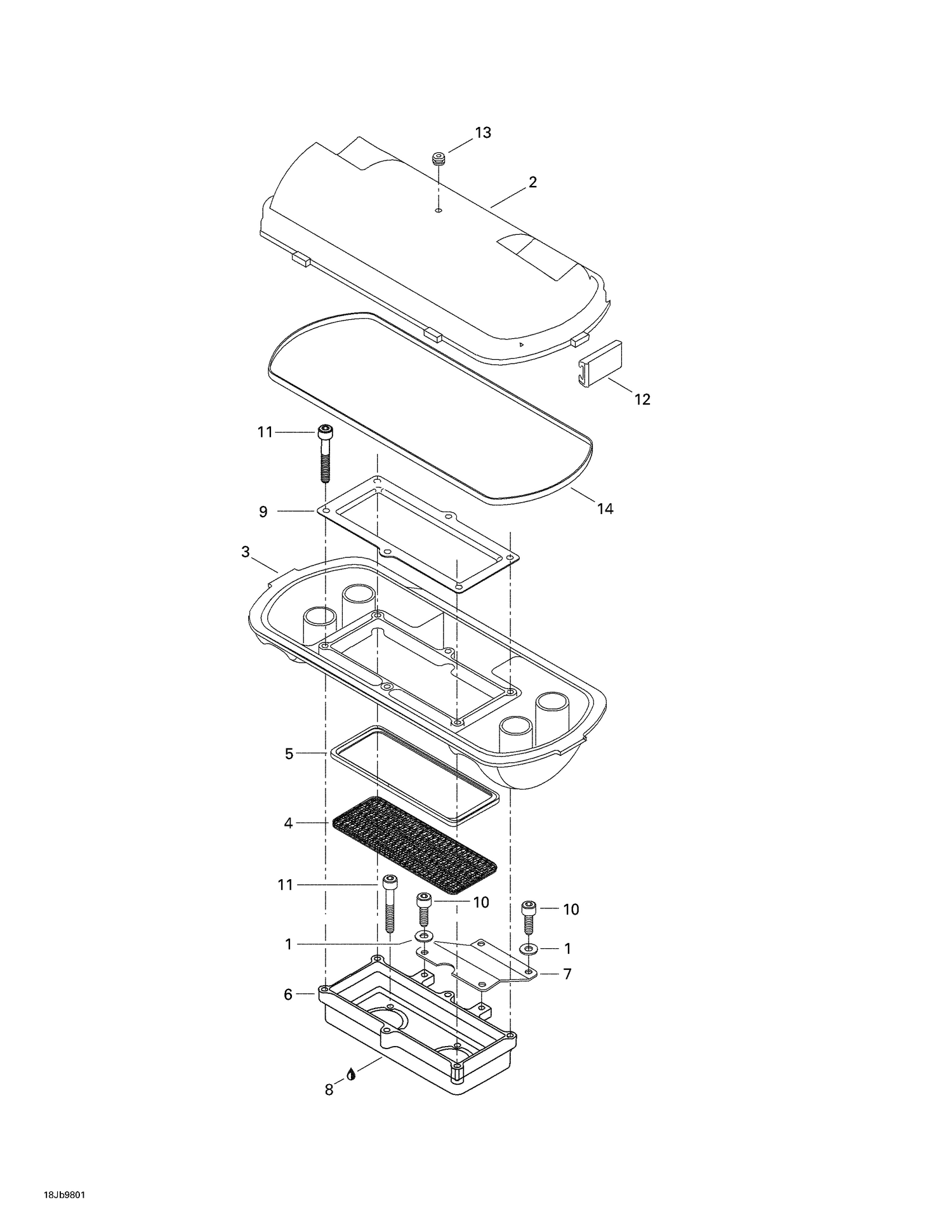

| Ref | Part Number | Description |
|---|
| 1 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 2 |
273000115 |
AIR SILENCER COVER - Call your local BRP dealership This part replaces 273000065. |
| 3 |
273000103 |
AIR SILENCER BASE - Call your local BRP dealership |
| 4 |
273000118 |
Flame Arrester |
| 5 |
273000020 |
ISOLATOR - Call your local BRP dealership |
| 6 |
273000022190 |
Housing Arrester (Double Intake) |
| 7 |
270000412 |
Support |
| 9 |
273000059 |
HOLDER PLATE - Call your local BRP dealership |
| 10 |
205561260 |
Socket Head Screw M6 X 12, Scotch Grip This part replaces 211000177. |
| 11 |
205562560 |
Socket Head Screw M6 X 25, Scotch Grip This part replaces 211000175. |
| 12 |
273000006 |
Retainer Clip |
| 13 |
293830005 |
Rubber Bumper |
