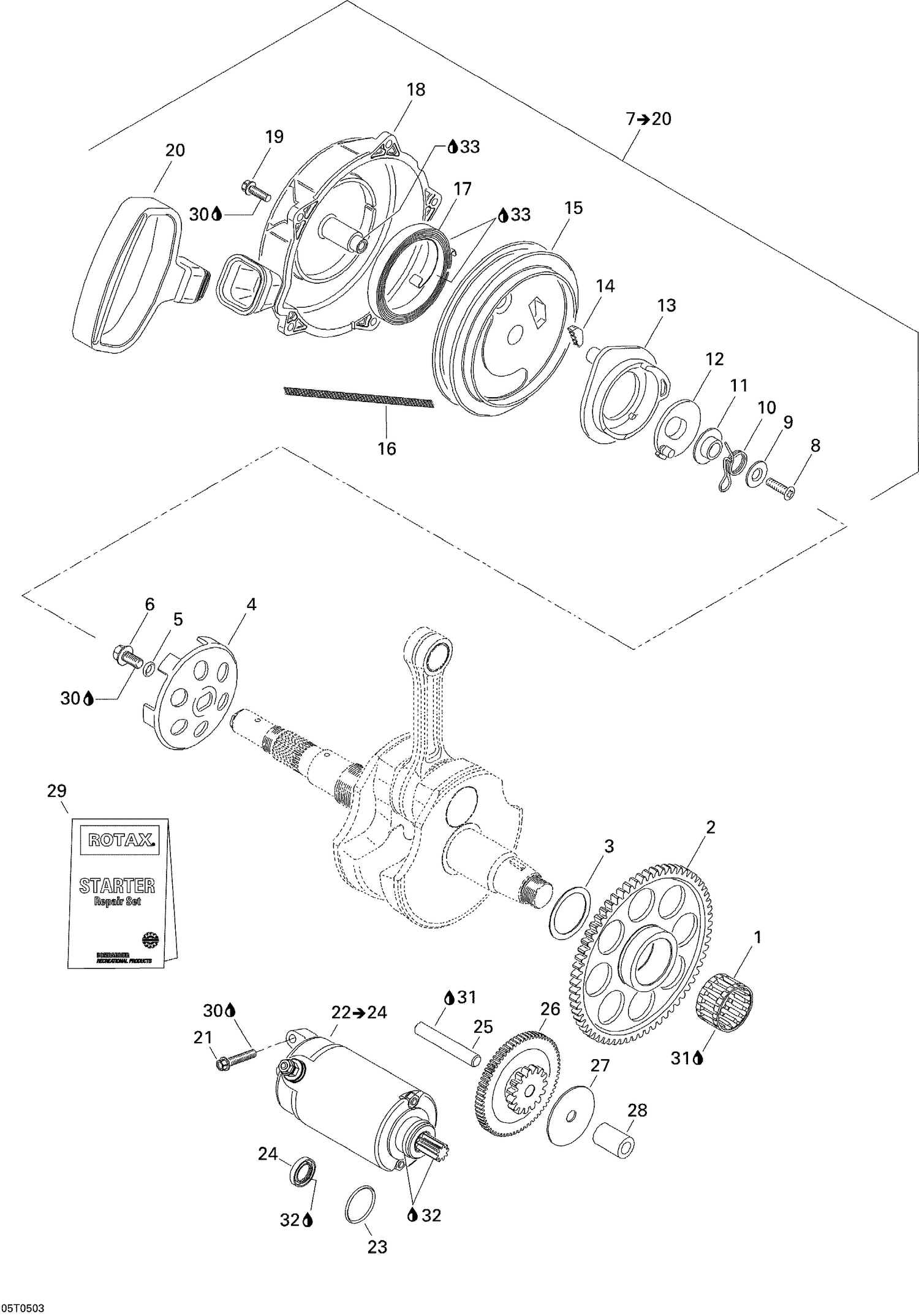

| Ref | Part Number | Description |
|---|
| 1 |
420632190 |
NEEDLE CAGE - Call your local BRP dealership |
| 2 |
420634941 |
Ring Gear 65 Teeth |
| 3 |
420244290 |
THRUST WASHER - Call your local BRP dealership |
| 4 |
420852501 |
Starting Pulley |
| 5 |
420650710 |
O-Ring |
| 6 |
420241720 |
HEX. FLANGED SCREW M8 X 20 - Call your local BRP dealership |
| 8 |
420241730 |
PLASTITE SCREW M6 X 20 - Call your local BRP dealership |
| 9 |
420244320 |
Flat Washer |
| 10 |
420938989 |
Locking Spring |
| 11 |
420847927 |
STAGE SLEEVE - Call your local BRP dealership |
| 12 |
420852306 |
Lock Pawl |
| 13 |
420852299 |
Pawl |
| 14 |
420852070 |
Key Clamp |
| 15 |
420852283 |
Rope Sheave |
| 16 |
219704403 |
Was 412500100 Rope-Starter |
| 17 |
420939115 |
Rewind Spring |
| 18 |
420610930 |
Starter Rope Housing |
| 19 |
420241861 |
HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership |
| 20 |
420852515 |
STARTING GRIP - Call your local BRP dealership |
| 21 |
420241941 |
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership |
| 23 |
420250140 |
O-Ring |
| 24 |
420250130 |
Oil Seal |
| 25 |
420229475 |
Needle Pin This part replaces 420229470. |
| 26 |
420634970 |
DOUBLE GEAR 15/67 TEETH - Call your local BRP dealership |
| 27 |
420227620 |
THRUST WASHER - Call your local BRP dealership |
| 28 |
420847485 |
SPACER - Call your local BRP dealership |
| 29 |
420266295 |
BRUSH KIT - Call your local BRP dealership |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
| 32 |
420899271 |
Petamo Grease, GHY133N, 400 g |
