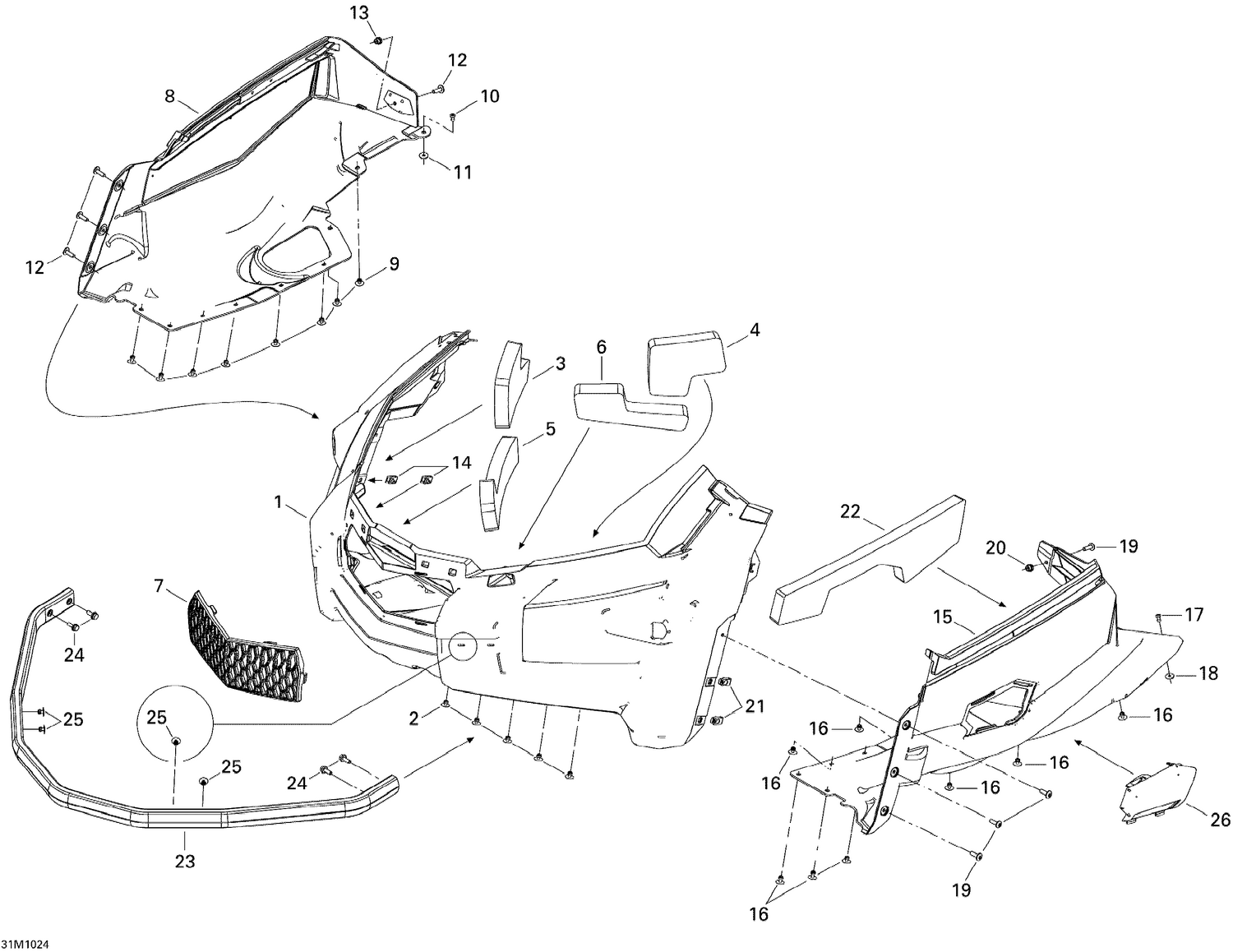

| Ref | Part Number | Description |
|---|
| 1 |
502007361 |
Black, Bottom Pan This part replaces 502006964. |
| 2 |
293150104 |
Pop Rivet 3/16" |
| 3 |
502007204 |
RH Upper Bottom Pan Foam This part replaces 502007040. |
| 4 |
502007205 |
LH Upper Bottom Pan Foam This part replaces 502007041. |
| 5 |
502007206 |
RH Lower Bottom Pan Foam This part replaces 502007042. |
| 6 |
502007207 |
LH Lower Bottom Pan Foam This part replaces 502007043. |
| 7 |
502006887 |
Botton Pan Grille |
| 8 |
502006965 |
Black RH Bottom Pan |
| 9 |
293150104 |
Pop Rivet 3/16" |
| 10 |
390402300 |
Pop Rivet 3/16" |
| 11 |
517124300 |
Washer |
| 12 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 13 |
293450275 |
Insert This part replaces 415107300. |
| 14 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 15 |
502006966 |
Black LH Bottom Pan |
| 16 |
293150104 |
Pop Rivet 3/16" |
| 17 |
390402300 |
Pop Rivet 3/16" |
| 18 |
517124300 |
Washer |
| 19 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 20 |
293450275 |
Insert This part replaces 415107300. |
| 21 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 22 |
502007208 |
LH Bottom Pan Foam This part replaces 502007044. |
| 23 |
502006963 |
Anodized - Front Bumper |
| 24 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 25 |
293150104 |
Pop Rivet 3/16" |
