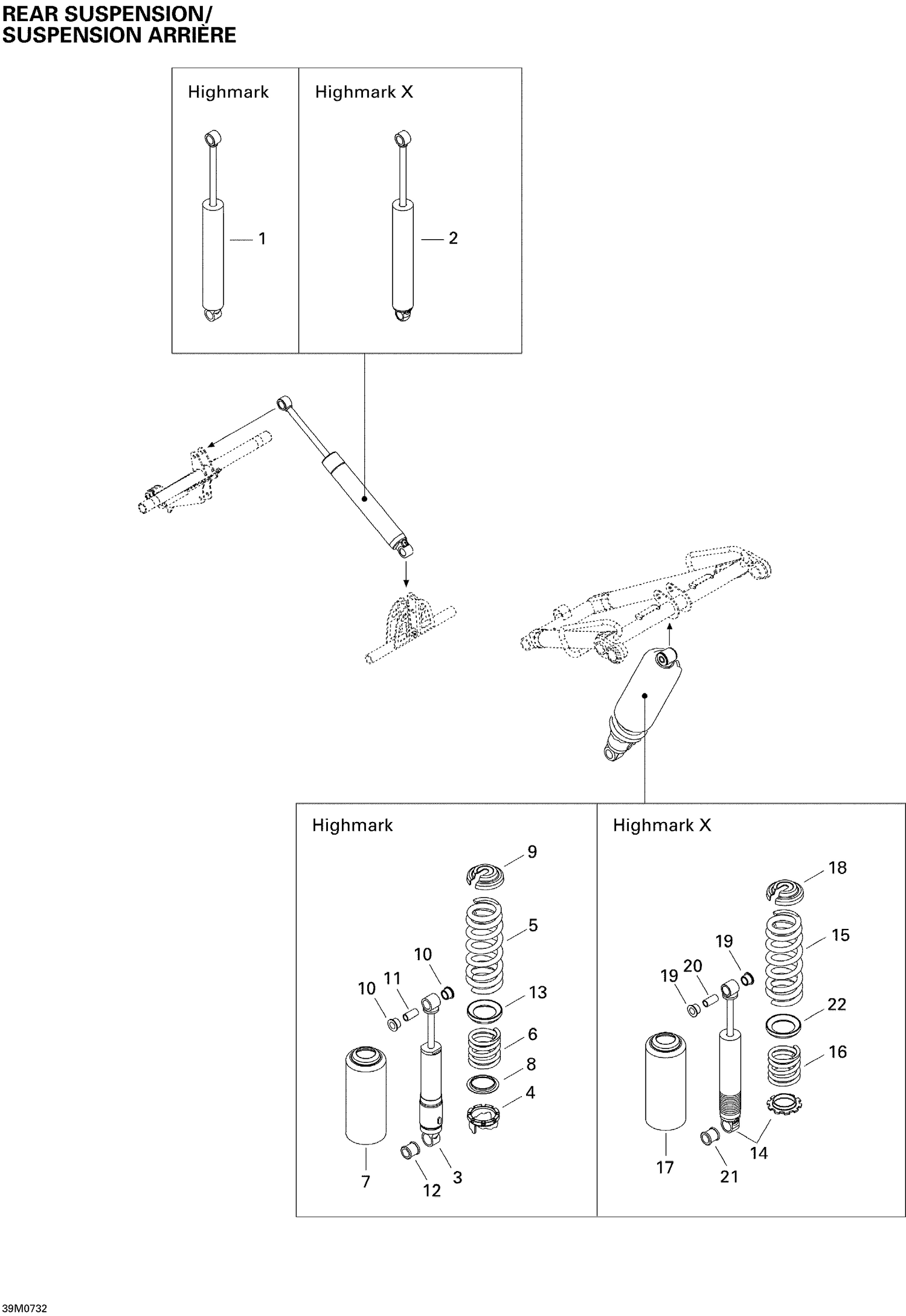

08- Rear Suspension Shocks
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503190977 | REAR SHOCK - Call your local BRP dealership |
| 3 | 503190981 | Center Shock |
| 4 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 5 | 503190854 | Spring |
| 6 | 503190982 | Spring |
| 7 | 503193663 | Protector This part replaces 503188930. |
| 8 | 503191872 | Spring Guide This part replaces 517184300. |
| 9 | 706200881 | Spring Stopper This part replaces 503140600. |
| 10 | 503189117 | Urethane Bushing |
| 11 | 503189282 | Bushing |
| 12 | 503189271 | Bushing |
| 13 | 505071685 | Spring Spacer |
