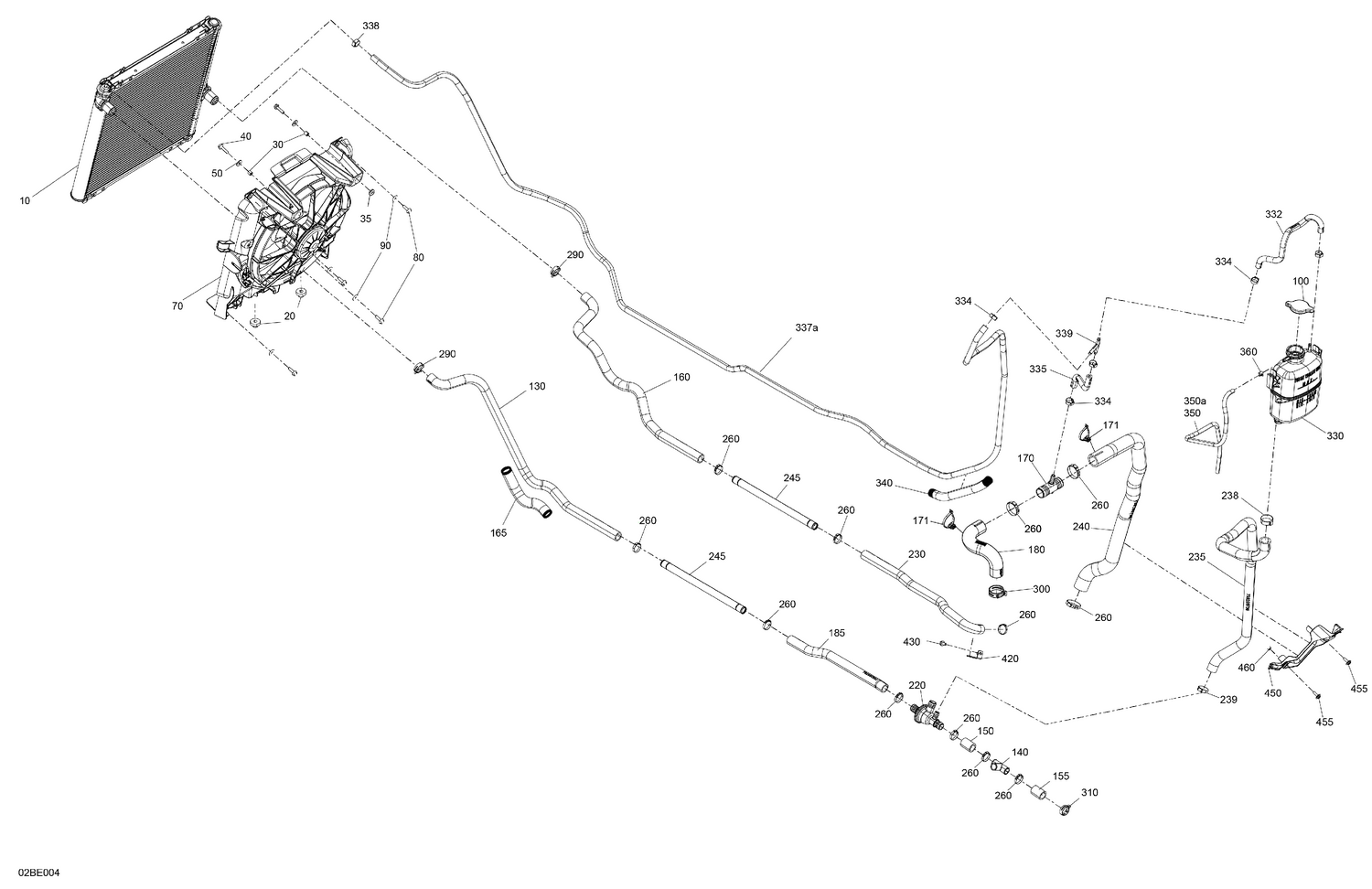

02- Engine - Cooling — Parts Catalog

Ref	Part Number	Description
10	709200703	Radiator
20	709200948	Grommet
30	293900105	Bushing
35	293720130	Overmolded Grommet
40	207662544	Hex. Flange Screw M6 X 25
50	234062410	Flat Washer 6 mm
70	709200665	Fan Ass'y
80	207662044	Hex. Flange Screw M6 X 20
90	234062410	Flat Washer 6 mm
100	709200207	Radiator Pressure Cap
130	709200793	Radiator Inlet hose
140	509001313	T-Fitting
150	709200672	Pump Hose
155	709200672	Pump Hose
160	709200797	Radiator Outlet Hose
165	219704428	Tubing 35 MM 1000MM Long
170	509000510	T-Fitting
171	293750108	Tie Wrap
180	709200800	Hose
185	709200794	Intermediate Inlet Hose
220	709200967	Thermostat Housing
230	709200795	Radiator Hose
235	709201493	Coolant Tank Hose
238	293650165	Oetiker Gear Clamp
239	509000442	Oeticker Gear Clamp, 25.6-706R
240	709200796	Thermostat Inlet Hose
245	709200664	Heater Tubing
260	509000162	Gear Clamp
290	293650166	Norma Spring Clamp
300	293650166	Norma Spring Clamp
310	293650166	Norma Spring Clamp
330	709201323	Coolant Tank
332	709200799	Bleeding Hose
334	293650047	Crimp Clamp, 15.3-706R
335	709200717	Bleeding Hose
337a	219704547	Hose 6,35 Mm Id 4000Mm Long
338	293650042	Oetiker Clamp
339	293710059	Y-Fitting
340	219704408	Tubing 16 Mm 1000Mm Long
350a	219704389	Polyurethane Hose 4000MM Long
360	414554800	Spring Clamp
420	709201348	Hose Support
430	207581644	Hex. Flange Screw M8 X 16, Scotch Grip
450	709200746	Support
455	250000959	Screw PT Type K-50 X 16
